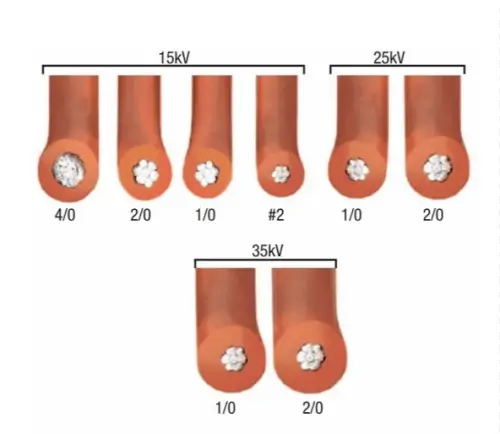

Conductors: Annealed flexible stranded tin coated in accordance with ASTM B 33 and ASTM B-173
Separator: Semi-conducting tape separator between the conductor and insulation
Insulation: Ethylene-propylene rubber (EPR)
Outer jacket: A synthetic thermosetting CPE compound
Color of outer jacket: Red
Features: Excellent flexibility. Water resistant. Temperature range –40ºC to +90 ºC. Ink jet printed for easy identification.
Application: Suitable as a flexible power lead for temporary connections. Other industrial applications
Voltage: 5/15KV
Conductors: Flexible stranded soft drawn copper, per ASTM.
Insulation: Heat and moisture resistant 175mil thick ethylene propylene (EPR) insulation.
Jacket: Heavy duty chlorinated polyethylene (CPE), which is sunlight, oil and moisture resistant. The jacket is available in either red or black.
Standards: ASTM B-172 ICEA S-75-381
Application: 5/15KV Jumper-Exciter Transformer Lead Wire is primarily used for flexible power leads, which permit temporary connections or bypassing energized power lines at voltages up to 15KV, phase to phase. These lead wires must be positioned away from contact with grounds, transformer cases, cross-arms, etc., to avoid possible high stress and capacitance leakage due to the jumper is not protected against prolonged contact with other conductors or grounds by shielding. The cable is rated for temperatures of -40°C to 90°C.
5kV/15kV Jumper Cable Data Sheet
| Size | Conductor Strand | Nominal Insulation Thickness | Nominal Jacket Thickness | Outside Diameter | Approx. | Weight | Ampacity(1) At 40°C Ambient Temp. |
| AWG | inches | inches | inches | kg/km | lbs/1000ft | A | |
| 2 | 259 | 0,175 | 0,08 | 0,823 | 715 | 480 | 195 |
| 1/0 | 414 | 0,175 | 0,08 | 0,898 | 952 | 640 | 255 |
| 2/0 | 522 | 0,175 | 0,08 | 0,945 | 1113 | 748 | 293 |
| 4/0 | 829 | 0,175 | 0,08 | 1071 | 1565 | 1052 | 389 |
| 250 | 973 | 0,175 | 0,08 | 1144 | 1795 | 1206 | 430 |
| 350 | 1361 | 0,175 | 0,08 | 1260 | 2357 | 1584 | 529 |
| 500 | 1921 | 0,175 | 0,08 | 1402 | 3109 | 2089 | 659 |
5kV/15kV jumper transformer lead wire Data Sheet
| Conductor Size | No. of Strands | Overall Diameter | Net Weight | |
| AWG/kcmil | inches | mm | lbs/1000′ | |
| 2 | 259 | 0.82 | 20.83 | 550 |
| 1/0 | 426 | 0.893 | 22.68 | 730 |
| 2/0 | 532 | 0.997 | 25.32 | 850 |
| 4/0 | 852 | 1.14 | 28.96 | 1174 |
| 350 | 1410 | 1.305 | 33.15 | 2220 |
| 500 | 1952 | 1.41 | 35.81 | 2377 |
| 777 | 7581 | 1.565 | 39.75 | 2997 |
| 1550 | 15561 | 1.965 | 49.91 | 5649 |
