Conductor: composed of copper conductors, insulating plastic and steel wire armor.
Cores of number: single core, three core, four core, seven core, etc..
Nominal size of diameter: is divided into: 4.70mm, 3.5mm, 5.60mm, 6.40mm, 8.00mm, 11.8mm, 12.60mm, 13.20mm.
Working temperature: heat grade is divided into: room temperature cable (-30~150 C), high-temperature cable (-50~260 C).
Shielding: total shielding and split phase Shielding plus total shielding.
Corrosion grade is divided into: ordinary steel and hydrogen sulfide type anti falls.
standard: Q/HN039-2014 SY/T6600-2004
package: Iron Or Wooden Drum
Characteristics and Application
For various types of oil, gas well logging, perforation, coring and other operations, can also be used for marine survey, river, harbor. The connection line between the ground system and the underground instrument is used as the link between the ground system and the underground instrument as the link between the ground system and the underground instrument.

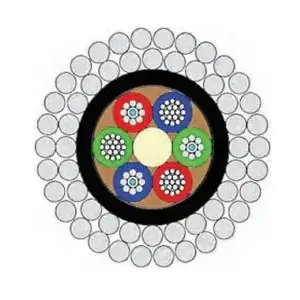

Oil Well Double Armoured Cable for Harsh Environment Detecting
Electro-Optic Tow Cables depths up to 6,000 meters
The cable constructions are designed to endure the demands of the required tow strengths and communications while minimizing diameter requirements. solutions accommodate depths up to 6,000 meters for minesweeping, antisubmarine warfare, sonar, and geophysical applications.

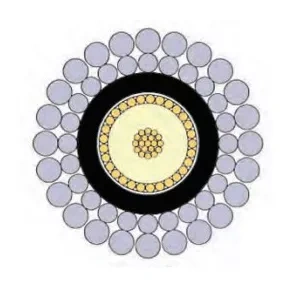

Single & Multi-core Instrumentation Oil Well Cable
These double-armored cables containing multiple conductors in various gauge sizes and constructions are customized for use in oceanographic exploration and are optimized for use in underwater instrumentation, signal transmission, and tow device applications.

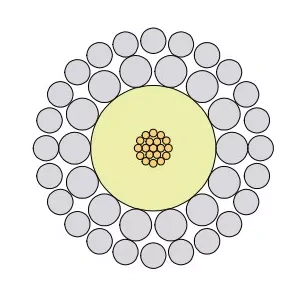

TV Inspection Cables Explore Subterranean Sewer lines
These robust cables are used with mobile closed-circuit TV inspection systems to explore subterranean sewer lines and storm sewers and are offered in multiconductor and armored coaxial constructions.

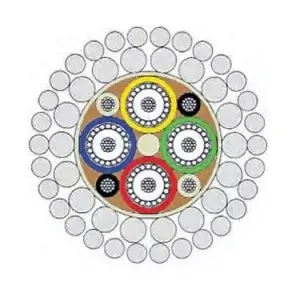

Single and Cabled Armoured Coaxial Oil Well Cables
Coaxial cables are integral for numerous oceanographic uses and provide various telemetry solutions. Oering rugged, superior performance and strength without sacrificing flexibility, these cables are also designed for use in shallow and deep tow applications and for helicopter dipping sonar.
7/32” (5.69 mm) Monoconductor Cable
- Cable Diameter: 0.224” +0.005” – 0.002” (5.69mm +0.13mm -0.05mm)
- Minimum Sheave Diameter: 14” (36cm)
- Cable Stretch Coefficient: 2.2 ft/kft/Klbs (2.5 m/Km/5KN)
- Maximum Conductor Voltage: 1,200 VDC
- Conductor AWG Rating: 16
- Minimum Insulation Resistance: 1,500 MegaΩ/Kft @ 1000VDC (457 Mega Ω/Km @ 1000VDC)
- Armor Electrical Resistance: 4.3 Ω/Kft (14.1 Ω/Km)
5/16″ (8.18 mm) Monoconductor Cable
- Cable Diameter: 0.322″ +0.005″ – 0.002″ (8.18 mm +0.13 mm -0.05mm)
- Minimum Sheave Diameter: 18″ (46 cm)
- Cable Stretch Coefficient: 1.2 ft/Kft/Klbs (1.35 m/Km/5KN)
- Maximum Conductor Voltage: 1,500 VDC
- Conductor AWG Rating: 15
- Minimum Insulation Resistance: 1,500 MegaΩ/Kft @ 1,000 VDC (457 MegaΩ/Km @ 1000VDC)
- Armor Electrical Resistance: 2.1 Ω/Kft (6.9 Ω/Km)
9/32” (7.32 mm) Monoconductor Cable
- Cable Diameter: 0.288” +0.005” – 0.002” (7.32mm + 0.13mm -0.05mm)
- Minimum Sheave Diameter: 16” (41 cm)
- Cable Stretch Coefficient: 1.55 ft/Kft/Klbs (1.74 m/Km/5KN)
- Maximum Conductor Voltage: 1,500 VDC
- Conductor AWG Rating: 15
- Minimum Insulation Resistance: 1,500 MegaΩ/Kft @ 1000VDC (457 MegaΩ/Km @ 1000VDC)
- Armor Electrical Resistance: 2.8 Ω/Kft (9.2 Ω/Km)
The parameter data
7/32” (8.18 mm) Monoconductor Cable
| Core Description | Cable Weight | ||||||
| Temp Rating | Plastic Type | Insulation Thickness | Copper Construction | Res Typical | O.D. Each | In Air | In H2O |
| °F | in | in | Ω/Kft | in | lbs/Kft | ||
| °C | mm | mm | Ω/Km | mm | Kg/Km | ||
| 300* | Poly | 0.042 | 19×0.0142 | 2.8 | 0.155 | 187 | 155 |
| 149* | 1.067 | 19×0.361 | 9.2 | 3.937 | 278 | 230 | |
| 500* | ETFE | 0.0175 | 19×0.0142 | 2.8 | 0.155 | 194 | 160 |
| 260* | 0.445 | 19×0.361 | 9.2 | 3.048 | 288 | 238 | |
| 500* | FEP | 0.0245 | 19×0.0142 | 2.8 | 0.12 | 194 | 160 |
| 260* | 0.622 | 19×0.361 | 9.2 | 3.048 | 288 | 238 | |
7/32” (5.69 mm) Monoconductor
| Core Description | Cable Weight | ||||||
| Temp Rating | Plastic Type | Insulation Thickness | Copper Construction | Res Typical | O.D. Each | In Air | In H2O |
| °F | in | in | Ω/Kft | in | lbs/Kft | ||
| °C | mm | mm | Ω/Km | mm | Kg/Km | ||
| 300* | Poly | 0.0245 | 19×0.0119 | 4.1 | 0.108 | 91 | 75 |
| 149* | 0.622 | 19×0.302 | 13.5 | 2.743 | 136 | 112 | |
| 420* | ETFE | 0.0115 | 19×0.0119 | 4.1 | 0.108 | 92 | 76 |
| 216* | 0.292 | 19×0.302 | 13.5 | 2.743 | 137 | 114 | |
| 420* | TPX | 0.013 | 19×0.0119 | 41 | 0.085 | 92 | 76 |
| 216* | 0.33 | 19×0.302 | 13.5 | 2.159 | 137 | 114 | |
| 500* | ETFE | 0.0115 | 19×0.0119 | 4.1 | 0.108 | 95 | 78 |
| 260* | 0.292 | 19×0.302 | 13.5 | 2.743 | 140 | 116 | |
| 500* | FEP | 0.013 | 19×0.0119 | 4.1 | 0.085 | 95 | 78 |
| 260* | 0.33 | 19×0.302 | 13.5 | 2.159 | 140 | 116 | |
7/32” (7.32 mm) Monoconductor Cable
| Core Description | Cable Weight | ||||||
| Temp Rating | Plastic Type | Insulation Thickness | Copper Construction | Res Typical | O.D. Each | In Air | In H2O |
| °F | in | in | Ω/Kft | in | lbs/Kft | ||
| °C | mm | mm | Ω/Km | mm | Kg/Km | ||
| 500* | ETFE | 0.019 | 19×0.0142 | 2.8 | 0.136 | 157 | 130 |
| 260* | 0.483 | 19×0.361 | 9.2 | 3.454 | 234 | 234 | |
| 500* | FEP | 0.0135 | 19×0.0142 | 2.8 | 0.098 | 157 | 130 |
| 260* | 0.343 | 19×0.361 | 9.2 | 2.489 | 234 | 193 | |
| 300* | Poly | 0.0325 | 19×0.0142 | 2.8 | 0.136 | 152 | 126 |
| 149* | 0.826 | 19×0.361 | 9.2 | 3.454 | 226 | 187 | |
| 420* | Camtane | 0.0135 | 19×0.0142 | 2.8 | 0.098 | 155 | 128 |
| 216* | 0.343 | 19×0.361 | 9.2 | 2.489 | 230 | 190 | |
| 420* | ETFE | 0.019 | 19×0.0142 | 2.8 | 0.136 | 155 | 128 |
| 216* | 0.483 | 19×0.361 | 9.2 | 3.454 | 230 | 190 | |
Electro-Optic Tow Cables
| Diameter | Breaking Strength | Weight in Water | Conductors | DC Resistance | Fibers | ||||
| mm | in | kN | lbf | kg/km | lb/kft | Ω/km | Ω/kft | ||
| 17.3 | 1.111 | 205.205 | 46000 | 905 | 608 | 3 | 5.5 | 2.2 | 3 SMF |
| 13.72 | 1.111 | 98.98 | 22000 | 571 | 384 | 3 | 12.12 | 4.4 | 3 MMF |
| 18.26 | 1.111 | 214.214 | 48000 | 984 | 661 | 2 | • | • | 1 SMF |
| 11.07 | 0 | 64.64 | 14500 | 332 | 223 | 3 | 24.24 | 7.7 | 3 MMF |
Multi-Conductor Instrumentation Oil Well Cables
| Diameter | Breaking Strength | Weight in Air | Conductors | Voltage Rating | |||
| mm | in | kN | lbf | kg/km | lb/kft | ||
| 4.72 | 0 | 15.15 | 3300 | 89 | 60 | 4 | 400 |
| 6.35 | 0 | 26.26 | 5800 | 159 | 107 | 4 | 600 |
| 6.35 | 0 | 26.26 | 5800 | 161 | 108 | 7 | 500 |
| 9.45 | 0 | 57.57 | 12800 | 362 | 243 | 7 | 600 |
TV Inspection Cables
| Diameter | Breaking StrengthBreaking Strength | Weight in Water | Description | |||
| mm | in | kN | lbf | kg/km | lb/kft | |
| 15.11 | 1.111 | 29.29 | 6600 | 454 | 305 | Multiconductor |
| 7.37 | 0 | 30.3 | 6800 | 198 | 133 | Armored Coax |
| 13.92 | 1.111 | 9.9 | 2000 | 270 | 181 | Multiconductor |
| 11.18 | 0 | 17.17 | 3800 | 189 | 127 | Multiconducto |
