APPLICATION

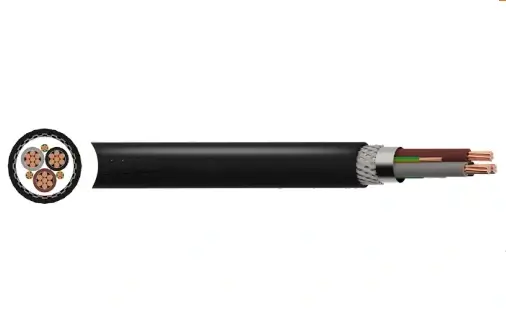

The cable has been developed for connecting motors to inverse rectifiers under consideration of EMC (electromagnetic compatibility) requirements. It may be used under medium mechanical stress for fixed installations and temporary movement. This cable offers a good resistance against oil and grease. Suitable for outdoor installation but not direct burial.
Voltage: 0.6/1kV
Conductor: Class 5 flexible copper conductor
Insulation: PE (Polyethylene)
Screen: Aluminium-Foil
Braid: TCWB (Tinned Copper Wire Braid)
Sheath: PVC
Core Identification:
3 core + earth: Grey Brown Black Green/Yellow
4 core: Grey Brown Black Green/Yellow
Sheath Colour: Black
STANDARDS: Flame Retardant according to IEC/EN 60332-1-2
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL WEIGHT kg/km | |
| Power Conductor | Earth Conductor | ||
| 3+3earth | 1.5 | 0.25 | 140 |
| 3+3earth | 2.5 | 0.5 | 220 |
| 3+3earth | 4 | 0.75 | 323 |
| 3+3earth | 6 | 1 | 420 |
| 3+3earth | 10 | 1.5 | 615 |
| 3+3earth | 16 | 2.5 | 819 |
| 3+3earth | 25 | 4 | 1402 |
| 3+3earth | 35 | 6 | 1718 |
| 3+3earth | 50 | 10 | 2399 |
| 3+3earth | 70 | 10 | 3173 |
| 3+3earth | 95 | 16 | 4162 |
| 3+3earth | 120 | 16 | 5253 |
| 3+3earth | 150 | 25 | 6128 |
| 3+3earth | 185 | 35 | 7450 |
| 3+3earth | 240 | 50 | 10800 |
| 4 | 1.5 | － | 154 |
| 4 | 2.5 | － | 229 |
| 4 | 4 | － | 339 |
| 4 | 6 | － | 451 |
| 4 | 10 | － | 667 |
| 4 | 16 | － | 892 |
| 4 | 25 | － | 1440 |
| 4 | 35 | － | 1861 |
| 4 | 50 | － | 2547 |
| 4 | 70 | － | 3404 |
| 4 | 95 | － | 4888 |
| 4 | 120 | － | 5703 |
| 4 | 150 | － | 7040 |
| 4 | 185 | － | 9150 |
| 4 | 240 | － | 12500 |
