Marine Shipbord & Offshore Power, Type P, Type VFD, BFOU/RFOU Instrument & Control, Telecommunication Cables

Huadong cable manufacture and supplies marine cables are meticulously created and compliant with IEC 60092, JIS C3410 standards and approved by ABS, BV, RINA, DNV-GL, LR, NK certificates, etc. Guarantee for higher efficiency and protection.

Marine cable also called shipboard cable or ship cable is a general circuit marine wiring. It is used for data transfer, electrical, power, control purposes, critical instrumentation signals, etc. This cable is specially created to withstand the generally hostile sea environments such as cold, humidity, saltwater corrosion, oil, vibration, and more. It is a great choice for the marine environment since they are halogen-free, low smoke, flame retardant, and has fire-resistant features. High and very low temperatures can be handled by marine cable.

JIS C 3410-1999 cable is Japanese industrial standard, popular used in Southeast Asia Countries like Singapore, Indonesia, Malaysia, Thailand, Vietnam, etc.

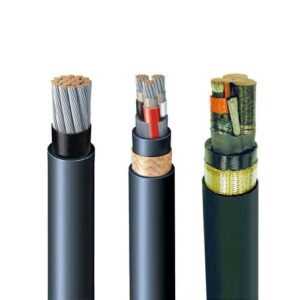

0.6/1kV, 2KV, 5kV, 8kV, 15kV Fire-Resistance Marine Power Cable

sales@huadongcablegroup.com

Voltage: 0.6/1kV , 2kV, 5kV, 8kV, 15kV
Cores: 0.6/1kV or 2kV:1-5 cores; 5kV, 8kV, 15kV: 3 core
Conductor: flexible stranded tinned annealed copper wire
Insulation: XLPO/ EPR(100%; 133% Insulation levels)
Armored: copper wire braid (Armoring depends on customer needs)
Jacket/Sheath: NBR(Neoprene Type N)
Standards: IEC 60092-376,IEC 60092-350,IEC 60331; IEC 60332-3-22, IEC 60754, IEC 61034
Features: Resistant Oil, abrasion, moisture, petrochemical and sunlight.

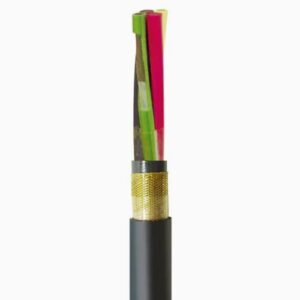

Type P Oil Drilling Flexible Fire Resistance Marine Cable

sales@huadongcablegroup.com

Conductor: Tinned Copper (Class 5)
Insulation: Flame Retardant Polyolefin
Inner Sheath: Chemical And Sunlight Resistant Thermosetting Compound
Armor(Optional): Tinned Copper Basket Weave Wire
Sheath(Optional): Chemical And Sunlight Resistant Thermosetting Compound
Application: Designed and Constructed for the Demanding Environments of Offshore Drilling and Petroleum Facilities Located Throughout the World
Features: Super Flexible,Higher Insulation Resistance,Excellent Moisture Resistance,Flame Retardant

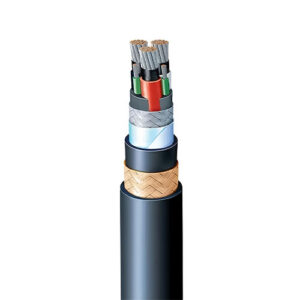

Type VFD Braid Shield Flexible Marine Cable

sales@huadongcablegroup.com

Voltage: 2kV
Conductor: tinned copper class 5
Cores: 3+3
Size: 3G x 4~18AWG
Insulation: XLPO
Ground Conductor: Tinned Copper wire
Overall Braid shield: tinned copper wire
Armoured: bronze wire braid
Jacket/Sheath: NBR(Neoprene Type N)
Features: Resistant Oil, abrasion, moisture, and sunlight.

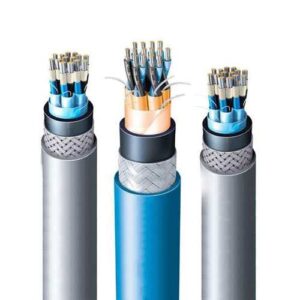

BFOU(i-c)/RFOU(i-c) Marine Fire Resistance Insturmentation Cable

sales@huadongcablegroup.com

Voltage: 0.6/1kV
Size: 14~18AWG
Pairs: 2~24 Pairs or
Conductor: flexible stranded tinned annealed copper wire
Insulation: XLPO
Individual shield: AL/PS Tape W/Tinned Copper drain wire
Overall shield: AL/PS Tape W/Tinned Copper drain wire
Outer Sheath: NBR(Neoprene Type N)
Features: Resistant Oil, abrasion, moisture, petrochemical and sunlight.
Application: Designed for the demanding environments of offshore drilling and petroleum facilities

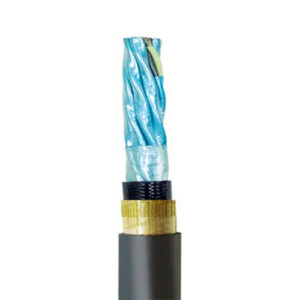

Marine Shield Control Cable

sales@huadongcablegroup.com

Voltage: 0.6/1kV
Size: 14~18AWG
Pairs: 1~24 Pairs or
Conductor: Tinned copper class 5
Pairs: tinned drain wire and polyester-backed aluminum foil tap
Insulation: Flame retardant polyolefin
Individual shield: AL/PS Tape W/Tinned Copper drain wire
Armored: Tinned copper basket weave wire
Outer Sheath: thermosetting compound
Application: Designed for the demanding environments of offshore drilling and petroleum facilities

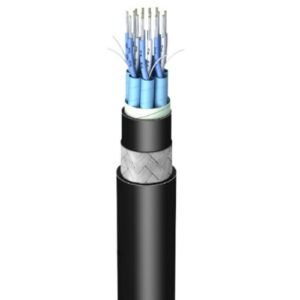

Marine Telecommunication & Signal Fire Rsitance Shield Cable

sales@huadongcablegroup.com

Voltage: 0.6/1kV
Conductor: Flexible tinned copper wire Class 5
Cores: 2~60 cores
Size: 16~18AWG
Insulation: XLPO
Shield: AL/PS Tape W/Tinned Copper drain wire
Jacket/Sheath: NBR(Neoprene Type N)
Features: Resistant Oil, abrasion, moisture, and sunlight.

This is part of the data sheet of our ship cables. Didn’t find the cable data you need? If not, please send us an email: sales@huadongcablegroup.com and our manager will get back to you as soon as possible

0.6/1 kV Marine Power Cable Parameter

Size		Unarmored		Armored (B)		Armored and Sheath (BS)		Ampacity
AWG	mm2	Diameter (inches)	Weight (lbs/ MFt.)	Diameter (inches)	Weight (lbs/ MFt.)	Diameter (inches)	Weight (lbs/ MFt.)	110℃	100℃	95℃
16	1.3	0.402	97	0.452	160	0.62	222	17	16	16
14	2.1	0.438	126	0.488	196	0.65	262	27	25	22
12	3.3	0.486	170	0.536	247	0.668	319	33	31	27
10	5.2	0.585	267	0.635	361	0.788	458	44	41	36
8	7.6	0.71	375	0.76	489	0.93	668	56	52	48
6	12.5	0.795	563	0.845	661	1.04	872	75	70	64
4	21	1.04	898	1.1	1066	1.295	1272	99	92	85
2	34	1.191	1358	1.241	1476	1.472	1734	131	122	113
1	43	1.37	1732	1.42	1817	1.61	2222	153	143	131
1/0	54	1.47	2042	1.52	2278	1.775	2642	176	164	152
2/0	70	1.61	2715	1.66	2807	1.914	3441	201	188	175
3/0	86	1.786	3234	1.836	3333	2.103	3781	234	218	202
4/0	109	1.985	4043	2.035	4376	2.304	4957	270	252	235

Get a free quote by e-mail: sales@huadongcablegroup.com

5kV 3 Core Marine Power Cable Parameter

Size		Unarmored		Armored & Sheathed (BS)		Ampacity
AWG/kcmil	mm2	Diameter (inches)	Weight (Lbs./ 1000 ft.)	Diameter (inches)	Weight (Lbs./ 1000 ft.)	In Free Air (amps)
6	12.5	1.294	918	1.539		88
4	21	1.469	1252	1.773	1371	116
2	34	1.615	1620	1.935	1847	152
1	43	1.746	1942	2.045	2299	175
1/0	54	1.845	2257	2.149	2646	201
2/0	70	1.996	2744	2.3	2994	232
3/0	86	2.081	3110	2.398	3540	266
4/0	109	2.222	3714	2.539	3966	306
262	132	2.41	4486	2.789	4614	348
313	159	2.488	4599	2.867	5614	386
373	189	2.659	5825	3.038	5760	429
444	227	2.892	6946	3.27	7061	455
535	273	3.036	7961	3.415	8297	528
646	326	3.249	9274	3.627	9317	584

Get a free quote by e-mail: sales@huadongcablegroup.com

2kV 3+3 Core Marine VFD Cable Parmater

Size		Nominal Diameter (Inches)	Weight (Lbs./ 1000 Ft.)	Ampacity
AWG/kcmil	mm2	Nominal Diameter (Inches)	Weight (Lbs./ 1000 Ft.)	In Free Air (Amps)	Single Banked in Trays (Amps)
6	12.5	1.815	1814	88	75
4	21	2.028	2391	116	99
2	34	2.174	2879	152	129
1	43	2.29	3387	175	149
1/0	54	2.356	3551	201	171
2/0	70	2.477	4053	232	197
3/0	86	2.588	4609	266	226
4/0	109	2.815	5393	306	260
262	132	2.968	6218	348	296
313	159	3.166	7126	386	328
373	189	3.289	8121	429	365
444	227	3.437	9035	455	387
535	273	3.735	10585	528	449

Get a free quote by e-mail: sales@huadongcablegroup.com

0.6/1kV Marine Pairs Instrumentation Cable Parmater

Size	Number	Unarmored		Armored (B)
AWG	Pairs	Diameter (inches)	Weight (lbs/MFt.)	Nominal Diameter (inches)	Weight (lbs/MFt.)
18	8	0.782	342	0.832	468
18	12	0.99	533	1.04	692
18	16	1.093	661	1.143	843
18	18	1.23	776	1.28	973
18	24	1.442	958	1.492	1194
16	8	0.885	448	0.935	589
16	10	1.03	763	1.08	736
16	12	1.065	631	1.115	808
16	16	1.175	806	1.225	1049
16	18	1.259	901	1.309	1112
16	24	1.472	1120	1.522	1361
14	4	0.736	324	0.786	440
14	5	0.772	392	0.822	515
14	8	0.956	548	1.006	736
14	12	1.205	851	1.255	1037

Get a free quote by e-mail: sales@huadongcablegroup.com

0.6/1kV Marine Triads Instrumentation Cable Parmater

Size	Number	Unarmored		Armored (B)
AWG	Pairs	Nominal Diameter (inches)	Weight (lbs/MFt.)	Nominal Diameter (inches)	Weight
18	1	0.354	69	0.404	160
18	2	0.649	204	0.702	303
18	3	0.703	236	0.753	345
18	4	0.775	316	0.825	398
18	5	0.889	353	0.939	497
18	7	0.957	461	1.007	614
18	8	1.025	589	1.075	735
18	12	1.221	792	1.271	990
16	1	0.376	81	0.426	206
16	3	0.76	366	0.81	411
16	4	0.82	410	0.87	457
16	6	0.95	628	1	791
16	7	1.029	524	1.079	688
16	8	1.108	684	1.158	793

Get a free quote by e-mail: sales@huadongcablegroup.com

0.6/1kV Marine Control Cable Parmater

Size	Number	Unarmored		Armored (B)
AWG	Conductors	Diameter (inches)	Weight (lbs/MFt.)	l Diameter (inches)	Weight (lbs/MFt.)
16	8	0.581	202	0.631	289
16	10	0.635	251	0.685	322
16	16	0.72	333	0.77	441
16	20	0.786	382	0.836	514
16	24	0.9	549	0.95	646
14	10	0.69	327	0.74	403
14	12	0.714	356	0.764	449
14	14	0.76	417	0.81	549
14	20	0.935	598	0.985	708
14	24	1.025	721	1.075	829
12	4	0.516	201	0.566	247
12	5	0.561	226	0.611	315
12	6	0.611	282	0.661	397
12	10	0.77	434	0.82	509
12	20	1.02	805	1.07	942
12	24	1.135	1033	1.185	1162

Get a free quote by e-mail: sales@huadongcablegroup.com

Marine/Shipboard/Ship VFD Cable

Number of Conductors×Size (mm²)	Nominal Outer Diameter (mm)	Gross Weight (kgs/km)	Number of Conductors×Size (mm²)	Nominal Outer Diameter (mm)	Gross Weight (kgs/km)	Number of Conductors×Size (mm²)	Nominal Outer Diameter (mm)	Gross Weight (kgs/km)
1×4	7.5	203	3×2.5	11.0	213	3×2.5+3×1	12.7	289
1×6	8.8	256	3×4	12.2	274	3×4+3×1	14.2	387
1×10	9.8	363	3×6	14.0	380	3×6+3×1.5	15.3	480
1×16	11.0	447	3×10	16.0	542	3×10+3×2.5	17.5	657
1×25	13.2	582	3×16	18.5	767	3×16+3×4	20.2	931
1×35	15.0	713	3×25	22.5	1135	3×25+3×6	23.4	1327
1×50	17.5	943	3×35	25.0	1450	3×35+3×6	25.0	1614
1×70	19.2	1208	3×50	28.5	1926	3×50+3×10	29.0	2213
1×95	21.2	1521	3×70	32.5	2562	3×70+3×16	33.0	3040
1×120	23.5	1865	3×95	37.2	3548	3×95+3×16	37.2	3970
1×150	25.8	2249	3×120	42.5	4384	3×120+3×25	42.5	5072
1×185	28.0	2706	3×150	46.4	5400	3×150+3×25	46.4	6061
1×240	31.2	3391	3×185	51.8	6650	3×185+3×35	51.8	7534
1×300	34.0	4280	3×240	57.8	8545	3×240+3×50	57.8	9768
/	/	/	3×300	63.8	10467	3×300+3×50	63.8	11691

Get a free quote by e-mail: sales@huadongcablegroup.com

Flexible Cable Marine

NO. of Cores	Conductor Size/mm²		Overall Diameter/mm		Approx. Weight
NO. of Cores	mm²	NO./mm	mm	±mm	kgs/km
2	0.75	24/0.2	9.7	0.4	130
	1	32/0.2	9.9	0.4	135
	1.5	30/0.25	10.8	0.4	165
	2.5	49/0.25	11.8	0.5	205
	4	55/0.3	13.1	0.5	265
	6	82/0.3	14.5	0.6	340
3	0.75	24/0.2	10.2	0.4	145
	1	32/0.2	10.7	0.4	160
	1.5	30/0.25	11.4	0.5	190
	2.5	49/0.25	12.5	0.5	240
	4	55/0.3	14.1	0.6	325
	6	82/0.3	15.6	0.6	420
4	0.75	24/0.2	11.3	0.5	180
	1	32/0.2	11.8	0.5	200
	1.5	30/0.25	12.6	0.5	235
	2.5	49/0.25	14.1	0.6	310
	4	55/0.3	15.6	0.6	410
	6	82/0.3	17.2	0.7	525

Get a free quote by e-mail: sales@huadongcablegroup.com
