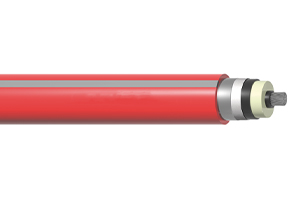

1. Conductor: Aluminum, class 2 according with the UNE-EN 60228 standard; IEC 60228.
2. Conductor Screen: Extruded semiconductor.
3. Insulation: Cross-linked polyethylene (XLPE).
4. Insulation Screen : Cold peelable extruded semiconductor.
5. Shielding: Copper wire screen
6. Water resistant: Longitudinal lock with hydro-expanding tape.
7.Sheath: DMZ2 type LSOH polyolefin, red with two gray stripes.
Application: Can be installed outdoors on trays or buried directly/in duct.
1. Conductor: Aluminium, class 2 according to EN 60228; IEC 60228.
2. Conductor Screen: Extruded semiconductor.
3. Insulation: Cross-linked polyethylene (XLPE).
4. Insulation Screen : peelable extruded semiconductor.
5. Water resistant:Longitudinal lock with hydro-expandable tape.
6. Shielding: Longitudinal aluminum strip.
7.Sheath: Polyolefin Ls0H type DMZ2. red with two rich gray ones.
Application: Can be installed outdoors on trays or buried directly/in duct.
1. Conductor:Aluminum, class 2 according with the UNE-EN 60228 standard; IEC 60228
2. Conductor Screen:Extruded semiconductor.
3. Insulation:High modulus ethylene propylene 105 ºC (HEPR).
4. Insulation Screen : Cold peelable extruded semiconductor.
5. Shielding:Copper wire screen with copper tape applied in counter helix.
6. Sheath:：DMZ1 type polyolefin, red color. Can be manufactured with Eca class on request (DMZ2 sheath).
Application: Can be installed outdoors on trays or buried directly/in duct.
1. Conductor: Aluminum, class 2 according to EN 60228; IEC60228
2. Conductor Screen: Extruded semiconductor.
3. Insulation: Cross-linked polyethylene (XLPE).
4. Insulation Screen : Cold peelable extruded semiconductor.
5. Shielding: copper wires with copper tape.
6. Water resistant: Longitudinal blocking with hydro-expandable tape.
7. Sheath：Polyolefin type DMZ1, red color.
Application:Can be installed outdoors on trays or buried directly/in duct.
1. Conductor: Class 2 aluminum, in accordance with IEC 60228, with longitudinal blocking against water penetration.
2. Conductor Screen: Extruded semiconductor,
3. Insulation: Cross-linked polyethylene (XLPE)
4. Insulation Screen: Cold peelable extruded semiconductor.
5. Phase Identifition: Identification by longitudinal strip colors: red, green and yellow.
6. Shielding: Copper foil screen (H16) with copper tape. Longitudinal blocking of water penetration with hydro-expansive tape.
7. Sheath: Polyolefin type DMZ1 gray with extruded semiconductor layer.
Application:Can be installed outdoors or underground. Abrasion and tear resistant sheath
