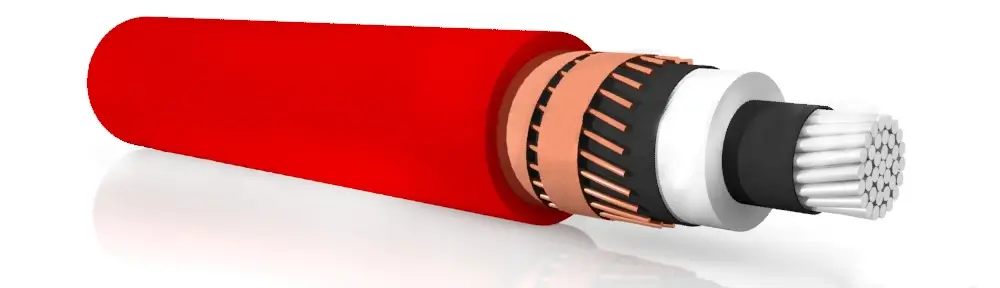

ARE4H1R 12/20 kV – 18/30 kV Single-core Cable
Conductor: Aluminum, compact rigid construction, class 2.
Inner semi-conductive: extruded compound.
Insulation: Cross-linked polyethylene (XLPE) lead-free.
Outer semi-conductive: extruded compound, cold-peelable.
Shielding: Bare copper wires with counter-spiral copper tape.
Outer sheath: ST2-grade PVC.
Color: Red
Nominal voltage Uo/U: 12/20 kV, 18/30 kV
Maximum operating temperature: 90°C
Minimum operating temperature: -15°C
APPLICATION: ARE4H1R are medium voltage cables suitable for power transmission between transformer stations and large utilities. They can be installed in open air, in pipes, or ducts.

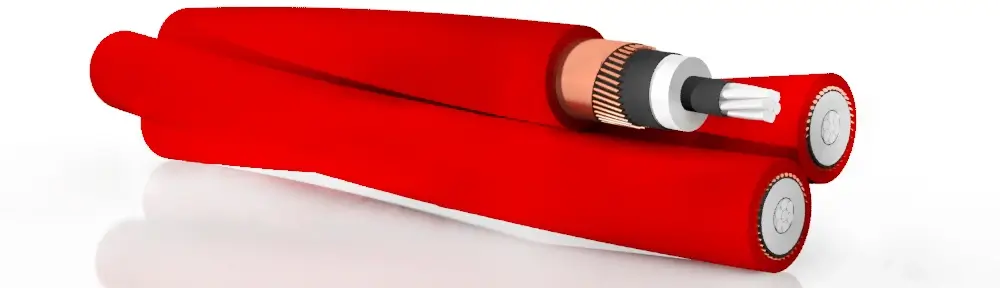

ARE4H1RX 12/20 kV – 18/30 kV Three-core Cable
Conductor: Compact round aluminum wire.
Inner semi-conductive: Extruded compound
Insulation: Cross-linked polyethylene compound
Outer semi-conductive: Extruded compound
Shield: Bare copper wire and counterspiral (R max 3 Ω/km)
Outer sheath: Rz/ST2 quality PVC.
Color: Red
Nominal voltage Uo/U: 12/20 kV, 18/30 kV
Maximum operating temperature: 90°C
Minimum operating temperature: -15°C
APPLICATION: ARE4H1R are medium voltage cables suitable for power transmission between transformer stations and large utilities. They can be installed in open air, in pipes, or ducts.
| ARE4H1R 12/20 kV | ||
| Size | Approx. conduct. Ø | Approx. cable weight |
| n° x mm2 | mm | kg/km |
| 1×35 | 7,1 | 590,0 |
| 1×50 | 8,2 | 650,0 |
| 1×70 | 9.9 | 750,0 |
| 1×95 | 11.4 | 880,0 |
| 1x 120 | 13,1 | 1010,0 |
| 1×150 | 14.4 | 1150,0 |
| 1×185 | 16,2 | 1290,0 |
| 1×240 | 18.4 | 1520,0 |
| 1×300 | 20,7 | 1760,0 |
| 1×400 | 23,6 | 2253,0 |
| 1x 500 | 26,5 | 2580,0 |
| 1×630 | 30,2 | 3110,0 |
| ARE4H1R 18/30 kV | ||
| Size | Approx. conduct. Ø | Approx. cable weight |
| n° x mm2 | mm | kg/km |
| 1×50 | 8.2 | 880 |
| 1×70 | 9,9 | 1020 |
| 1×95 | 11,4 | 1150 |
| 1×120 | 13,1 | 1300 |
| 1×150 | 14.4 | 1420 |
| 1×185 | 16,2 | 1600 |
| 1×240 | 18,4 | 1860 |
| 1×300 | 20,7 | 2120 |
| 1×400 | 23,6 | 2650 |
| 1×500 | 26,5 | 2980 |
| 1×630 | 30,2 | 3550 |
| ARE4H1RX 12/20kV | ||
| Size | Nominal conduct. Ø | Nominal cable weight |
| n° x mm2 | mm | kg/km |
| 25 | 6,0 | 610 |
| 35 | 7,0 | 670 |
| 50 | 8,1 | 720 |
| 70 | 9,9 | 840 |
| 95 | 11,5 | 955 |
| 120 | 12,9 | 1060 |
| 150 | 14.2 | 1210 |
| 185 | 15,9 | 1345 |
| 240 | 18,3 | 1590 |
| 300 | 20,7 | 1845 |
| 400 | 23,5 | 2175 |
| 500 | 26,5 | 2620 |
| 630 | 30,1 | 3110 |
| 3x1x25 | 6,0 | 1834 |
| 3x1x35 | 7,0 | 2014 |
| 3x1x50 | 8,1 | 2164 |
| 3x1x70 | 9,9 | 2525 |
| 3x1x95 | 11.5 | 2871 |
| 3x1x120 | 12,9 | 3186 |
| 3x1x150 | 14.2 | 3637 |
| 3x1x185 | 15,9 | 4043 |
| 3x1x240 | 18,3 | 4780 |
| 3x1x300 | 20,7 | 5546 |
| 3x1x400 | 23,5 | 6538 |
| 3x1x500 | 26.5 | 7876 |
| ARE4H1RX 18/30 kV | ||
| Size | Nominal conduct. Ø | Nominal cable weight |
| n° x mm2 | mm | kg/km |
| 35 | 7,0 | 920 |
| 50 | 8.1 | 990 |
| 70 | 9.9 | 1140 |
| 95 | 11,5 | 1265 |
| 120 | 12,9 | 1380 |
| 150 | 14,2 | 1510 |
| 185 | 15,9 | 1665 |
| 240 | 18.3 | 1940 |
| 300 | 20,7 | 2245 |
| 400 | 23,5 | 2625 |
| 500 | 26,5 | 3065 |
| 630 | 30,1 | 3860 |
| 3x1x35 | 7,0 | 2766 |
| 3x1x50 | 8.1 | 2976 |
| 3x1x70 | 9.9 | 3427 |
| 3x1x95 | 11,5 | 3803 |
| 3x1x120 | 12,9 | 4148 |
| 3x1x150 | 14,2 | 4539 |
| 3x1x185 | 15,9 | 5005 |
| 3x1x240 | 18.3 | 5832 |
| 3x1x300 | 20,7 | 6748 |
