AXLJ-TTCL TSLF 12/20(24) kV, 18/30(36) kV and 26/45(52) kV Medium Voltage Power Cable

Application

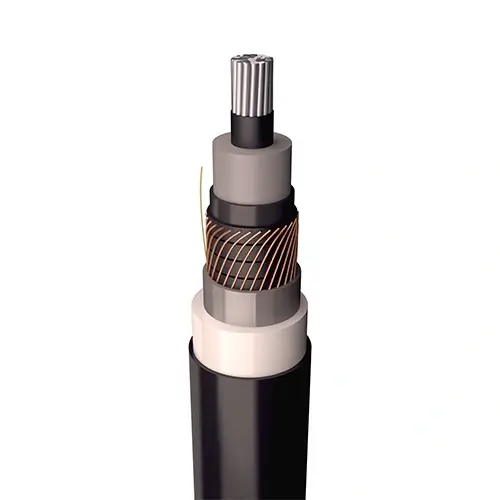

Power cable with round, stranded and compacted aluminium conductor. Cable is radially and longitudinally water-sealed. The screen is made up of circular copper wires and aluminium laminate. The aluminium laminate is included in screen cross-section. The outer sheath has a conductive layer that greatly extends the possibilities to do a sheath testing before, during and after installation. For ffxed outdoor installations, suitable for ploughing down.

sales@huadongcablegroup.com

Voltage: 12/20(24) kV, 18/30(36) kV and 26/45(52) kV
Conductor: Stranded, round, compacted copper acc. to IEC 60228 class 2, longitudinally water sealed
Insulation: XLPE, nom thickness 9,0 mm
Conductor screen: Semiconducting copolymer compound
Insulation screen: Semiconducting copolymer compound
Longitudinal water tightness: Semiconducting water blocking tape
Shielding: Annealed copper wires in contact with aluminum tape
Radial water blocking: Aluminium-PE laminate, bonded to sheath
Ripcord: Aramid
Outer sheath Black: PE
Semi-conducting layer in outer sheath: Yes (facilitates sheath testing)
Temperature:
Max operating temperature 90°C
Max short circuit temperature 250°C
Min temperature at installation -20°C, below 0°C special precautions are recommended

Conductors and screen area [mm2]	Diameter over insulation [mm]	Diameter over sheath [mm]
AXLJ-TTCL TSLF 12/20(24) kV
1×50/16	19,5	27,9
1×70/16	21,1	29,7
1×95/25	22,8	31,3
1×120/25	24.4	32,9
1×150/25	25,7	34,4
1×185/35	27.4	36,3
1×240/35	29,5	38,7
1×300/35	32,1	41,2
1×400/35	35,3	44.5
1×500/35	38，2	47.6
1×630/50	41,2	51,7
1×800/50	45,6	55,6
1×1000/50	52，1	63,0
1×1200/50	54.3	67,2
AXLJ-TTCL TSLF 18/30(36) kV
1×50/25	24,3	33,1
1×70/25	25,9	34,7
1×95/25	27,6	36,6
1×120/35	28,9	37,9
1×150/35	30,5	39,7
1×185/35	32,2	41.4
1×240/35	34.4	43,8
1×300/35	36,9	46,5
1×400/35	40,1	49,9
1×500/35	43,0	52,9
1×630/50	46,9	57,0
1×800/50	50.4	60,9
AXLJ-TTCL TSLF 26/45(52) kV
1×50/25	27.2	36,6
1×70/25	28,8	38,2
1×95/25	30,5	40,1
1×120/35	32,1	41.7
1×150/35	33,4	43,1
1×185/35	35,1	44,8
1×240/35	37,3	47.2
1×300/35	39，7	49,8
1×400/35	42,9	53,2
1×500/35	45,8	56,0
1×630/50	49,7	60,4
1×800/50	53.2	66,1
