AXPK-PLUS 0,6/1 kV Single-core and Multi-core Halogen-free Cable

AXPK-PLUS is an upgraded, halogen-free 1 kV power cable designed to replace the older AXPK and AXPK-PE cables.

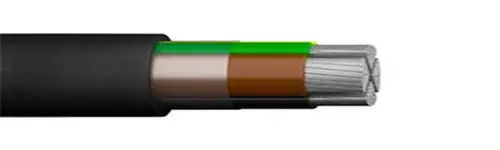

AXPK-PLUS 0,6/1 kV Multi-core Halogen-free Cable

Application:
Halogen-free power cable with aluminium conductor. For ffxed indoor and outdoor installation, perfect for ploughing down.

Voltage: 0.6/1kV
Conductor:
16 mm2: stranded and compacted or solid round aluminium conductor;
25 mm2: stranded, compacted and annealed aluminium conductor;
35–300 mm2: stranded, compacted and annealed sector shaped
aluminium conductor
Conductor screen: UV resistant XLPE
Core assembly: Insulated cores are wrapped together
Outer sheath: Black halogen-free self-extinguishing PE compound
Temperature:
Max operating temperature 90°C
Max short circuit temperature 250°C
Min temperature at installation -20°C, below 0°C special precautions are recommended

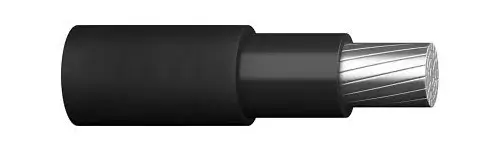

AXPK-PLUS 1 core 0,6/1 kV Halogen-free Cable

Application:
For fixed installations indoors and outdoors. Suitable for cable ducts and house connections.

Voltage: 0.6/1kV
Conductor: Round, compacted and stranded aluminium conductor
Conductor screen: UV resistant XLPE
Core assembly: Insulated cores are wrapped together
Outer sheath: Black halogen-free self-extinguishing PE compound
Temperature:
Max operating temperature 90°C
Max short circuit temperature 250°C
Min temperature at installation -20°C, below 0°C special precautions are recommended

AXPK-PLUS Multi-core Cable Data Sheet

Product name	Cable diameter[mm]	Weight[kg/km]
AXPK-PLUS 3×16	17	245
AXPK-PLUS 4G16	19	320
AXPK-PLUS 4G16 RM	20	335
AXPK-PLUS 4G25	23	490
AXPK-PLUS 5G16	21	380
AXPK-PLUS 5G25	26	585
AXPK-PLUS 4G35	23	595
AXPK-PLUS 5G35	28	755
AXPK-PLUS 4G50	26	765
AXPK-PLUS 4G70	30	1050
AXPK-PLUS 4G95	34	1365
AXPK-PLUS 4G120	38	1700
AXPK-PLUS 4G150	42	2095
AXPK-PLUS 4G185	47	2620
AXPK-PLUS 4G240	53	3465
AXPK-PLUS 4G300	59	4215
