BS5308 / PAS 5308 Part 1 Type 2 Instrumentation Cables for Oil / Petrochemical Industry

Application

Publicly Available Standard (PAS) BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry. The signals can be analogue, data or voice type and from a variety of transducers such as pressure, proximity or microphone. Part 1 Type 2 cables are designed where a greater degree of mechanical protection is required namely outdoor / exposed or direct burial at suitable depth.

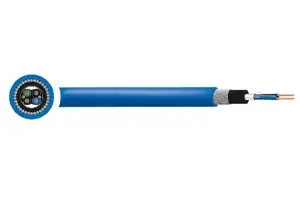

PAS BS 5308 Part 1 Type 2 PE/CAM/PE/SWA/PVC Cable

Voltage: 300/500V
Conductor:
0.5mm² – 0.75mm²: Class 5 flexible copper conductor
1mm² and above: Class 2 stranded copper conductor
NO. OF PAIRS: 2P ~ 30P
Insulation: PE
Screen: Al/PET (Aluminium/Polyester Tape)
Drain Wire: Tinned copper
Bedding: PE (Polyethylene)
Armour: SWA (Galvanised Steel Wire Armour)
Sheath: PVC
Sheath Colour: Blue Black

PAS BS 5308 Part 1 Type 2 PE/ICAM/PE/SWA/PVC Cable

Voltage: 300/500V
Conductor:
0.5mm² – 0.75mm²: Class 5 flexible copper conductor
1mm² and above: Class 2 stranded copper conductor
NO. OF PAIRS: 2P ~ 30P
Insulation: PE
Individual and Collective Screen: Al/PET (Aluminium/Polyester Tape)
Drain Wire: Tinned copper
Bedding: PE (Polyethylene)
Armour: SWA (Galvanised Steel Wire Armour)
Sheath: PVC
Sheath Colour: Blue Black

PAS BS 5308 Part 1 Type 2 CAM/XLPE/SWA/LSZH Cable

Voltage: 300/500V
Conductor:
0.5mm² – 0.75mm²: Class 5 flexible copper conductor
1mm² and above: Class 2 stranded copper conductor
NO. OF PAIRS: 2P ~ 30P
Insulation: XLPE
Screen: Al/PET (Aluminium/Polyester Tape)
Drain Wire: Tinned copper
Bedding: LSZH (Low Smoke Zero Halogen)
Armour: SWA (Galvanised Steel Wire Armour)
Sheath: LSZH
Sheath Colour: Blue Black

PAS BS 5308 Part 1 Type 2 XLPE/ICAM/LSZH/SWA/LSZH Cable

Voltage: 300/500V
Conductor:
0.5mm² – 0.75mm²: Class 5 flexible copper conductor
1mm² and above: Class 2 stranded copper conductor
NO. OF PAIRS: 2P ~ 30P
Insulation: XLPE
Individual and Collective Screen: Al/PET (Aluminium/Polyester Tape)
Drain Wire: Tinned copper
Bedding: LSZH
Armour: SWA (Galvanised Steel Wire Armour)
Sheath: LSZH
Sheath Colour: Blue Black

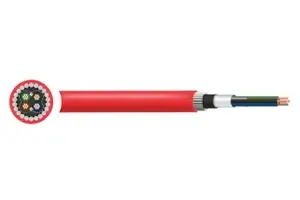

PAS BS 5308 Part 1 Type 2 SIL/CAM/LSZH/SWA/LSZH (Fire Resistant) Cable

Voltage: 300/500V
Conductor:
0.5mm² – 0.75mm²: Class 5 flexible copper conductor
1mm² and above: Class 2 stranded copper conductor
NO. OF PAIRS: 2P ~ 30P
Insulation: Silicone rubber ceramic type
Individual and Collective Screen: Al/PET (Aluminium/Polyester Tape)
Drain Wire: Tinned copper
Inner Sheath: LSZH
Armour: SWA (Galvanised Steel Wire Armour)
Sheath: LSZH
Sheath Colour: Red Black

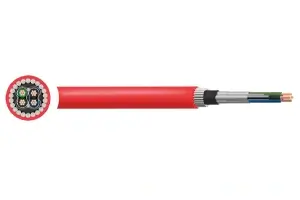

PAS BS 5308 Part 1 Type 2 SIL/ICAM/LSZH/SWA/LSZH (Fire Resistant) Cable

Voltage: 300/500V
Conductor:
0.5mm² – 0.75mm²: Class 5 flexible copper conductor
1mm² and above: Class 2 stranded copper conductor
NO. OF PAIRS: 2P ~ 30P
Insulation: Silicone rubber ceramic type
Individual and Collective Screen: Al/PET (Aluminium/Polyester Tape)
Drain Wire: Tinned copper
Inner Sheath: LSZH
Armour: SWA (Galvanised Steel Wire Armour)
Sheath: LSZH
Sheath Colour: Red Black

PAS BS 5308 Part 1 Type 2 Mica/XLPE/CAM/LSZH/
SWA/LSZH (Fire Resistant) Cable

Voltage: 300/500V
Conductor:
0.5mm² – 0.75mm²: Class 5 flexible copper conductor
1mm² and above: Class 2 stranded copper conductor
NO. OF PAIRS: 2P ~ 30P
Insulation: MICA Tape + XLPE
Screen: Al/PET (Aluminium/Polyester Tape)
Drain Wire: Tinned copper
Inner Sheath: LSZH
Armour: SWA (Galvanised Steel Wire Armour)
Sheath: LSZH
Sheath Colour: Red Black Blue

PAS BS 5308 Part 1 Type 2 MICA/XLPE/ICAM/
LSZH/SWA/LSZH (Fire Resistant) Cable

Voltage: 300/500V
Conductor:
0.5mm² – 0.75mm²: Class 5 flexible copper conductor
1mm² and above: Class 2 stranded copper conductor
NO. OF PAIRS: 2P ~ 30P
Insulation: Silicone rubber ceramic type
Individual and Collective Screen: Al/PET (Aluminium/Polyester Tape)
Drain Wire: Tinned copper
Inner Sheath: LSZH
Armour: SWA (Galvanised Steel Wire Armour)
Sheath: LSZH
Sheath Colour: Red Black

PAS BS 5308 Part 1 Type 2 PE/CAM/PE/SWA/PVC Cable Dimension

PAS BS 5308 Part 1 Type 2 PE/CAM/PE/SWA/PVC Cable
NO. OF PAIRS/TRIPLE	NOMINAL CROSS SECTIONAL AREA	NOMINAL OVERALL DIAMETER
NO. OF PAIRS/TRIPLE	mm2	mm
1P	0.5	11.4
1P	0.75	11.8
1P	1	11.8
1P	1.5	12.9
1P	2.5	13.7
1T	0.5	11.7
1T	0.75	12.1
1T	1	12.3
1T	1.5	13.5
1T	2.5	14.3
2P(Q)	0.5	12.3
2P(Q)	0.75	13
2P(Q)	1	13
2P(Q)	1.5	14.3
2P(Q)	2.5	15.3
5P	0.5	17.9
5P	0.75	19.3
5P	1	19.7
5P	1.5	22.1
5P	2.5	24.1
10P	0.5	22.9
10P	0.75	25.5
10P	1	24.3
10P	1.5	28.4
10P	2.5	32.1
15P	0.5	26.4
15P	0.75	28.7
15P	1	28.1
15P	1.5	32.2
15P	2.5	36.4
20P	0.5	29.1
20P	0.75	31.6
20P	1	31.2
20P	1.5	35.7
20P	2.5	41

Get a free quote by e-mail: sales@huadongcablegroup.com

PAS BS 5308 Part 1 Type 2 XLPE/ICAM/LSZH/SWA/LSZH Cable Dimension

PAS BS 5308 Part 1 Type 2 XLPE/ICAM/LSZH/SWA/LSZH Cable
NO. OF PAIRS	NOMINAL CROSS SECTIONAL AREA	NOMINAL OVERALL DIAMETER
NO. OF PAIRS	mm2	mm
2P	0.5	15.3
2P	0.75	16
2P	1	15.9
2P	1.5	18.6
2P	2.5	20
3P	0.5	16.4
3P	0.75	17.1
3P	1	17
3P	1.5	19.7
3P	2.5	21.1
5P	0.5	19.1
5P	0.75	20
5P	1	20
5P	1.5	22.5
5P	2.5	25.5
10P	0.5	25.6
10P	0.75	27
10P	1	27
10P	1.5	30.7
10P	2.5	33.9
15P	0.5	28.7
15P	0.75	30.6
15P	1	30.5
15P	1.5	34.6
15P	2.5	39.3
20P	0.5	31.6
20P	0.75	33.8
20P	1	33.7
20P	1.5	39.3
20P	2.5	43.7
30P	0.5	36.4
30P	0.75	39.7
30P	1	39.6
30P	1.5	45.2
30P	2.5	51.6

Get a free quote by e-mail: sales@huadongcablegroup.com

PAS BS 5308 Part 1 Type 2 SIL/CAM/LSZH/SWA/LSZH (Fire Resistant) Cable Dimension

PAS BS 5308 Part 1 Type 2 SIL/CAM/LSZH/SWA/LSZH (Fire Resistant) Cable
NO. OF PAIRS/TRIPLE	NOMINAL CROSS SECTIONAL AREA	NOMINAL OVERALL DIAMETER
NO. OF PAIRS/TRIPLE	mm2	mm
1P	0.5	10.9
1P	1	11.3
1P	1.5	12.3
1P	2.5	13.3
1P	0.75	11.4
1T	0.5	11.3
1T	1	11.7
1T	1.5	13
1T	2.5	13.8
1T	0.75	11.8
2P(Q)	0.5	11.8
2P (Q)	1	12.3
2P (Q)	1.5	13.7
2P (Q)	2.5	14.7
2P (0)	0.75	12.6
5P	0.5	17.2
5P	1	18.1
5P	1.5	21.1
5P	2.5	23.2
5P	0.75	18.3
10P	0.5	23.2
10P	1	25.9
10P	1.5	29.3
10P	2.5	31.8
10P	0.75	26.2
15P	0.5	27.2
15P	1	28.9
15P	1.5	33.6
15P	2.5	36.8
15P	0.75	29.2
20P	0.5	29.9
20P	1	31.5
20P	1.5	37
20P	2.5	40.9
20P	0.75	33

Get a free quote by e-mail: sales@huadongcablegroup.com

PAS BS 5308 Part 1 Type 2 MICA/XLPE/ICAM/ LSZH/SWA/LSZH (Fire Resistant) Cable Dimension

PAS BS 5308 Part 1 Type 2 MICA/XLPE/ICAM/ LSZH/SWA/LSZH (Fire Resistant) Cable
NO. OF PAIRS	NOMINAL CROSS SECTIONAL AREA	NOMINAL OVERALL DIAMETER
NO. OF PAIRS	mm2	mm
2P	0.5	16
2P	0.75	17.2
2P	1	17
2P	1.5	18.7
2P	2.5	20.9
5P	0.5	20.4
5P	0.75	21.5
5P	1	21.3
5P	1.5	24
5P	2.5	27.2
10P	0.5	28.1
10P	0.75	30
10P	1	29.6
10P	1.5	34.2
10P	2.5	36.9
15P	0.5	31.5
15P	0.75	34.6
15P	1	34.2
15P	1.5	38.2
15P	2.5	41.8
20P	0.5	35.7
20P	0.75	38
20P	1	37.5
20P	1.5	42.5
20P	2.5	46.1
30P	0.5	40.9
30P	0.75	43.6
30P	1	43
30P	1.5	49.5
30P	2.5	54

Get a free quote by e-mail: sales@huadongcablegroup.com
