Application
Publicly Available Standard (PAS) BS 5308 cables are designed to carry communication and control signals in a variety of installation types including the petrochemical industry. The signals can be of analogue, data or voice type and from a variety of transducers such as pressure, proximity or microphone. Part 2 Type 1 cables are generally designed for indoor use and in environments where mechanical protection is not required. Part 2 Type 2 cables are designed where a greater degree of mechanical protection is required namely outdoor / exposed or direct burial at suitable depth. Individually screened for enhanced signal security.

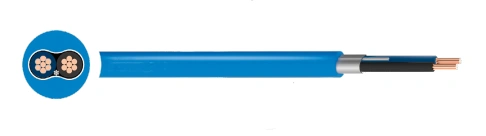

PAS BS 5308 Part 2 Type 1 PVC/CAM/PVC Cable
Voltage: 300/500V
Conductor:
0.5mm² – 0.75mm²: Class 5 flexible copper conductor
1mm² and above: Class 2 stranded copper conductor
Insulation: PVC
Screen: Al/PET (Aluminium/Polyester Tape)
Drain Wire: Tinned copper
Sheath: PVC

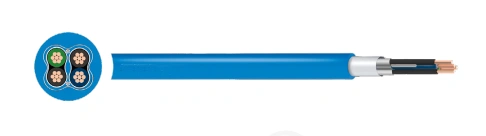

PAS BS 5308 Part 2 Type 1 PVC/ICAM/PVC Cable
Voltage: 300/500V
Conductor:
0.5mm² – 0.75mm²: Class 5 flexible copper conductor
1mm² and above: Class 2 stranded copper conductor
Pairing: Two insulated conductors uniformly twisted together
Insulation: PVC
Individual and Collective Screen: Al/PET
Drain Wire: Tinned copper
Sheath: PVC (Polyvinyl Chloride)

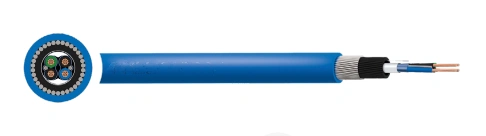

PAS BS 5308 Part 2 Type 2 PVC/CAM/PVC/SWA/PVC Cable
Voltage: 300/500V
Conductor:
0.5mm² – 0.75mm²: Class 5 flexible copper conductor
1mm² and above: Class 2 stranded copper conductor
Insulation: PVC
Screen: Al/PET
Drain Wire: Tinned copper
Bedding: PVC
Armour: SWA
Sheath: PVC

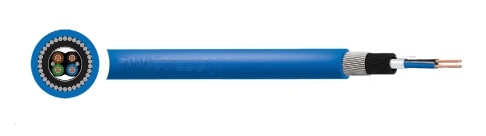

Voltage: 300/500V
Conductor:
0.5mm² – 0.75mm²: Class 5 flexible copper conductor
1mm² and above: Class 2 stranded copper conductor
Insulation: PVC (Polyvinyl Chloride)
Individual and Collective Screen: Al/PET
Drain Wire: Tinned copper
Bedding: PVC
Armour: SWA
Sheath: PVC
