Applications
In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.

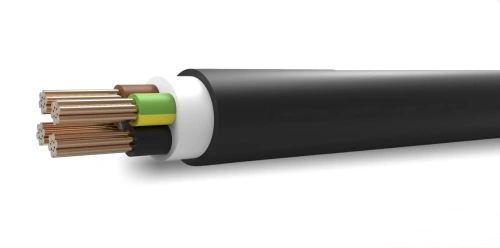

Named: Cyky / Cyky-O / Cyky-J
Rated voltage: 0,6/1 kV
Conductors: Cu, class 1 or 2
Insulation: PVC
Bedding: Extruded elastomere or plastomere compound or plastic tape
Sheath: PVC
| Number of cores x nominal cross section (mm²) | CONDUCTOR CONSTRUCTION | CABLE WEIGHT(APPROX.) (kg/km) |
| 4×10 | RE | 690 |
| 4×16 | RM/RE | 1050 |
| 4×25 | RM/RE | 1550 |
| 4×35 | RM/RE | 1962 |
| 4×50 | RE/SE | 2180 |
| 4×70 | RE/SE | 2990 |
| 3×95+50 | SM/RM(SM) | 3900 |
| 3×95+70 | SM/RE | 4400 |
| 4×95 | SM | 4600 |
| 3×120+50 | SM/RM(SM) | 4900 |
| 3×120+70 | SM/RE(RM) | 5150 |
| 3×120+70 | SM/SM | 5100 |
| 4×120 | SM | 5060 |
| 3×150+70 | SM/RE(RM) | 6150 |
| 3×150+70 | SM/SM | 6100 |
| 4×150 | SM | 6800 |
| 3×185+95 | SM/RM | 7600 |
| 3×185+95 | SM/SM | 7600 |
| 4×185 | SM | 8400 |
| 3×240+120 | SM/RM | 9800 |
| 3×240+120 | SM/SM | 9800 |
| 4×240 | SM | 11000 |
