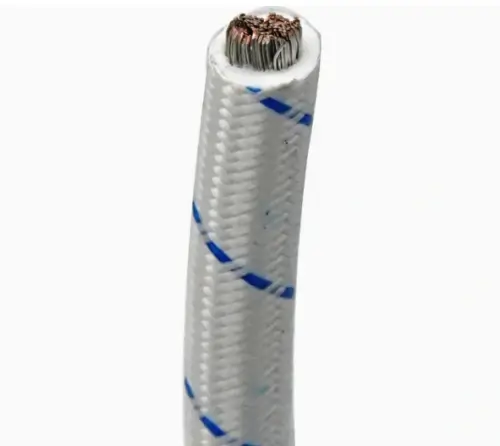

Applications
These cables are used in cooling systems in locations where refrigerant and chemical conformance are required, as well as for the internal connections of compressor engines.
Test Voltage: 2000 V
Temperature Range: +40 °C
Conductor : Electrolyte ladder with high flexibility.
1. Insulation : Dacron polyester yarn
2. Insulation : Mylar Foil
3. Insulation : Dacron polyester yarn
Separator : PES Tape and Glass Fiber Tape
Screen : AL-PES Tape and Tinned Copper Drain Wire
Outer Sheath : EN 50290-2-27 HFFR Compound
| Technical Speciffcation | ||
| Conductor | Operating Voltage Max. | Electrical Tests |
| mm | V | EN |
| EN 60228 Klasse 6 65×0,127 | 600 | EN 50395 |
| Cross Section | Wire number | Outer Diam |
| (mm2) | (mm) | (mm~) |
| AWG 18 | 65 | 0,127 |
