Application

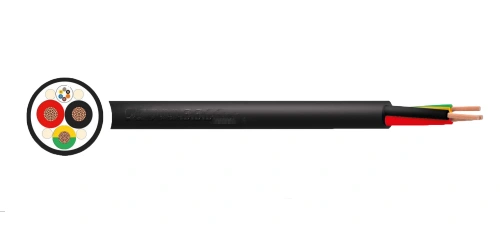

Class 6 flexible power cable with enhanced DC Power rating suitable for Mode 4 EV charging in public and commercial highpowered electric vehicle charging stations. Suitable for installations with possibility of water immersion (AD7). G16 quality HEPR insulation with low corrosive gas emission and low fire propagation properties.
Voltage Rating: 1500V DC
Temperature Range: -40ºC to +90ºC
Conductor: Class 6 Fine Flexible Copper
Insulation: Rubber Compound Type EV1-2
Control/Pilot Cores: Class 5 Flexible Copper with Rubber insulation
Sheath: PUR-HF
STANDARDS:
IEC 62893, EN 50620, ISO 61851, EN/IEC 60228, IEC
60332-1-2, IEC 60811-403/4, ISO 4892
| CONSTRUCTION | NOMINAL CABLE DIAMETER | NOMINAL WEIGHT |
| mm | kg/km | |
| 2×16+1G16 | 19.3 | 700 |
| 2×25+1G16 | 22.1 | 950 |
| 2×35+1G16 | 23.8 | 1150 |
| 2×50+1G25 | 27.7 | 1650 |
| 2×70+ 1G35 | 32.3 | 2250 |
| 2×95 +1G50 | 37.3 | 3000 |
