Applications

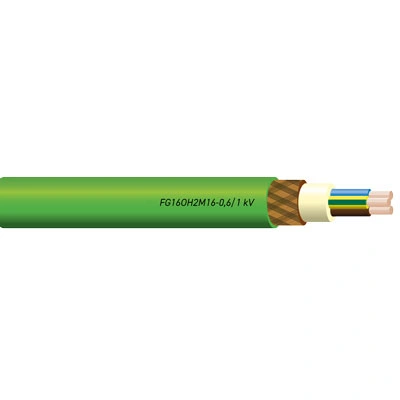

FG16OH2M16–0,6/1 kV No Smoke Multicore core power cable, G16 rubber insulated, tape screen, LS0H thermoplastic sheathed. Resistant to fire propagation with a low emission of smoke and toxic and corrosive gases when exposed to fire.
For indoor and outdoor installation, also in wet locations; for fixed installation in surface mounted or on metallic structures; direct laying in earth permitted.
Normally used in the interconnections of machinery or parte of them, when a certain degree of protection is needed against electromagnetic interference.
Rated voltage: 0,6/1 kV
Min. installation temperature: 0°C
Min. working temperature: -15°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C
Conductor: Flexible, plain copper wire, class 5
Insulation: Hard ethylene propylene rubber (HEPR) compound, of type G16
Filler: Penetrating Thermoplastic filler with reduced emission of corrosive gases
Screen: Plain copper braid
Sheath: M16 quality thermoplastic compound
Sheath Color: Green
FG16OH2M16 Partial Parameter Table
| Formation | Approx. conductor Ø | Average insulation thickness | Approx. production Ø | Approx. cable weight |
| n° x mm2 | mm | mm | mm | kg/km |
| 2 x 1,5 | 1,6 | 0,7 | 11,0 | 175 |
| 2 x 2,5 | 1,9 | 0,7 | 12,0 | 217 |
| 2 x 4 | 2,5 | 0,7 | 13,1 | 269 |
| 2 x 6 | 3,0 | 0,7 | 14,4 | 342 |
| 2 x 10 | 4,0 | 0,7 | 16,7 | 490 |
| 2 x 16 | 5,0 | 0,7 | 18,7 | 656 |
| 2 x 25 | 6,2 | 0,9 | 22,5 | 956 |
| 2 x 35 | 7,6 | 0,9 | 24,9 | 1242 |
| 3 x 1,5 | 1,6 | 0,7 | 11,5 | 193 |
| 3 x 2,5 | 1,9 | 0,7 | 12,6 | 242 |
| 3 x 4 | 2,5 | 0,7 | 13,7 | 306 |
| 3 x 6 | 3,0 | 0,7 | 15,1 | 396 |
| 3 x 10 | 4,0 | 0,7 | 17,5 | 577 |
| 3 x 16 | 5,0 | 0,7 | 19,7 | 786 |
| 3 x 25 | 6,2 | 0,9 | 23,7 | 1160 |
| 4 x 1,5 | 1,6 | 0,7 | 12,2 | 220 |
| 4 x 2,5 | 1,9 | 0,7 | 13,7 | 293 |
| 4 x 4 | 2,5 | 0,8 | 15,0 | 373 |
| 4 x 6 | 3,0 | 0,7 | 16,4 | 477 |
| 4 x 10 | 4,0 | 0,7 | 19,2 | 706 |
| 4 x 16 | 5,0 | 0,7 | 21,7 | 975 |
| 5 x 1,5 | 1,6 | 0,7 | 13,1 | 250 |
| 5 x 2,5 | 1,9 | 0,7 | 14,7 | 335 |
| 5 x 4 | 2,5 | 0,7 | 16,3 | 443 |
| 5 x 6 | 3,0 | 0,7 | 17,9 | 564 |
| 5 x 10 | 4,0 | 0,7 | 20,7 | 823 |
| 5 x 16 | 5,0 | 0,7 | 23,6 | 1152 |
