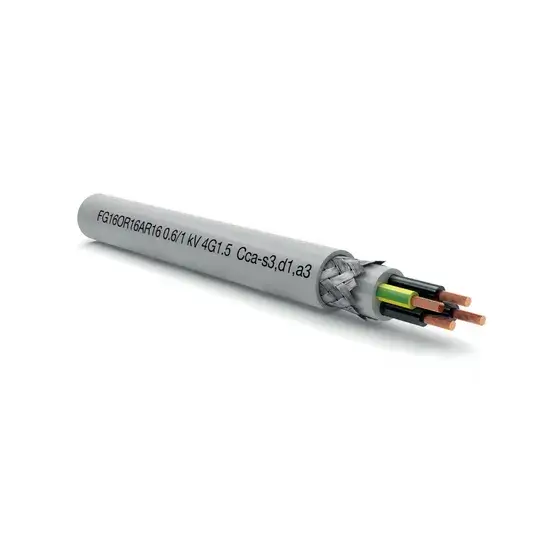

NOMINAL VOLTAGE: 0.6/1 kV
TEMPERATURES RANGE: 15° C / + 90° C
CONDUCTOR: Flexible bare copper Class 5
INSULATION: Rubber compound HEPR, G16 quality
OUTER SHEATH: Outer Sheath PVC R16 type, colour grey
SHIELD: Armour in galvanized steel wires braid (Unipolar in Aluminum).
Applications and Performance
1) For electrical power system in constructions alnd other civil engineering bulginngs,in order to limit fire and smoke production and spread, in accordance with the CPR.
2) Power and control use outdoor applications, even wet. For fixing outside in free air, but protected by UV rays.
3) The most important property of this kind of cable is its protection against knocks and rodents.
4) It is especially suitable for signals.
5) Power and control use outdoor applications, even wet AD7.
6) Special features good resistance to industrial oils and greases.
7) Good behavior at low temperatures. UV resistant.
| SEZIONE NOMINALE (MM2) | Outer diameter | WEIGHT(KG) | SEZIONE NOMINALE (MM2) | Outer diameter | WEIGHT(KG) |
| 2X1.50 | 10,0 | 126 | 2X6.00 | 13.2 | 246 |
| 3G1.50 | 11,2 | 175 | 3G6.00 | 14,0 | 314 |
| 4G1.50 | 12,0 | 204 | 4G6.00 | 15,1 | 385 |
| 5G1.50 | 12,9 | 246 | 5G6.00 | 16,6 | 480 |
| 7G1.50 | 16,4 | 354 | 2X10.00 | 16,6 | 507 |
| 10G1.50 | 16,5 | 384 | 3G 10.00 | 17,5 | 603 |
| 12G 1.50 | 18,0 | 476 | 4G 10.00 | 19,0 | 738 |
| 16G1.50 | 18,9 | 533 | 5G 10.00 | 20,8 | 877 |
| 19G1.50 | 22,5 | 692 | 2X16.00 | 18,8 | 687 |
| 24G 1.50 | 23,6 | 803 | 3G 16.00 | 19,9 | 835 |
| 30G 1.50 | 25,7 | 964 | 4G 16.00 | 22,1 | 1067 |
| 36G 1.50 | 29,5 | 1237 | 5G16.00 | 24.2 | 1262 |
| 48G1.50 | 31,0 | 1589 | 2X25.00 | 22.3 | 994 |
| 2X2.50 | 11,0 | 158 | 3G25.00 | 23,8 | 1228 |
| 3G2.50 | 11,6 | 191 | 4G25.00 | 26,4 | 1557 |
| 4G2.50 | 12,4 | 227 | 5G25.00 | 29,1 | 1877 |
| 5G2.50 | 13.4 | 269 | 2X35.00 | 24.7 | 1276 |
| 7G2.50 | 14.5 | 332 | 3G 35.00 | 26,3 | 1604 |
| 10G2.50 | 18,6 | 490 | 3.5G 35.00 | 28,8 | 1929 |
| 12G2.50 | 18,6 | 526 | 2X50.00 | 28,9 | 1762 |
| 16 G2.50 | 20,6 | 673 | 3G 50.00 | 30,8 | 2217 |
| 19G2.50 | 21,6 | 756 | 3.5G 50.00 | 32,5 | 2502 |
| 24 G2.50 | 26,2 | 1009 | 2X70.00 | 33.7 | 2422 |
| 30 G2.50 | 27.4 | 1173 | 3G 70.00 | 35,7 | 3043 |
| 36 G2.50 | 29,8 | 1399 | 3.5G70.00 | 37,7 | 3441 |
| 2X4.00 | 12,2 | 200 | 2X120.00 | 41.3 | 3778 |
| 3G4.00 | 12,9 | 251 | 3G 120.00 | 44.1 | 4823 |
| 4G4.00 | 13,9 | 301 | 3.5G 120.00 | 46,9 | 5612 |
