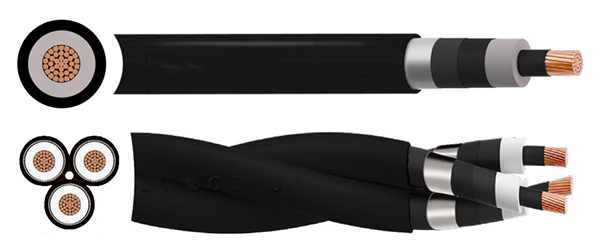

The FR-N20XA8E-AR Cables (aluminium) and FR-N20XA8E-R Cables (copper) are manufactured in accordance with NF-C33-226 – a commonly specified French Normes cable, designed for primary and secondary power distribution. The Medium Voltage cables listed (also referenced as HTA cables in France) have a rated voltage of 12/20kV. The cables with a rated voltage of 18/30kV are referenced with the prefix FR-N30.
Voltage Rating: 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 Stranded Copper
Conductor Screen: Extruded Inner Semi Conductor (Bonded Type)
Insulation: XLPE
Insulation Screen: Extruded Outer Semi Conductor (Strippable Type)
Waterblocking: Semi Conductive Longitudinal Waterblocking Tape
Aluminium Tape: Applied Longitudinally
Sheath: MDPE
Sheath Colour: Black
STANDARDS: NF C 33-226, IEC 60502-2, EN 60228
1 Core and 3 Core FR-N20XA8E-AR, FR-N30XA8E-AR
NF C 33-226 – AL/XLPE/MDPE
Voltage Rating: 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 Stranded Aluminium
Conductor Screen: Extruded Inner Semi Conductor (Bonded Type)
Insulation: XLPE
Insulation Screen: Extruded Inner Semi Conductor (Strippable Type)
Waterblocking: Semi Conductive Longitudinal Waterblocking Tape
Aluminium Tape: Applied Longitudinally
Sheath: MDPE
Sheath Colour: Black
STANDARDS: NF C 33-226, IEC 60502-2, EN 60228
| NO. OF CORES | NOMINAL CROSS | NOMINAL SCREEN CROSS | NOMINAL WEIGHT |
| SECTIONAL AREA | SECTIONAL AREA | ||
| mm2 | mm2 | kg/km | |
| 1 | 50 | 18 | 819 |
| 1 | 70 | 20 | 939 |
| 1 | 95 | 21 | 1062 |
| 1 | 120 | 22 | 1193 |
| 1 | 150 | 23 | 1345 |
| 1 | 185 | 24 | 1477 |
| 1 | 240 | 25 | 1709 |
| 1 | 300 | 27 | 1972 |
| 1 | 400 | 29 | 2334 |
| 1 | 500 | 31 | 2741 |
| 1 | 630 | 34 | 3372 |
| 1 | 800 | 37 | 4132 |
| 3×1 | 50 | 18 | 2469 |
| 3×1 | 70 | 20 | 2829 |
| 3×1 | 95 | 21 | 3203 |
| 3×1 | 120 | 22 | 3602 |
| 3×1 | 150 | 23 | 4064 |
| 3×1 | 185 | 24 | 4459 |
| 3×1 | 240 | 25 | 5166 |
| 3×1 | 300 | 27 | 5965 |
| 3×1 | 400 | 29 | 7063 |
