Application

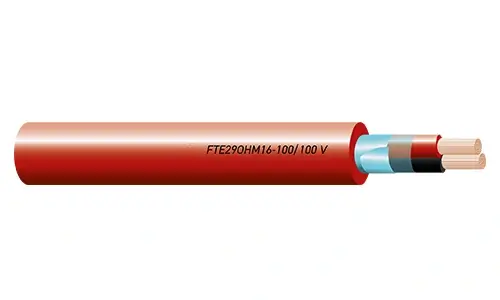

FTE29OHM16-100/100V No Smoke No Burn Cables for fire alarm detection and signaling systems, fire resistant, fire retardant, screened multicore, insulated with cross-linked E29 compound, under M16 thermoplastic sheath, with flexible conductors for fixed installation. Flame retardant and low development of toxic and corrosive fumes and gases.
They can be used to connect equipment for fixed automatic fire detection and manual fire alarm systems, whether or not connected to fire extinguishing systems or other protection systems (both active and passive), intended for installation in buildings, regardless of their intended use. They are not suitable for other uses such as emergency lighting, powering forced smoke and heat extraction systems, electric locks or emergency controls, or other similar applications with operating voltages above 100 V AC. For these applications, cables compliant with CEI 20-105 standards must be used.
Rated Voltage Uo/U: 100/100 V
Min. operating (without mechanical shocks): -15°c Min
Conductor: Flexible, plain copper wire, class 5. Covered with fire proof mica tape.
Insulation: Thermoplastic polyolefin E29, with low development of toxic and corrosive fumes and gases.
Cores Colour: Red, black.
Screen: Aluminium/polyester tape with tinned copper drain wire.
Sheath: M16 quality thermoplastic compound.
Sheath Colour: Red.
| Conductor cross-sections | Average insulation thickness | Average sheath thickness | Outer diameter | |
| mm | mm | MIN mm | MAX mm | |
| 2 cores x mm2 | ||||
| 0,5 | 0,5 | 0.8 | 5,4 | 7.7 |
| 0.75 | 0,5 | 0.8 | 5.8 | 7.9 |
| 1 | 0.5 | 0.8 | 6.1 | 8.4 |
| 1,5 | 0,6 | 0.9 | 7.2 | 9,5 |
| 2,5 | 0.7 | 1 | 8.4 | 11.4 |
| 4 | 0.7 | 1 | 10.1 | 13.1 |
| 6 | 0.7 | 1 | 11.4 | 14.4 |
| 4 cores x mm2 | ||||
| 0,5 | 0,5 | 0,8 | 6.1 | 8,8 |
| 0.75 | 0,5 | 0,8 | 6.6 | 9.2 |
| 1 | 0.5 | 0.8 | 6.9 | 9,5 |
| 1,5 | 0,6 | 0,9 | 8,2 | 10.7 |
| 2,5 | 0.7 | 1 | 10 | 12,5 |
