APPLICATIONS
Suitable for the transport of power and transmission of signals and controls in electrical installations where is required the maximum security in case of fire, such as emergency and alarm lights, automatic fire detection, automatic fire extinguishing devices, automatic door opening, ventilation, air conditioning system and emergency telephone system. For static use indoor even in wet environments and outdoor. Can be laid on brickwork, metal structures, gangways, pipes, ducts or similar closed systems. Allowed for underground laying also unprotected.
FTG18M16 0.6/1kV Single-core LSZH Cable
Rated voltage Uo/U: 0,6/1 kV
Max. operating temperature: 90°C
Min. operating temperature: -15°C
(without mechanical shocks)
Max. short circuit temperature: 250°C
Conductor: class 5, flexible, plain copper wire
Taping: glass/mica tape, wrapped in spiral
Insulation: rubber compound, G18 quality
Filler: LS0H thermoplastic, penetrating between the cores with function of inner sheath
Sheath: LS0H thermoplastic, M16 quality
Colour: blue

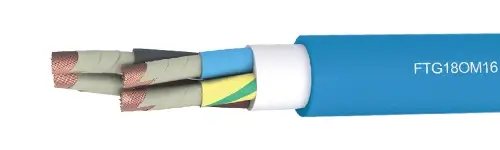

FTG18OM16 0.6/1kV Multi-core LSZH Cable
Rated voltage Uo/U: 0,6/1 kV
Max. operating temperature: 90°C
Min. operating temperature: -15°C
(without mechanical shocks)
Max. short circuit temperature: 250°C
Conductor: class 5, flexible, plain copper wire
Taping: glass/mica tape, wrapped in spiral
Insulation: rubber compound, G18 quality
Filler: LS0H thermoplastic, penetrating between the cores with function of inner sheath
Sheath: LS0H thermoplastic, M16 quality
Colour: blue
FTG18OM16-Multi-core
| Two-core | ||
| Formation | Approx.conductor Ø | Approx.cable weight |
| n° x mm2 | mm | kg/km |
| 2×1,5 | 1,5 | 215 |
| 2×2,5 | 1,9 | 260 |
| 2×4 | 2,4 | 315 |
| 2×6 | 3,0 | 390 |
| 2×10 | 3,9 | 525 |
| 2×16 | 5,0 | 710 |
| 2×25 | 6,1 | 1000 |
| 2×35 | 7,3 | 1325 |
| 2×50 | 8,8 | 1800 |
| 2×70 * | 10,5 | 2300 |
| Three-core | ||
| Formation | Approx.conductor Ø | Approx.cable weight |
| n° x mm2 | mm | kg/km |
| 3×1,5 | 1,5 | 245 |
| 3×2,5 | 1,9 | 295 |
| 3×4 | 2,4 | 365 |
| 3×6 | 3,0 | 455 |
| 3×10 | 3,9 | 625 |
| 3×16 | 5,0 | 865 |
| 3×25 | 6,1 | 1230 |
| 3×35 | 7,3 | 1635 |
| 3×50 | 8,8 | 2255 |
| 3x 70 | 10,5 | 3005 |
| 3×95 | 11,9 | 3865 |
| 3×120 | 13,9 | 4905 |
| Four-core | ||
| Formation | Approx.conductor Ø | Approx.cable weight |
| n° x mm2 | mm | kg/km |
| 4×1,5 | 1,5 | 285 |
| 4×2,5 | 1,9 | 345 |
| 4×4 | 2,4 | 430 |
| 4×6 | 3,0 | 545 |
| 4×10 | 3,9 | 760 |
| 4×16 | 5,0 | 1060 |
| 4×25 | 6,1 | 1520 |
| 3×35+25 | 7,3/6,1 | 1915 |
| 3×50+25 | 8,8/6,1 | 2500 |
| 3×70+35 | 10,5/7,3 | 3345 |
| 3×95+50 | 11,9/8,8 | 4365 |
| Five-core | ||
| Formation | Approx.conductor Ø | Approx.cable weight |
| n° x mm2 | mm | kg/km |
| 5×1,5 | 1,5 | 335 |
| 5×2,5 | 1,9 | 415 |
| 5×4 | 2,4 | 520 |
| 5×6 | 3,0 | 660 |
| 5×10 | 3,9 | 925 |
| 5 x16 | 5,0 | 1295 |
| 5×25 | 6,1 | 1870 |
| 5×35 | 7,3 | 2510 |
| 5×50 | 8,8 | 3495 |
| 5×70 | 10,5 | 4685 |
| 5×95 | 11,9 | 5980 |
| 5×120 | 13,9 | 7600 |
| Multi-core / signalling and control | ||
| Formation | Approx.conductor Ø | Approx.cable weight |
| n° x mm2 | mm | kg/km |
| 7G1,5 | 1,5 | 390 |
| 10G1,5 | 1,5 | 530 |
| 12G1,5 | 1,5 | 590 |
| 16G1,5 | 1,5 | 735 |
| 19G1,5 | 1,5 | 820 |
| 24G1,5 | 1,5 | 1015 |
| 27G1,5 | 1,5 | 1110 |
| 7G2,5 | 1,9 | 480 |
| 10G2,5 | 1,9 | 660 |
| 12G2,5 | 1,9 | 740 |
| 16G2,5 | 1,9 | 935 |
| 19G2,5 | 1,9 | 1055 |
| 24G2,5 | 1,9 | 1305 |
FTG18M16 – Single-core
| Formation | Approx.conductor Ø | Approx.cable weight |
| n° x mm2 | mm | kg/km |
| 1×10 | 3,9 | 195 |
| 1×16 | 5,0 | 260 |
| 1×25 | 6,1 | 365 |
| 1×35 | 7,3 | 480 |
| 1x 50 | 8,8 | 645 |
| 1×70 | 10,5 | 850 |
| 1×95 | 11,9 | 1080 |
| 1×120 | 13,9 | 1360 |
| 1×150 | 15,4 | 1640 |
| 1×185 | 16,9 | 1985 |
| 1×240 | 19,4 | 2530 |
| 1 x 300 * | 21,6 | 3180 |
| 1 x 400 * | 25,1 | 4130 |
| 1 x 500 * | 28,5 | 5100 |
| 1 x 630 * | 32,8 | 6785 |
