Application

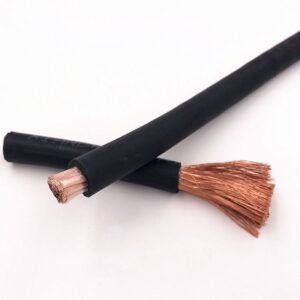

1) Both the H01N2-D and the H01N2-E are flexible cables, however H01N2-E is the preferred choice for applications requiring additional flexibility.
2) These cables are used as a connection to welding robots in the automotive industry, shipyards and for manually/automatically operated lines and spot welding. These cables are ideal for use as an interconnecting battery cable or in battery storage systems. The robust cable structure makes them resistant to low and high temperatures, ozone and radiation, oils, acids, fats and petrols.
CHARACTERISTICS
Voltage Rating: 100V
Temperature Rating: Fixed: -40°C to +85°C; Flexed: -20°C to +85°C
Minimum Bending Radius: Flexed: 6 x overall diameter
CONSTRUCTION
Conductor: Generally to Class 6 flexible copper conductor
Separator: PET (Polyester Tape)
Sheath: Rubber compound
Sheath Colour:Black, Red
STANDARDS:
EN 50525-2-81, EN 60228, HD 22.6, VDE 0282-6,
BS 638 Part 4
Flame Retardant according to IEC/EN 60332-1-2
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| mm2 | mm | mm | kg/km | |
| 1 | 10 | 2 | 9 | 146 |
| 1 | 16 | 2 | 10 | 204 |
| 1 | 25 | 2 | 11.5 | 290 |
| 1 | 35 | 2 | 12.5 | 384 |
| 1 | 50 | 2.2 | 14.5 | 535 |
| 1 | 70 | 2.4 | 16.5 | 716 |
| 1 | 95 | 2.6 | 18.5 | 943 |
| 1 | 120 | 2.8 | 20.5 | 1235 |
| 1 | 150 | 3 | 23 | 1556 |
