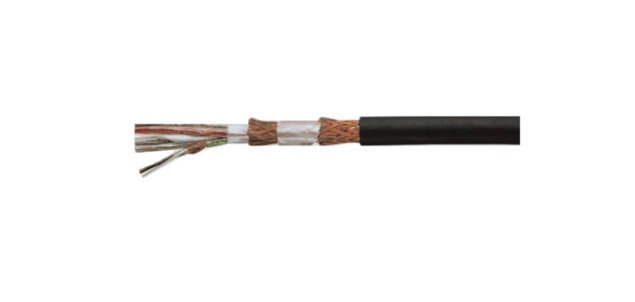

Nominal voltage: 250 V
Stranded (7) tinned copper conductor
Cross-linked polyolefin insulation
Conductor stranded in pairs with optimal lay-length
Overall halogen-free inner filling
Tinned copper, braided double shielding
Polyester foil taping
Elastomer based outer jacket
Jacket color: Black
Oil resistant and flame retardant
Application
For fixed installation on marine craft above and below decks.
Nominal voltage: 250 V
Stranded (7) tinned copper conductor
Cross-linked polyolefin insulation
Conductor stranded in pairs with optimal lay-length
Overall halogen-free inner filling
Tinned copper, braided double shielding
Polyester foil taping
Elastomer based outer jacket
Jacket color: Black
Oil resistant and flame retardant
Application
For fixed installation on marine craft above and below decks.
| Description & No. Conductors x cross-sec. mm2 | Outer Diameter | Copper Weight，kg/km | Weight,ca. kg/km | AWG |
| LFMSGSSGO 5x3X0.4 | 16 | 248 | 420 | – |
| LFMSGSSGO 12x3X0.4 | 23 | 500 | 740 | – |
| LFMGSSGO 2X2X0.4 | 8 | 60 | 95 | – |
| LFMGSSGO 4X2X0.4 | 10.5 | 95 | 145 | – |
| LFMGSSGO 7X2X0.4 | 12.5 | 146 | 220 | – |
| LFMGSSGO 12X2X0.4 | 15.5 | 235 | 320 | – |
| LFMGSSGO 19X2X0.4 | 18 | 320 | 415 | – |
| LFMGSSGO 27X2X0.4 | 20 | 414 | 540 | – |
