Type SHD-GC CPE/TPU Mining Cable
- Voltage: 2kV, 5kV, 8kV, 15kV, 25kV
- Type: Flat or Round
- Conductor: Flexible tinned copper
- Insulation: EPR (90°C)
- Insulation Shielding: Tinned copper and color-coded nylon braid
- Ground Check Conductor: Flexible tinned copper with yellow XLPE insulation
- Ground Wires: Flexible tinned copper
- Jacket: CPE or TPU
- Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

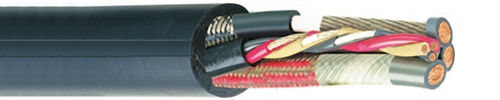

Type SHD-PCG CPE/TPU Mining Cable
- Voltage: 2kV, 5kV
- Core: 3 Core
- Conductor: Flexible tinned copper
- Insulation: EPR (90°C)
- Insulation Shielding: Tinned copper and color coded nylon braid
- Ground Conductor: Flexible tinned copper located in the center of the cable
- Control Ground Conductor: Tinned Copper Conductor/EPR Insulation
- Jacket: CPE (Blue, Green, Yellow, Orange, Red, Black)
Type SHD-CGC CPE/TPU Mining Cable
- Voltage: 2kV, 5kV
- Core: 3 Core
- Conductor: Flexible tinned copper
- Insulation: EPR (90°C)
- Insulation Shielding: Tinned copper and color coded nylon braid
- Ground Wires: Flexible tinned copper
- Control Check Conductor: Tinned copper with yellow insulation located in the central of the cable
- Separator Tape: Non-conducting
- Jacket: CPE (Blue, Green, Yellow, Orange, Red, Black)
Type W Flat EPR Mining Cable
- Voltage: 600/2000V
- Type: Round or Flat
- Core: 2 Core, 3 Core, 4 Core
- Conductor: Flexible tinned copper
- Insulation: EPR (90°C)
- Reinforcement: Synthetic yarn over assembly
- Jacket: Mold-cured thermoset
- Jacket Color: Black
- Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

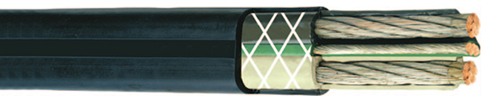

Type G Flat CPE Mining Cable
- Voltage: 2kV, 5kV
- Core: 3 Core
- Conductor: Flexible tinned copper
- Insulation: EPR (90°C)
- Insulation Shielding: Tinned copper and color-coded nylon braid
- Ground Conductor: Flexible tinned copper located in the center of cable
- Control Ground Conductor: Tinned Copper Conductor/EPR Insulation
- Jacket: CPE (Blue, Green, Yellow, Orange, Red, Black)
Type G-GC CPE/TPU Mining Cable
- Voltage: 2000V
- Type: Flat or Round
- Core: 3 Core
- Conductor: Flexible tinned copper
- Insulation: EPR (90°C)
- Ground Wire: flexible tinned copper
- Tape: Non-conducting
- Jacket: CPE
- Jacket Color: Black,blue, green, orange, red, yellow
- Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customizede
Type VFD EPR/CPE Mining Cable
- Voltage: 2000V
- Core: 3C conductor + 3C ground wire
- Conductor: Tinned copper
- Ground Conductor: flexible tinned copper
- Power Conductor: Extra flexible tinned rope stranded
- Ground Check Wire Optional: Flexible tinned copper with yellow insulation.
- Insulation: EPR (90°C)
- Shield: Overall tinned copper braid plus aluminum/polyester tape providing 100% coverage
- Jacket: CPE (Black)
Type MP EP/CPE Mining Cable
- Voltage: 5/15kV
- Conductor: Copper
- Core: 3Core
- Strand Shield: Semi-conducting layer
- Insulation: EPR
- Insulation Shield: Semi-conducting layer under copper tape
- Ground Wires: Tinned copper
- Ground Check Conductor: 8 AWG 7-wire copper with yellow polypropylene insulation
- Jacket: CPE

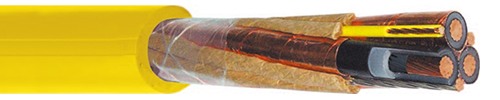

Type MP-GC XLPE ERP Mining Cable
- Voltage: 25/35kV
- Conductor: Copper
- Core: 3Core
- Strand Shield: Semi-conducting layer
- Insulation: XLPE, EPR
- Insulation Shield: Semi-conducting layer under copper tape
- Ground Wires: Tinned copper
- Ground Check Conductor: 8 AWG 7-wire copper with yellow polypropylene insulation
- Jacket: PVC
TYPE 241 1.1kV ~ 11kV Rubber Screened Mining Cable
- Voltage: Type 241.1 – 1.1kV ; Type 241.3 – 3.3kV ; Type 241.6 – 6.6kV ; Type 241.11 – 11kV
- Conductor: Tinned annealed copper wires
- Core: 3Core
- Separator/Screen: 1.1kV: Paper separator; For other nominal voltages semi-conductive thermosetting compound over conductors
- Insulation: EPR type R-EP-90
- Insulation Screen: Semi-conductive thermosetting compound
- Cable Assembly: Three screened power and three earth cores laid up with right hand direction on cradle separator with central pilot core
- Inner Sheath: Semi-conductive thermosetting compound
- Earth Covering: Semi-conductive thermosetting compound
- Cradle Separator: Semi-conductive thermosetting compound
- Reinforcing Braid : Polyamide Yarns
- Sheath: CSP (Chlorosulfonated polyethylene) thermosetting compound; HD-90 – extra heavy duty, oil resistance and flame retardant
TYPE 240 1.1kV ~ 11kV Screened Mining Cable
- Voltage: Type 240.1 – 1.1kV ; Type 240.3 – 3.3kV ; Type 240.6 – 6.6kV ; Type 240.11 – 11kV
- Conductor: Tinned annealed copper wires
- Separator/Screen: 1.1kV: Paper separator; Other voltages: semi-conductive thermosetting compound
- Insulation: EPR type R-EP-90
- Insulation Screen: 1.1kV: Synthetic tape; From 3.3kV: Semi-conductive thermosetting compound
- Screen: Tinned copper/polyamide braid
- Interstitial Pilots: EPR covered flexible stranded tinned Copper
- Cable Assembly: 3x screened power cores with right hand lay up on cradle separator with 3x pilot cores
- Cradle Separator: Semi-conductive thermosetting compound
- Sheath: HD-PCP (Heavy Duty Polychloroprene) – extra heavy duty, oil resistance and flame retardant.
- Optional open polyamide braid between layer of sheathing
- Sheath Colour: Black
TYPE 245 1.1kV ~ 6.6kV Flexible Rubber Mining Cable
- Voltage: Type 245.1 – 1.1kV ; Type 245.3 – 3.3kV ; Type 245.6 – 6.6kV
- Conductor: Flexible stranded tinned annealed copper
- Conductor Screen: Semi-conductive compound for cables having a voltage rating of 3.3kV and above
- Insulation: EPR (Ethylene Propylene Rubber)
- Insulation Screen: Semi-conductive elastomer
- Cradle Separator: Semiconductive PCP (Polychloroprene)
- Central Extensible Pilot: EPR covered flexible stranded tinned copper
- Overall Core Screen: Semiconductive PCP (Polychloroprene) filling and covering
- Interstitial Earth Conductor: Semi-conductive PCP (Polychloroprene) covered flexible stranded tinned copper
- Reinforcing Braid: Open-weave yarns
- Sheath: Heavy duty PCP (Polychloroprene). (CPE/CSP sheath can be offered upon request)
- Sheath Colour: Black
