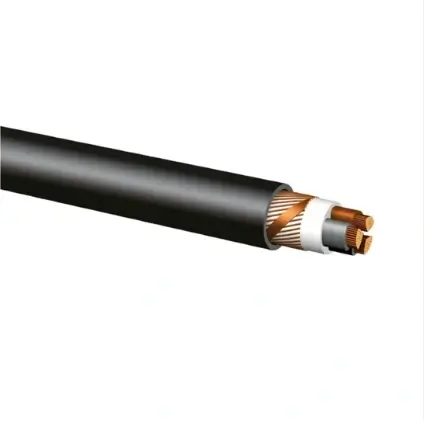

copper conductor: solid or stranded
Insulation: XLPE
Core identification acc. to VDE 0293
cores stranded concentrically
inner covering
concentric conductor, copper with counterhelix
outer sheath, PE, black
Application: For outdoor installation,in the ground, for power stations,industry and distribution boards or subscriber networks,where protection against contact voltage is required in thecase of mechanical damage. The cables are halogen-free,UV-resistant and particularly resistant due to the outer sheath made of HDPE. The cable is for installation in the ground or outside structures and is therefore not subject to the CPR. It cannot be classified as Eca or better.
| Product | Outer diameter approx.[mm] | Net weight approx.[kg/km] |
| N2XC2Y 2×4 RE/4 0,6/1kV | 15 | 300 |
| N2XC2Y 2×6 RE/6 0,6/1kV | 16 | 380 |
| N2XC2Y 2×10 RE/10 0,6/1kV | 18 | 540 |
| N2XC2Y 3×2,5 RE/2,5 0,6/1kV | 15 | 255 |
| N2XC2Y 3×4 RE/40,6/1kV | 16 | 335 |
| N2XC2Y 3×6 RE/6 0,6/1kV | 17 | 435 |
| N2XC2Y 3×10 RE/10 0,6/1kV | 19 | 625 |
| N2XC2Y 3×16 RE/16 0,6/1kV | 22 | 885 |
| N2XC2Y 3x25RM/16 0,6/1kV | 27 | 1305 |
| N2XC2Y 3x35SM/16 0,6/1kV | 27 | 1495 |
| N2XC2Y 3×50 SM/25 0,6/1kV | 30 | 1990 |
| N2XC2Y 3×70 SM/35 0,6/1kV | 34 | 2720 |
| N2XC2Y 3×95 SM/50 0,6/1kV | 39 | 3675 |
| N2XC2Y 3×120 SM/70 0,6/1kV | 42 | 4575 |
| N2XC2Y 3×150 SM/70 0,6/1kV | 47 | 5560 |
| N2XC2Y 3×185 SM/95 0,6/1kV | 51 | 6935 |
| N2XC2Y 3×240 SM/120 0,6/1kV | 56 | 8910 |
| N2XC2Y 4×2,5 RE/2,5 0,6/1kV | 16 | 300 |
| N2XC2Y 4×4 RE/4 0,6/1 kV | 17 | 410 |
| N2XC2Y 4×25 RM/16 0,6/1kV | 29 | 1590 |
| N2XC2Y 4×240 SM/120 0,6/1kV | 65 | 11390 |
| N2XC2Y 5×1,5 RE/1,5 0,6/1kV | 16 | 285 |
