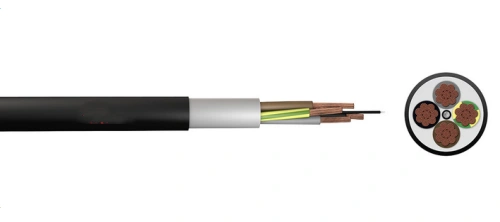

Application
Power and control cable for high mechanical requirements, frequently bendings in only one direction designed especially for festoon applications especially use in trolley systems, drag chains on moving parts of machines, conveyor facilities. Cables are suitable for both indoor and outdoor applications.
Rated voltage: 0.6/1 kV
Bending radius acc. to DIN VDE 0298-3:
– fixed installation: ≥ 4 x outer – Ø
– festoon application: ≥ 5 x outer – Ø
Reeling speed: ≤ 240 m/min
Ambient temperature:
fixed installation: -40 °C to 80 °C
flexible operation: -30 °C to 80 °C
Conductor: bare copper wires, finely stranded, class 5
Insulation: HEPR
Core arrangement: cores stranded in layers around central element
Inner sheath: synthetic rubber compound, type GM1b / EPDM acc. to DIN VDE 0207-21, filling the interstices
Outer sheath: Heavy duty rubber compound, type 5GM5
| n x mm² | Outer diameter min. – max. | Approximate cable weight |
| [mm] | [kg/km] | |
| 1×25 | 12-26 | 332 |
| 1×35 | 13-16 | 412 |
| 1×50 | 16-19 | 591 |
| 1×70 | 17-20 | 806 |
| 1×95 | 20-23 | 1051 |
| 1×120 | 21-24 | 1288 |
| 1×150 | 23-26 | 1580 |
| 1×185 | 26-29 | 1959 |
| 3×25 | 26-29 | 1349 |
| 3×35 | 29-32 | 1700 |
| 3×50 | 35-38 | 2389 |
| 3×70 | 38-41 | 3173 |
| 4×1,5 | 12-26 | 209 |
| 4×2,5 | 13-16 | 279 |
| 4×4 | 15-18 | 354 |
| 4×6 | 18-21 | 544 |
| 4×10 | 21-24 | 765 |
| 4×16 | 24-27 | 1096 |
| 4×25 | 29-32 | 1725 |
| 4×35 | 32-35 | 2110 |
| 4×50 | 38-41 | 2968 |
| 5×4 | 17-20 | 467 |
| 5×6 | 20-23 | 649 |
| 5×10 | 23-26 | 963 |
| 5×16 | 26-29 | 1324 |
| 5×25 | 32-35 | 2096 |
| 5×35 | 36-39 | 2670 |
| 12×1,5 | 18-22 | 483 |
| 18×1,5 | 21-25 | 691 |
| 24×1,5 | 24-28 | 931 |
| 7×2,5 | 17-21 | 485 |
| 12×2,5 | 20-24 | 671 |
| 16×2,5 | 23-27 | 881 |
| 18×2,5 | 24-28 | 967 |
| 24×2,5 | 29-33 | 1367 |
| 30×2,5 | 33-37 | 1774 |
| 36×2,5 | 33-37 | 1845 |
| 24×6 | 40-44 | 2765 |
| 3×25+3×16/3 | 30-33 | 1702 |
| 3×35+3×25/3 | 35-38 | 2329 |
| 3×50+3×25/3 | 35-38 | 2609 |
| 3×70+3×35/3 | 42-45 | 3812 |
