Fixed installation, direct burial; PVC cable with concentric, helical copper conductor and cross-conductive spiral

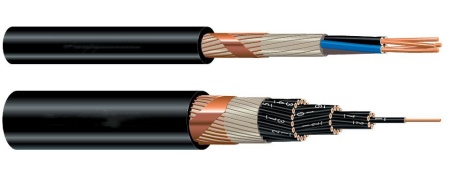

NYCY, <VDE>, PVC power cable acc. HD603 / VDE 0276-603, direct burial and fixed installation, building installation with concentric, helical copper conductor
Construction:
Bare copper wire conductor
Abbreviations “re”, “rm”, “se”, “sm”:
r = round conductor form;
s = sectorial conductor form;
e = single-wire conductor;
m = multi-wire conductor;
Core insulation: Based on PVC
Filling compound over the core assembly
Concentric, helical, outer conductor made of bare copper strands with inductance-reducing, cross-conductive copper bond counter
spiral
Outer sheath: Based on PVC
Nominal voltage Uo/U [V]:600/1000 V
Temperature range: During installation: -5°C to +50°C
Fixed installation: -40°C to +70°C
| Number of cores and mm² per conductor | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| 2 x 1,5re/1,5 | 14 | 52 | 245 |
| 3 x 1,5re/1,5 | 14 | 66 | 280 |
| 4 x 1,5re/1,5 | 15 | 81 | 302 |
| 7 x 1,5re/2,5 | 17 | 133 | 450 |
| 12 x 1,5re/2,5 | 20 | 205 | 580 |
| 24 x 1,5re/6 | 26 | 413 | 1100 |
| 3 x 2,5re/2,5 | 15 | 104 | 316 |
| 4 x 2,5re/2,5 | 16 | 128 | 360 |
| 7 x 2,5re/2,5 | 18 | 200 | 530 |
| 16 x 2,5re/6 | 23 | 451 | 950 |
| 4 x 4re/4 | 18 | 200 | 485 |
| 4 x 6re/6 | 19 | 297 | 616 |
| 2 x 2,5re/2,5 | 12.6 | 80 | 241 |
| 3 x 4re/4 | 15.3 | 161 | 384 |
| 3 x 6re/6 | 16.7 | 240 | 484 |
| 7 x 4re/4 | 18.7 | 315 | 621 |
