Huadong Cable Group offers steel wire ropes embedded crane pendant cable and industrial crane power cables for EOT cranes, overhead cranes.
1) Pendant round cable with dual strain relief steel ropes S05VVD7-F is made for heavy duty applications for pendant push button stations and moving electromechanical components.
2) PVC Flat cable anti-aging H07VVH6-F is particularly suitable for supply and control circuits, lifting and handling equipment.

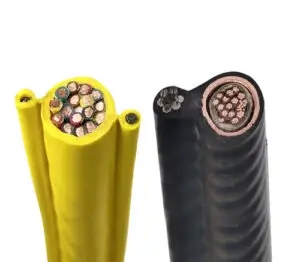

Steel Wire Ropes Embedded Crane Pendant Control Cable – SO5VVD7-F
Rated voltage: 300/500V
Conductor: Class 5/6 fine-stranded flexible Copper
Insulation: XLPE (Cross-linked Polyethylene)/ PVC
Lay UP: Cores in concentric layers
Tape: Textile
Suspension support: Galvanised steel wire ropes at both sides
Out Sheath: PVC (Polyvinyl Chloride)
Operating temperature: -5°C +70°C
Application: Suitable For Overhead cranes, EOT cranes, Gantry cranes, Jib cranes, Electric wire rope hoists, Pendant stations. This cable made for heavy duty applications in particular for pendant push button stations and moving electromechanical components. The two steel wire ropes are embedded, diametrically opposed to PVC sheathing. The rope cut into lengths and just hooked the steering control to avoid any stress on the cable.

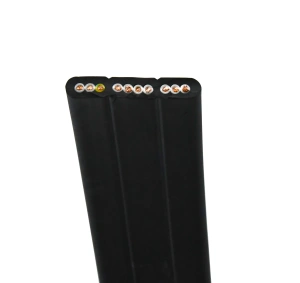

Festoon PVC Flat Cables ANTI-AGING HO7VVH6-F
Comply with CEI 20-22 I
(flame resistant)
Insulation class 2/3
Operational voltage: 450/750V
Sheathing colour: Black
Internal conductors with flexible PVC scheathing
progressively numbered, plus earth conductor
(yellow/green)
Operating temperature: -5 °C +70°C
Application: Huadong Cable Group supply Flat festoon cable suitable for Supply and Control circuits, Lifting Equipment, Cranes, Electric Hoists, Conveyors and other material handling equipment, Track System, Robots, Liquid painting plants, Transport dip pre-treatment plants. PVC Flat electric cable is oil and chemical resistant, can also be used continuous flexing applications, indoor and outdoor application. Recommended bend radius is three to five times of cable diameter.
| Crane Pendant round cable | ||||
| N° CROSS SECTION (Core X mm) | OUTER DIMENSIONS WIRE ROPE | STRAND n./ mm | APPROXIMATE WEIGHT gr/m | TOTAL CROSS SECTION mm² |
| 8X1,5 | 23,6 | 30XO,25 | 225 | 12 |
| 12X1,5 | 26,4 | 315 | 18 | |
| 16X1,5 | 28 | 415 | 24 | |
| 18X1,5 | 29 | 470 | 27 | |
| 20X1,5 | 30 | 525 | 30 | |
| 24X1,5 | 33 | 620 | 36 | |
| Flat Cable | ||||
| N° CROSS SECTION (Core X mm) | APPROXIMATE OUTER DIMENSIONS | STRAND n./ mm | APPROXIMATE WEIGHT gr/m | TOTAL CROSS SECTION mm² |
| 4X1,5 | 15X5,2 | 30X0,25 | 150 | 6 |
| 8X1,5 | 29X5,5 | 300 | 12 | |
| 12X1,5 | 41X5 | 420 | 18 | |
| 16X1,5 | 54X8 | 510 | 24 | |
| 18X1,5 | 43X11 | 700 | 27 | |
| 24X1,5 | 51X13 | 1,000 | 36 | |
| 4X2,5 | 21X5,7 | 50X0,25 | 240 | 10 |
| 8X2,5 | 33X6 | 420 | 20 | |
| 12×2.5 | 50X7 | 640 | 30 | |
| 16X2,5 | 41X13 | 1,000 | 40 | |
| 18X2,5 | 50X13 | 1,050 | 45 | |
| 24X2,5 | 54X13 | 1,100 | 60 | |
| 4X4 | 21X7,5 | 56X0,30 | 330 | 16 |
| 8X4 | 38X5 | 550 | 32 | |
| 4X6 | 24X8 | 84X0,30 | 440 | 24 |
| 8X6 | 38,5X8 | 742 | 48 | |
| 4X10 | 35X11 | 7X12X0.40 | 800 | 40 |
| 4X16 | 36,5X12 | 7X18X0,40 | 1,200 | 64 |
| 4×25 | 43X13 | 7X28X0,40 | 1,700 | 100 |
| 4X35 | 50X14 | 7X39X0,40 | 2,050 | 140 |
