Applications
Suitable for transport and distribution of electric power in installations where its required low smoke and halogen free emissions under fire conditions. These cables are adequate for buildings into different categories of fire hazard (public buildings, cinemas hospitals, etc). The 100% coverage screen, makes it suitable for installations where it is necessary avoid electrical interference of nearby circuits.
Nominal voltage: 0,6/1 kV

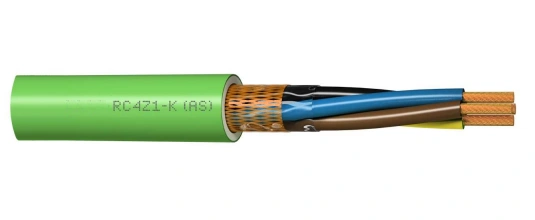

Conductor: Flexible electrolytic copper conductor (Class V)
Insulation: XLPE
Screen: Copper braid on polyester sheet.
Sheath: Thermoplastic polyolefin sheath
| Section(mm2) | External Diameter(mm) | Weight(kg/km) |
| 1×16 | 8,90 | 191 |
| 1×25 | 10,50 | 279 |
| 1×35 | 11,70 | 372 |
| 1×50 | 13,40 | 509 |
| 1×70 | 15,30 | 697 |
| 2×1,5 | 9,30 | 99 |
| 2×2,5 | 9,90 | 119 |
| 2×4 | 10,30 | 142 |
| 2×6 | 12,00 | 195 |
| 2×10 | 13,65 | 281 |
| 2×16 | 15,50 | 391 |
| 3G1,5 | 9,60 | 116 |
| 3G2,5 | 10,70 | 156 |
| 3G4 | 11,35 | 196 |
| 3G6 | 12,60 | 258 |
| 3G10 | 14,60 | 384 |
| 3×16 | 16,75 | 548 |
| 4G1,5 | 10,30 | 138 |
| 4G2,5 | 11,20 | 179 |
| 4G4 | 12,70 | 247 |
| 4G6 | 14,15 | 330 |
| 4G10 | 15,80 | 490 |
| 5G1,5 | 11,20 | 162 |
| 5G2,5 | 11,85 | 208 |
| 5G4 | 13,30 | 287 |
| 5G6 | 14,90 | 385 |
| 6G1,5 | 12,05 | 186 |
| 6G2,5 | 12,75 | 240 |
| 7G1,5 | 12,05 | 202 |
| 7G2,5 | 12,75 | 264 |
| 8G2,5 | 13,70 | 296 |
| 10G1,5 | 14,95 | 283 |
| 10G2,5 | 14,60 | 351 |
| 12G1,5 | 14,95 | 316 |
| 12G2,5 | 16,45 | 431 |
| 14G1,5 | 14,90 | 332 |
| 14G2,5 | 16,50 | 462 |
| 16G1,5 | 16,45 | 385 |
| 19G1,5 | 16,60 | 423 |
