APPLICATION

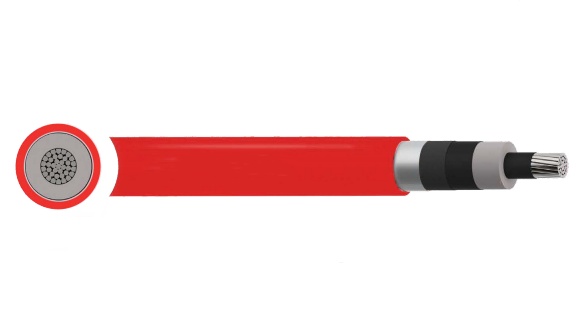

Mediu mvoltage aluminium cable with XLPE insulation and halogen free outer sheath.Longitudinal aluminium screen provides additional waterprotection.Suitable forpower distribution in multiple applications including renewable energy instalations. Extermal use or direct burial.
Voltage Rating Uo/U: 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 stranded Aluminium
Conductor Screen: Extruded hner Semi Conductor (Bonded Type)
Insulation: XLPE
Insulation Screen: Extruded Outer Semi Conductor (Strippable Type)
Tape: Semi Conductive water blocking Tape
Aluminium Tape: Applied Longitudinally
Sheath: PO (DMZ1 in accordance with HD 620)
Sheath Colour: Red
STANDARDS
HD 620 10E-6,IEC 60502-2,UNE 211620:2020
Halogen Free IEC 60754-1/2
Water Resistant EN60529- AD7
Climate Resistant HD 605 2.2.13
RH5Z1-OL / RH5Z1-2OL Cable Parameters
| 12/20KV | |||||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL INSULATION THICKNESS mm | NOMINAL SHEATH THICKNESS mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
| 1 | 50 | 4.9 | 2.75 | 29.3 | 782 |
| 1 | 95 | 4.9 | 2.75 | 32.4 | 1007 |
| 1 | 150 | 4.9 | 2.75 | 36 | 1278 |
| 1 | 185 | 4.9 | 2.75 | 36.9 | 1398 |
| 1 | 240 | 4.9 | 2.75 | 39.3 | 1626 |
| 1 | 400 | 4.9 | 2.75 | 44.2 | 2205 |
| 1 | 630 | 4.9 | 2.75 | 52.1 | 3208 |
| 18/30KV | |||||
| 1 | 50 | 7.25 | 2.75 | 34.3 | 1025 |
| 1 | 95 | 7.25 | 2.75 | 37.4 | 1272 |
| 1 | 150 | 7.25 | 2.75 | 41 | 1571 |
| 1 | 185 | 7.25 | 2.75 | 41.9 | 1701 |
| 1 | 240 | 7.25 | 2.75 | 44.3 | 1941 |
| 1 | 400 | 7.25 | 2.75 | 49.2 | 2561 |
| 1 | 630 | 7.25 | 2.75 | 57.1 | 3620 |
