APPLICATION
Halogen Free Medium voltage cables with additional waterblocking propertiesfordistributionnetworks;also for connection to generation units and plant and process connection.To be laid directly in ground, outdoors,indoors and in cable ducts.
RHZ1-OL (AS)-AL Cable
Voltage Rating : 8.7/15 (17.5) kV, 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 stranded aluminium
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material
Longitudinal Waterblocking: Water-swellable tape
Screen: Copper wires
Longitudinal Waterblocking: Water-swellable tape
Sheath: PO (Polylefin) DMZ2/ST8
STANDARDS: IEC 60502-2, Gen to HD 620 10E-5, EN 60228, Gen to UNE 211620:2020

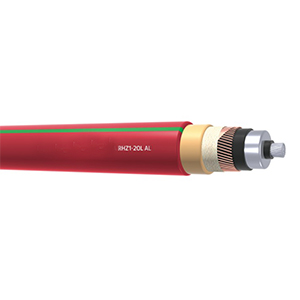

RHZ1-2OL (AS)-AL Cable
Voltage Rating: 8.7/15 (17.5) kV, 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 stranded aluminium with longitudinal water tightness
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material
Longitudinal Waterblocking: Water-swellable tape
Screen: Copper wires
Longitudinal Waterblocking: Water-swellable tape
Sheath: PO (Polylefin) DMZ2/ST8
STANDARDS: IEC 60502-2, Gen to HD 620 10E-5, EN 60228, Gen to UNE 211620:2020

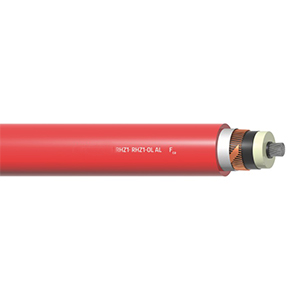

RHZ1-AL Cable
Voltage Rating: 8.7/15 (17.5) kV, 12/20(24) kV, 18/30(36) kV
Conductor: Class 2 stranded aluminium
Condutor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material
Screen: Copper wires
Sheath: PO (Polylefin) DMZ1 ST7
STANDARDS: IEC 60502-2, Gen to HD 620 10E-1, Gen to UNE 211620:2020
RHZ1-2OL-AL Cable
Voltage Rating: 8.7/15 (17.5) kV, 12/20(24) kV, 18/30(36) kV
Conductor: Class 2 stranded aluminium with longitudinal water tightness
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material
Longitudinal Waterblocking: Water-swellable tape
Screen: Copper wires
Longitudinal Waterblocking: Water-swellable tape
Sheath: PO (Polylefin) DMZ1 ST7
STANDARDS: IEC 60502-2, Gen to HD 620 10E-1, Gen to UNE 211620:2020
RHZ1-OL-AL Cable
Voltage Rating: 8.7/15 (17.5) kV, 12/20(24) kV, 18/30(36) kV
Conductor: Class 2 stranded aluminium
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material
Longitudinal Waterblocking: Water-swellable tape
Screen: Copper wires
Longitudinal Waterblocking: Water-swellable tape
Sheath: PO (Polylefin) Type DMZ1 ST7
STANDARDS: IEC 60502-2, Gen to HD 620 10E-1, Gen to UNE 211620:2020
RHZ1-OL (S)-AL Cable
Voltage Rating: 8.7/15 (17.5) kV, 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 stranded aluminium
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material
Longitudinal Waterblocking: Water-swellable tape
Screen: Copper wires
Longitudinal Waterblocking: Water-swellable tape
Sheath: PO (Polylefin) DMZ2/ST8
STANDARDS: IEC 60502-2, Gen to HD 620 10E-4, EN 60228, Gen to UNE 211620:2020
RHZ1-2OL (S)-AL Cable
Voltage Rating: 8.7/15 (17.5) kV, 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 stranded aluminium with longitudinal water tightness
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material
Longitudinal Waterblocking: Water-swellable tape
Screen: Copper wires
Longitudinal Waterblocking: Water-swellable tape
Sheath: PO (Polylefin) DMZ2/ST8
STANDARDS: IEC 60502-2, Gen to HD 620 10E-4, EN 60228, Gen to UNE 211620:2020
RHZ1 (AS) Cable
Voltage Rating: 6/10 (12)kV, 8.7/15 (17.5) kV, 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 Stranded Copper
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material (bonded)
Screen: Copper wires and copper tape
Outer Sheath: LSZH
STANDARDS: IEC 60502-2, IEC 60228, Generally to HD620 10E-1
RHZ1 Cable
Voltage Rating: 6/10 (12)kV, 8.7/15 (17.5)kV, 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 Stranded Copper
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material (bonded)
Screen: Copper wires and copper tape
Outer Sheath: MDPE (Medium Density Polyethylene)
STANDARDS: IEC 60502-2, IEC 60228, Generally to HD620 10E-1
RHZ1-OL (AS) Cable
Voltage Rating: 6/10(12)kV, 8.7/15 (17.5) kV, 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 Stranded Copper
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material (bonded)
Longitudinal Waterblocking: Semi-conductive swellable tape
Screen: Copper wires and copper tape
Longitudinal Waterblocking: Swellable Tapes
Outer Sheath: LSZH
STANDARDS: IEC 60502-2, IEC 60228, Generally to HD620 10E-1
RHZ1-OL (S) Cable
Voltage Rating: 6/10(12)kV, 8.7/15 (17.5) kV, 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 Stranded Copper
Conductor Screen: Semi-conductive material
Insulation: XLPE (Cross-Linked Polyethylene)
Insulation Screen: Semi-conductive material (bonded)
Longitudinal Waterblocking: Semi-conductive swellable tape
Screen: Copper wires and copper tape
Longitudinal Waterblocking: Swellable Tapes
Outer Sheath: LSZH (Low Smoke Zero Halogen)
STANDARDS: IEC 60502-2, IEC 60228, Generally to HD620 10E-1
RHZ1-OL Cable
Voltage Rating: 6/10 (12)kV, 8.7/15 (17.5) kV, 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 Stranded Copper
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material (bonded)
Longitudinal Waterblocking: Semi-conductive swellable tape
Screen: Copper wires and copper tape
Longitudinal Waterblocking: Swellable Tapes
Outer Sheath: MDPE (Medium Density Polyethylene)
STANDARDS: IEC 60502-2, IEC 60228, Generally to HD620 10E-1
