RZ1 / RZ1-K / RZ1-K (AS) XLPE LSZH Flexible Cable

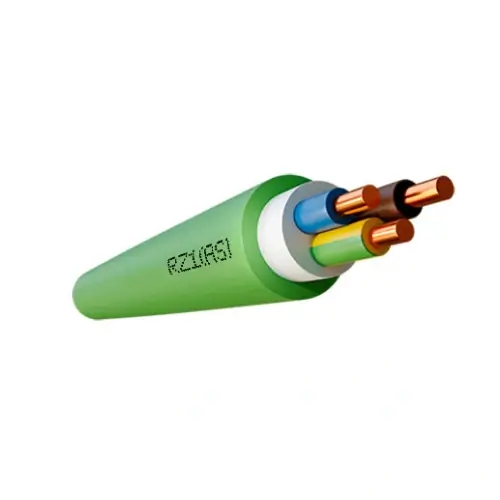

RZ1 Cable

Application: Distribution networks, utilities connections, open-air or underground installations.

Conductor: Class 2 aluminium conductor according to BS EN 60228 (previously BS 6360)
Insulation: XLPE Type DIX-3 according to HD 603-1
Sheath: LSZH Type DM01 according to HD 603-5

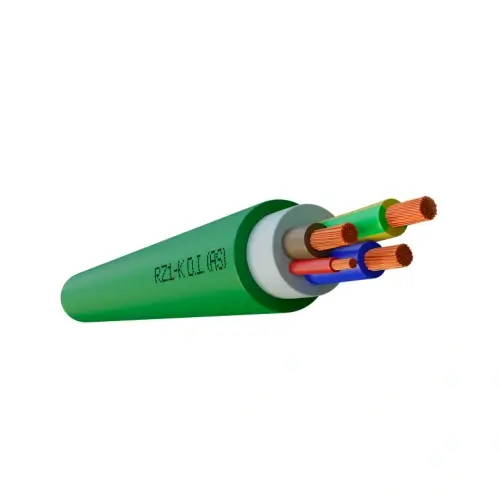

RZ1-K 0,6/1 kV LSZH Flexible Cable

Application: Flexible power and control cables for internal or external fixed applications. Flexible conductors facilitate installations with sinuous courses.

Conductor:Class 5 flexible copper conductor
Insulation: XLPE
Sheath: LSZH

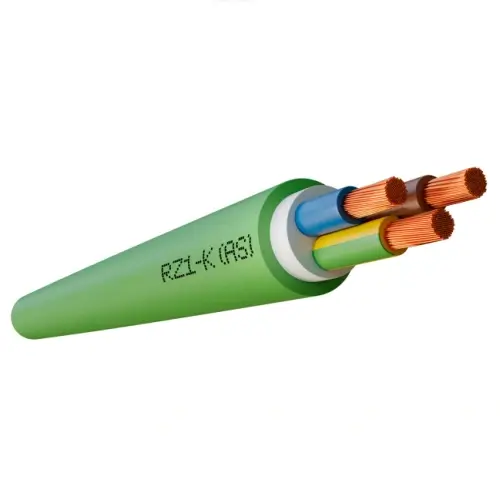

RZ1-K (AS) 1.8/3kV LSZH Flexible Cable

Application:Single Core flame retardant LSZH flexible power cable suitable for fixed installations in public and high traffic areas.

Conductor:Class 5 flexible copper conductor
Insulation: XLPE
Sheath: LSZH type ST8 (to IEC 60502-1) and type DMZ-E (to UNE 21123-4)

RZ1 Cable Data table

RZ1 Cable
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO. OF CORES	mm2	kg/km
1	16	85
1	25	124
1	35	153
1	50	200
1	70	265
1	95	340
1	120	420
1	150	515
1	185	645
1	240	825
1	300	1035

Get a free quote by e-mail: sales@huadongcablegroup.com

RZ1-K 0.6/1kV Cable Data table

RZ1-K 0.6/1kV Cable
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO. OF CORES	mm2	kg/km
1	2.5	45
1	4	61
1	6	80
1	10	120
1	16	174
1	25	258
1	35	349
1	50	484
1	70	676
1	95	885
1	120	1124
1	150	1393
1	185	1655
1	240	2214
1	300	2697
1	400	3389
1	500	4776
1	630	6276
2	1.5	94
2	2.5	122
2	4	165
2	6	216
2	10	319
2	16	503
3+E	1.5	108
3+E	2.5	144
3+E	4	198
3+E	6	263
3+E	10	405
3	16	638
3	25	938
3	35	1255
3	50	1730
3	70	2422
4+E	1.5	129
4+E	2.5	175
4+E	4	243
4+E	6	328
4+E	10	498
4	16	783
4	25	1168
4	35	1573
4	50	2178
4	70	3055
4	95	3985
4	120	5086
4	150	6294
4	185	7534
4	240	10034
5	1.5	150
5	2.5	204
5	4	286
5	6	387
5	10	598
5	16	931
5	25	1407
5	35	1091
5	50	2654
