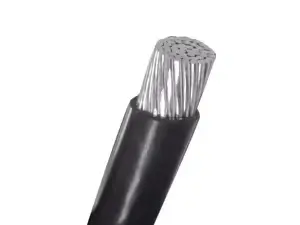

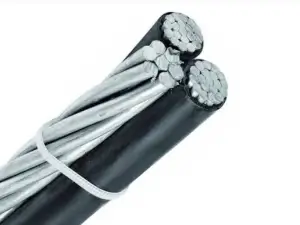

single/duplex/triplex/quadruplex Service drop cable
Check Our Production Videos:
If you have other requirement, Please, we will manufacture it according to your request.
Service drop cable feature
Voltage: 0.6/1Kv
Type: Single/duplex/triplex/quadruplex
Phase conductor: Aluminum(AAC)
Neutral messenger: AAC/AAAC/ACSR
Insulated: PE/PVC/XLPE/LEPE/HDPE
Color: Black or as your request.
Standards: IECA or according to your requirement
Packaging: Wooden or Wooden Iron Drum.
Application: Overhead power transmission

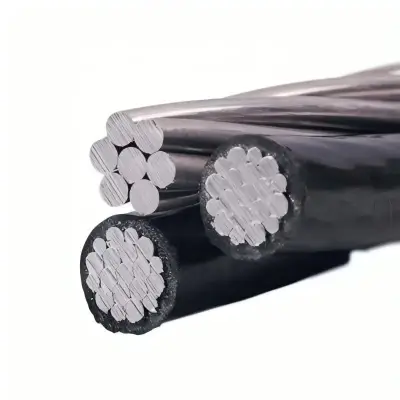

American Standard Service Drop Cable:

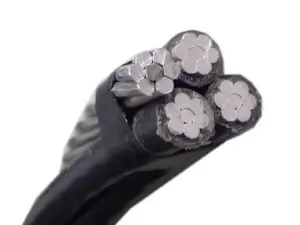

Quadruplex/Triplex/Duplex Service Drop Cable Parameter List
| Quadruplex -AAC Conductor & Neutral Messenger | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Code Word | AAC Phase Conductor | AAC Neutral Messenger | Weight | Ampacity | ||||||
| AWG or Kcmil | No of Strands | Insulation thickness | AWG or Kcmil | No of Strands | Breaking Strength | Pe | Xlpe | Pe | Xlpe | |
| Mils | Lbs | Lbs/Mft | Lbs/Mft | 70°C | 90°C | |||||
| Haiotis | 6 | 1 | 45 | 6 | 7 | 563 | 100.6 | 103.8 | 59 | 69 |
| Petella | 6 | 7 | 45 | 6 | 7 | 563 | 107.8 | 111.7 | 59 | |
| Fusus | 4 | 1 | 45 | 4 | 7 | 881 | 149.4 | 153.2 | 78 | 91 |
| Oyster | 4 | 7 | 45 | 4 | 7 | 881 | 159 | 163.9 | 78 | |
| Clam | 2 | 7 | 45 | 2 | 7 | 1350 | 239.7 | 245.9 | 106 | 123 |
| Snail | 1/0 | 7 | 60 | 1/0 | 7 | 1350 | 387 | 397.6 | 143 | 167 |
| Murex | 1/0 | 7 | 60 | 1/0 | 7 | 1990 | 387 | 397.6 | 143 | |
| Purpura | 1/0 | 19 | 60 | 1/0 | 7 | 1990 | 382.4 | 392.4 | 143 | |
| Nassa | 2/0 | 7 | 60 | 2/0 | 7 | 2510 | 476.7 | 488.6 | 165 | 193 |
| Trophon | 2/0 | 19 | 60 | 2/0 | 7 | 2510 | 470.9 | 482.1 | 165 | |
| Melita | 3/0 | 19 | 60 | 3/0 | 19 | 3310 | 581.3 | 593.9 | 192 | 224 |
| Portunus | 4/0 | 19 | 60 | 4/0 | 19 | 4020 | 719.4 | 733.7 | 224 | 262 |
| Nannynose | 336.4 | 19 | 80 | 336.4 | 19 | 6146 | 1161.7 | 1185.5 | 295 | 345 |
Please check the specification, our competitive price will send you in 12 hours.
| Quadruplex Service Drop-Alloy | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code* Word | Phase Conductor | Bare | Weight | Allowable | |||||||
| Neutral Messenger | Per 1000 ft.(lbs.) | Ampacities+ | |||||||||
| Size(AWG or kcmil) | Strand- ing | Insul. Thick. (mils) | Equiv. Dia. (AWG)++ | Size++ (kcmil) | Strand- ing | Rated Strength (lbs). | XLP | POLY | XLP | POLY | |
| 6201 ALLOY NEUTRAL-MESSENGER | |||||||||||
| Bay | 6 | 1 | 45 | 6 | 30.58 | 7 | 1110 | 137 | 137 | 75 | 60 |
| French Coach | 6 | 7 | 45 | 6 | 30.58 | 7 | 1110 | 146 | 146 | 75 | 60 |
| German Coach | 4 | 1 | 45 | 4 | 48.69 | 7 | 1760 | 205 | 205 | 100 | 80 |
| Arabian | 4 | 7 | 45 | 4 | 48.69 | 7 | 1760 | 217 | 217 | 100 | 80 |
| Belgian | 2 | 7 | 45 | 2 | 77.47 | 7 | 2800 | 328 | 328 | 135 | 105 |
| Shetland | 1/0 | 9 | 60 | 1/0 | 123.3 | 7 | 4460 | 519 | 519 | 180 | 140 |
| Thoroughbred | 2/0 | 11 | 60 | 2/0 | 155.4 | 7 | 5390 | 639 | 639 | 205 | 160 |
| Trotter | 3/0 | 17 | 60 | 3/0 | 195.7 | 7 | 6790 | 789 | 789 | 235 | 185 |
| Walking | 4/0 | 18 | 60 | 4/0 | 246.9 | 7 | 8560 | 977 | 977 | 275 | 210 |
Please check the specification, our competitive price will send you in 12 hours.
| Quadruplex Service Drop-ACSR | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Code* Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000 ft.(Ibs.) | Allowable Ampacities+ | ||||||
| Size (AWG or kcmil) | Strand-ing | Insul. Thick. (mils) | Size (AWG or kcmil) | Strand-ing | Rated Strength (Ibs). | XLP | POLY | XLP | POLY | |
| ACSR NEUTRAL-MESSENGER | ||||||||||
| Morochuca | 6 | 1 | 45 | 6 | 6/1 | 1190 | 145 | 145 | 75 | 60 |
| Chola | 6 | 7 | 45 | 6 | 6/1 | 1190 | 153 | 153 | 75 | 60 |
| Morgan | 4 | 1 | 45 | 4 | 6/1 | 1860 | 217 | 217 | 100 | 80 |
| Hackney | 4 | 7 | 45 | 4 | 6/1 | 1860 | 229 | 229 | 100 | 80 |
| Palomino | 2 | 7 | 45 | 2 | 6/1 | 2850 | 347 | 347 | 135 | 105 |
| Costena | 1/0 | 9 | 60 | 1/0 | 6/1 | 4380 | 549 | 549 | 180 | 140 |
| Grullo | 2/0 | 11 | 60 | 2/0 | 6/1 | 5310 | 677 | 677 | 205 | 160 |
| Suffolk | 3/0 | 17 | 60 | 3/0 | 6/1 | 6620 | 837 | 837 | 235 | 185 |
| Appaloosa | 4/0 | 18 | 60 | 4/0 | 6/1 | 8350 | 1038 | 1038 | 275 | 210 |
| Gelding | 336.4 | 19 | 80 | 4/0 | 6/1 | 8350 | 1494 | 1494 | 370 | 280 |
| Bronco | 336.4 | 19 | 80 | 336.4 | 18/1 | 8680 | 1568 | 1568 | 370 | 280 |
Please check the specification, our competitive price will send you in 12 hours.
| Code* Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000 | Allowable Ampacities+ | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size (awg/kcmil） | Strand- ing | Insul. Thick. (mils) | Size (AWG/kcmil) | Strand- ing | Rated Strength (lbs). | XLP | POLY | XLP | POLY | |
| AAC Neutral-Messenger | ||||||||||
| Patella | 6 | 7 | 45 | 6 | 7 | 563 | 103 | 103 | 85 | 70 |
| Oyster | 4 | 7 | 45 | 4 | 7 | 881 | 154 | 154 | 115 | 90 |
| Clam | 2 | 7 | 45 | 2 | 7 | 1350 | 233 | 233 | 150 | 120 |
| Murex | 1/0 | 7 | 60 | 1/0 | 7 | 1990 | 374 | 374 | 205 | 160 |
| Purpura | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 368 | 368 | 205 | 160 |
| Nassa | 2/0 | 7 | 60 | 2/0 | 7 | 2510 | 462 | 462 | 235 | 185 |
| Melita | 3/0 | 17 | 60 | 3/0 | 19 | 3310 | 562 | 562 | 275 | 215 |
| Portunus | 4/0 | 18 | 60 | 4/0 | 19 | 4020 | 696 | 696 | 315 | 245 |
| Nannynose | 336.4 | 19 | 80 | 336.4 | 19 | 6146 | 1118 | 1118 | 420 | 325 |
Please check the specification, our competitive price will send you in 12 hours.
| Code* Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000 | Allowable Ampacities+ | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Strand- ing | Insul. Thick. (mils) | Equiv. Dia. (AWG)++ | Size（ AWG kcmil) | Strand- ing | Rated Strength (lbs). | XLP | POLY | XLP | POLY | |
| 6201 Alloy Neutal-Messenger | |||||||||||
| Minex | 6 | 1 | 45 | 6 | 30.58 | 7 | 1110 | 101 | 101 | 85 | 70 |
| Hippa | 6 | 7 | 45 | 6 | 30.58 | 7 | 1110 | 107 | 107 | 85 | 70 |
| Prawn | 4 | 1 | 45 | 4 | 48.69 | 7 | 1760 | 152 | 152 | 115 | 90 |
| Barnacle | 4 | 7 | 45 | 4 | 48.69 | 7 | 1760 | 160 | 160 | 115 | 90 |
| Shrimp | 2 | 7 | 45 | 2 | 77.47 | 7 | 2800 | 243 | 243 | 150 | 120 |
| Gammarus | 1/0 | 7 | 60 | 1/0 | 123.3 | 7 | 4460 | 390 | 390 | 205 | 160 |
| Leda | 1/0 | 9 | 60 | 1/0 | 123.3 | 7 | 4460 | 384 | 384 | 205 | 160 |
| Dungenese | 2/0 | 7 | 60 | 2/0 | 155.4 | 7 | 5390 | 483 | 483 | 235 | 185 |
| Cyclops | 2/0 | 11 | 60 | 2/0 | 155.4 | 7 | 5390 | 474 | 474 | 235 | 185 |
| Flustra | 3/0 | 17 | 60 | 3/0 | 195.7 | 7 | 6790 | 587 | 587 | 275 | 215 |
| Lepas | 4/0 | 18 | 60 | 4/0 | 246.9 | 7 | 8560 | 728 | 728 | 315 | 245 |
| 6201 Alloy Reduced Neutral-Messenger | |||||||||||
| Artemia | 4 | 1 | 45 | 6 | 30.58 | 7 | 1110 | 135 | 135 | 115 | 90 |
| Crab | 4 | 7 | 45 | 6 | 30.58 | 7 | 1110 | 143 | 143 | 115 | 90 |
| Solaster | 2 | 7 | 45 | 4 | 48.69 | 7 | 1760 | 216 | 216 | 150 | 120 |
| Sandcrab | 1/0 | 7 | 60 | 2 | 77.47 | 7 | 2800 | 347 | 347 | 205 | 160 |
| Echinus | 1/0 | 9 | 60 | 2 | 77.47 | 7 | 2800 | 341 | 341 | 205 | 160 |
| Fulgar | 3/0 | 17 | 60 | 1/0 | 123.3 | 7 | 4460 | 519 | 519 | 275 | 215 |
| Arca | 4/0 | 18 | 60 | 2/0 | 155.4 | 7 | 5390 | 643 | 643 | 315 | 245 |
Please check the specification, our competitive price will send you in 12 hours.
| Code* Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000 | Allowable Ampacities+ | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size (awg/kcmil） | Strand- ing | Insul. Thick. (mils) | Size (AWG/kcmil) | Strand- ing | Rated Strength (lbs). | XLP | POLY | XLP | POLY | |
| ACSR Neutral-Message | ||||||||||
| Paludina | 6 | 1 | 45 | 6 | 6/1 | 1190 | 109 | 109 | 85 | 70 |
| Voluta | 6 | 7 | 45 | 6 | 6/1 | 1190 | 114 | 114 | 85 | 70 |
| Whelk | 4 | 1 | 45 | 4 | 6/1 | 1860 | -- | 164 | 115 | 90 |
| Periwinkle | 4 | 7 | 45 | 4 | 6/1 | 1860 | 172 | 172 | 115 | 90 |
| Conch | 2 | 7 | 45 | 2 | 6/1 | 2850 | 262 | 262 | 150 | 120 |
| Neritina | 1/0 | 7 | 60 | 1/0 | 6/1 | 4380 | 420 | 420 | 205 | 160 |
| Cenia | 1/0 | 9 | 60 | 1/0 | 6/1 | 4380 | 414 | 414 | 205 | 160 |
| Runcina | 2/0 | 7 | 60 | 2/0 | 6/1 | 5310 | 520 | 520 | 235 | 185 |
| Triton | 2/0 | 11 | 60 | 2/0 | 6/1 | 5310 | 512 | 512 | 235 | 185 |
| Mursia | 3/0 | 17 | 60 | 3/0 | 6/1 | 6620 | 635 | 635 | 275 | 215 |
| Zuzara | 4/0 | 18 | 60 | 4/0 | 6/1 | 8350 | 789 | 789 | 315 | 245 |
| Limpet | 336.4 | 19 | 80 | 336.4 | 18/1 | 8680 | 1167 | 1167 | 420 | 325 |
| ACSR Reduced Neutral-Message | ||||||||||
| Scallop | 4 | 1 | 45 | 6 | 6/1 | 1190 | -- | 142 | 115 | 90 |
| Strombus | 4 | 7 | 45 | 6 | 6/1 | 1190 | 151 | 151 | 115 | 90 |
| Cockle | 2 | 7 | 45 | 4 | 6/1 | 1860 | 228 | 228 | 150 | 120 |
| Janthina | 1/0 | 7 | 60 | 2 | 6/1 | 2853 | 366 | 366 | 205 | 160 |
| Ranella | 1/0 | 9 | 60 | 2 | 6/1 | 2853 | 360 | 360 | 205 | 160 |
| Cavolinia | 2/0 | 7 | 60 | 1 | 6/1 | 3550 | 453 | 453 | 235 | 185 |
| Clio | 2/0 | 11 | 60 | 1 | 6/1 | 3550 | 444 | 444 | 235 | 185 |
| Aega | 3/0 | 17 | 60 | 1/0 | 6/1 | 4380 | 549 | 549 | 275 | 215 |
| Cerapus | 4/0 | 18 | 60 | 2/0 | 6/1 | 5310 | 681 | 681 | 315 | 245 |
Please check the specification, our competitive price will send you in 12 hours.

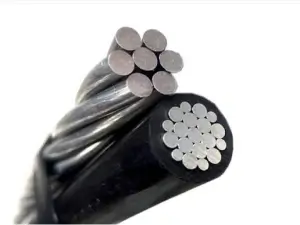

| Duplex Service Drop-AAC | ||||||||||
| Code* Word | Phase Conductor | Bare | Weight | Allowable | ||||||
| Neutral Messenger | Per 1000 ft.(lbs.) | Ampacities+ | ||||||||
| Size (AWG or kcmil) | Strand- ing | Insul. Thick. (mils) | Size (AWG or kcmil) | Strand- ing | Rated Strength | XLP | POLY | XLP | POLY | |
| AAC NEUTRAL-MESSENGER | ||||||||||
| Pekingese | 6 | 1 | 45 | 6 | 7 | 563 | 61 | 61 | 85 | 70 |
| Collie | 6 | 7 | 45 | 6 | 7 | 563 | 64 | 64 | 85 | 70 |
| Dachshund | 4 | 1 | 45 | 4 | 7 | 881 | 92 | 92 | 115 | 90 |
| Spaniel | 4 | 7 | 45 | 4 | 7 | 881 | 96 | 96 | 115 | 90 |
| Doberman | 2 | 7 | 45 | 2 | 7 | 1350 | 147 | 147 | 150 | 120 |
| malumute | 1/0 | 9 | 60 | 1/0 | 19 | 1990 | 234 | 234 | 205 | 160 |
Please check the specification, our competitive price will send you in 12 hours.
| Deplex Service Cable-AAAC | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code* Word | Phase Conductor | Bare | Weight | Allowable | |||||||
| Neutral Messenger | Per 1000 ft.(lbs.) | Ampacities+ | |||||||||
| Size(AWG or kcmil) | Strand- ing | Insul. Thick. (mils) | Equiv. Dia. (AWG)++ | Size++ (kcmil) | Strand- ing | Rated Strength (lbs). | XLP | POLY | XLP | POLY | |
| 6201 ALLOY NEUTRAL-MESSENGER | |||||||||||
| Chihuahua | 6 | 1 | 45 | 6 | 7 | 7 | 1110 | 65 | 65 | 85 | 70 |
| Vizsia | 6 | 7 | 45 | 6 | 7 | 7 | 1110 | 68 | 68 | 85 | 70 |
| Harrier | 4 | 1 | 45 | 4 | 7 | 7 | 1760 | 99 | 99 | 115 | 90 |
| Whippet | 4 | 7 | 45 | 4 | 7 | 7 | 1760 | 103 | 103 | 115 | 90 |
| Schnauzer | 2 | 7 | 45 | 2 | 7 | 7 | 2800 | 157 | 157 | 150 | 120 |
| Heeler | 1/0 | 9 | 60 | 1/0 | 7 | 7 | 4460 | 250 | 250 | 205 | 160 |
Please check the specification, our competitive price will send you in 12 hours.
| Duplex Service Drop-acsr | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Code* Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000 ft.(Ibs.) | Allowable Ampacities+ | ||||||
| Size (AWG or kcmil) | Strand-ing | Insul. Thick. (mils) | Size (AWG or kcmil) | Strand-ing | Rated Strength (Ibs). | XLP | POLY | XLP | POLY | |
| ACSR NEUTRAL-MESSENGER | ||||||||||
| Setter | 6 | 1 | 45 | 6 | 6/1 | 1190 | 72 | 72 | 85 | 70 |
| Shepherd | 6 | 7 | 45 | 6 | 6/1 | 1190 | 75 | 75 | 85 | 70 |
| Eskimo | 4 | 1 | 45 | 4 | 6/1 | 1860 | 110 | 110 | 115 | 90 |
| Terrier | 4 | 7 | 45 | 4 | 6/1 | 1860 | 115 | 115 | 115 | 90 |
| Chow | 2 | 7 | 45 | 2 | 6/1 | 2850 | 176 | 176 | 150 | 120 |
| Bull | 1/0 | 9 | 60 | 1/0 | 6/1 | 4380 | 280 | 280 | 205 | 160 |
Please check the specification, our competitive price will send you in 12 hours.
