Professional interlocked armoured power cable manufacturer from China, Meet your kinds of requirement of cables. With over 30 years production experience and 15 years export experience, factory price without any third party.
The welding cable size can be customized according to your requirement, On-time delivery.
Product highlights:
Single Conductor 1kV Teck 90 is a CSA approved armoured cable for Industrial and Commercial applications. FT4, -40C, HL, AG14 and 90°C rated for use in harsh Canadian environments.
Rated for installation in cable trays, duct banks, direct burial, troughs, hazardous locations, continuous rigid cable supports, and concrete encaseable. CSA AG14 Acid Gas compliance.
Starting custom your ideal cable size by E-mail: sales@www.huadongcablegroup.com

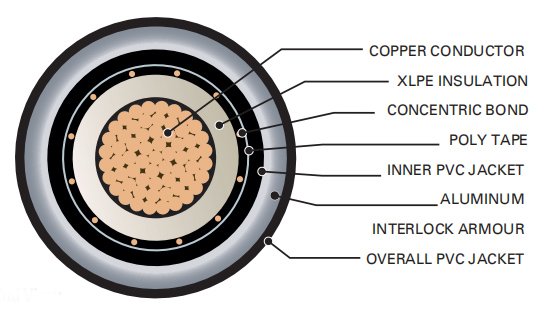

Product Construction:
Conductor:
- Class B stranded copper
– compressed or compact
– in accordance with ASTM B3 and ASTM B8
Insulation:
- XLPE (Cross Linked Polyethylene)
- Minimum Average Thickness: 250 kcmil to 1000 kcmil
– 0.090 inches (2.3 mm)
- 90°C rated
Concentric Bonding Conductors:
- Class B concentric bare copper wire serve
Inner Jacket:
- Black PVC
- Thickness – 250 kcmil to 1000 kcmil = 0.060″ (1.5 mm)- minimum average
Armour:
- Aluminum Interlocked Armour (AIA)
Overall Jacket:
- Black PVC (optional colours available)
- Minimum Thickness:
– 250 kcmil to 400 kcmil = 0.050 inches (1.3 mm)
– 500 kcmil to 1000 kcmil = 0.060 inches (1.5 mm)
Operating Temperatures:
- -40°C – CSA Cold Bend and Impact Temperature
- -25°C – Min. Installation Temperature
- 90°C – Max Continuous Operating Temperature
Starting custom your ideal cable size by E-mail: sales@www.huadongcablegroup.com
Why Choose Us?
We have 4 cable workshops, everyone about 10000 square meters, 20 sets advanced cable produce equipment, 20 high technology engineers, 150 staffs, Every production process has been strictly checked by our professional technical engineers.
Starting custom your ideal cable size by E-mail: sales@www.huadongcablegroup.com
Package & Delivery: Power cable package by iron or wooden drum or according to client’s requriement.
Customer Case：Our cable products have been exported to more than 30 countries, such as: Russian, America, Yemen, South America, North America, Middle East, Africa, Asia,Oceania countries and etc.
