Applications

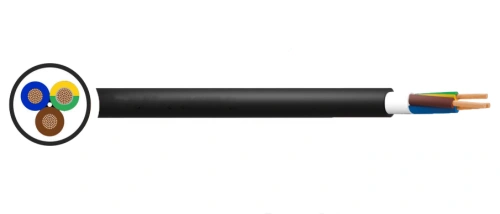

LSZH Power cable with increased tolerance to torsion application and offering oil, UV and ozone resistance. Specifically designed for torsion applications in wind turbines and suitable for transmit
energy from the generator to the transformer.
Rated Voltage Uo/U: 0.6/1kV
Temperature Rating: -40°C +90°C
Conductor: Cass 5/Class 6 Stranded Tinned Copper
Insulation: EPR (Ethylene Propylene Rubber)
Sheath: HF-XLEVA (Halogen Free Cross-linked Ethylene-Vinyl Acetate)
Sheath Colour: Black
STANDARDS:
IEC 60502-1, IEC 60228, CSA C22.2
Flame retardant according to IEC 60332-1, IEC 60332-3 Low
Smoke Zero Halogen according to IEC 60754, IEC 61034
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA SIZE | NOMINAL WEIGHT |
| mm² | kg/100m | |
| 3 | 25 | 1500 |
| 3 | 35 | 1960 |
| 3 | 50 | 2640 |
| 3 | 70 | 3150 |
| 3 | 95 | 4575 |
| 3 | 120 | 5490 |
| 4 | 25 | 1870 |
| 4 | 35 | 2320 |
| 4 | 50 | 3100 |
| 4 | 70 | 4240 |
| 4 | 95 | 5716 |
| 4 | 120 | 6950 |
