600 Volt, 105°C Flexible Cord. Premium Oil Resistance, Sunlight, Water Resistance and Flame Retardant, UL / CSA listed.
Application & Features
Type SEOOW Flexible Cords are permitted for indoor and outdoor temporary power uses, portable industrial machinery and compressors, food processing and washdown facilities. Type SEOOW Cords are suitable for use in temperatures between -60°C to maximum 105°C.

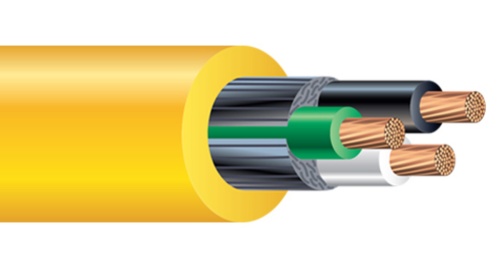

Construction:
1 Flexible stranded copper conductors
2 Color coded TPE rubber insulation cabled with fillers as needed.
3 A separator applied over conductors and fillers.
4 Overall TPE Rubber jacket
Standards & References
1 UL 62 Flexible Cords and Cables
2 CSA C22.2 No. 49 Flexible Cords and Cables
3 Passes CSA FT2 Flame Test
4 RoHS-2 (European Directive 2011/65/EU)
5 NEC Article 400 Flexible Cords, Cables and Fixture Wire
6 NEC Article 501.140 Class I Division 2
| Size (AWG or kcmil) | No. of Conductors | No. of Strands | Nom. OD (mils) | Nominal Total Weight (lbs/1000′) | Conductor Colors |
| 16 AWG | 5 | 26 | 503 | 132 | BLACK/WHITE/RED/GREEN/ORANGE |
| 16 AWG | 10 | 26 | 638 | 212 | |
| 16 AWG | 12 | 26 | 691 | 258 | |
| 12 AWG | 3 | 65 | 592 | 185 | BLACK/WHITE/GREEN |
| 12 AWG | 3 | 65 | 592 | 185 | BLACK/WHITE/GREEN |
| 10 AWG | 7 | 104 | 845 | 469 | BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK |
