Applications

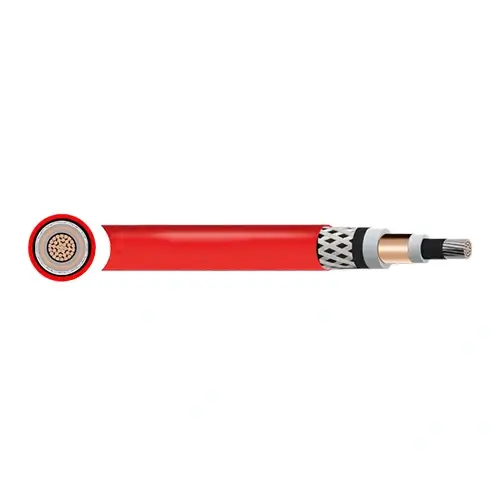

A flame-retardant and halogen-free medium voltage cable designed for fixed installation, suitable for conditions on vessels of any size. For use in a wide range of temperatures, saline atmospheres and where UV radiation is present, according to the IEC60092 series.
Voltage Rating: 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV, 18/30kV
Temperature Rating: +90°C
Conductor: Flexible Copper
Conductor Screen: HF (Halogen Free) extruded compound
Insulation: HEPR HF (Hard Ethylene Propylene Rubber Halogen Free) Compound
Insulation Screen: HF (Halogen Free) extruded compound
Core Screen: Plain copper tape
Bedding: Fiberglass Tape + Fiberglass Ropes (+ HEPR layer for multicores)
Inner Sheath: SHF1 compound
Armour: Plain copper wire braid
Outer Sheath: SHF1 compound
Core Identification:
1 core: Off White
3 core: Off White (coloured or numbered tapes)
Outer Sheath Colour: Red
| 3.6/6kV | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL WEIGHT kg/km |
| 1 | 25 | 890 |
| 1 | 35 | 1020 |
| 1 | 50 | 1160 |
| 1 | 70 | 1500 |
| 1 | 95 | 1850 |
| 1 | 120 | 2130 |
| 1 | 150 | 2450 |
| 1 | 185 | 2900 |
| 1 | 240 | 3670 |
| 1 | 300 | 4370 |
| 3 | 25 | 2840 |
| 3 | 35 | 3240 |
| 3 | 50 | 3850 |
| 3 | 70 | 4780 |
| 3 | 95 | 5800 |
| 3 | 120 | 6730 |
| 3 | 150 | 7840 |
| 3 | 185 | 9180 |
| 3 | 240 | 11780 |
For other voltage sizes, please send an email directly: sales@huadongcablegroup.com
