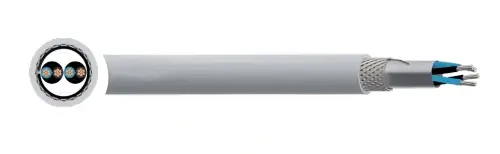

XAI(c) (331) collectively screened Instrumentation Cable IEC 60092-376
Voltage Rating Uo/U: 150/250V
Conductor: Flexible Plain Copper
Version 331: Protective Fire Barrier: Mica glass tape
Insulation: XLPE
Collective Screen: Al/PE tape
Drain Wire: Tinned copper drain wire
Armour: Plain copper wire braid
Sheath: SHF1 compound
Core Identification:
Pair: Black Light Blue
Triple: Black Light Blue Brown
Multi pairs/triples: Progressively numbered
Sheath Colour: Blue Grey
APPLICATION: A flexible, armoured, flame-retardant and halogen-free, collectively screened, instrumentation cable designed for fixed installation, suitable for conditions on vessels of any
size. For use in a wide range of temperatures, saline atmospheres and where UV radiation is present, according to the IEC60092 series.

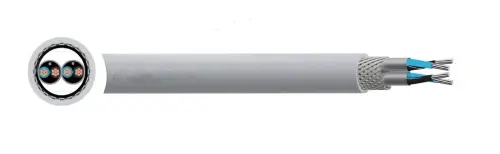

XAI(i) (331) individually screened Instrumentation Cable IEC 60092-376
Voltage Rating Uo/U: 150/250V
Conductor: Flexible Plain Copper
Version 331: Protective Fire Barrier: Mica glass tape
Insulation: XLPE
Individual Screen: Al/PE tape
Drain Wire: Tinned copper drain wire
Armour: Plain copper wire braid
Sheath: SHF1 compound
Core Identification:
Pair: Black Light Blue
Triple: Black Light Blue Brown
Multi pairs/triples: Progressively numbered
Sheath Colour: Blue Grey
APPLICATION: A flexible, armoured, flame-retardant and halogen-free, individually screened, instrumentation cable designed for fixed installation, suitable for conditions on vessels of any
size. For use in a wide range of temperatures, saline atmospheres and where UV radiation is present, according to the IEC60092 series.
| XAI(c) 150/250V Armoured Instrumentation Cable | ||
| NO. OF PAIRS/TRIPLES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL WEIGHT kg/km |
| 1P | 0.75 | 120 |
| 1P | 1.5 | 160 |
| 1T | 0.75 | 130 |
| 1T | 1.5 | 180 |
| 2P | 0.75 | 170 |
| 2P | 1.5 | 220 |
| 2T | 0.75 | 200 |
| 2T | 1.5 | 310 |
| 4P | 0.75 | 230 |
| 4P | 1.5 | 360 |
| 4T | 0.75 | 320 |
| 4T | 1.5 | 460 |
| 7P | 0.75 | 360 |
| 7P | 1.5 | 520 |
| 7T | 0.75 | 480 |
| 7T | 1.5 | 700 |
| 10P | 0.75 | 500 |
| 10P | 1.5 | 720 |
| 10T | 0.75 | 660 |
| 10T | 1.5 | 970 |
| 14P | 0.75 | 630 |
| 14P | 1.5 | 920 |
| 14T | 0.75 | 830 |
| 14T | 1.5 | 1250 |
| 19P | 0.75 | 790 |
| 19P | 1.5 | 1180 |
| 19T | 0.75 | 1060 |
| 19T | 1.5 | 1630 |
| 24P | 0.75 | 960 |
| 24P | 1.5 | 1440 |
| 30P | 0.75 | 1150 |
| 30P | 1.5 | 1850 |
| XAI(i) 150/250V Armoured Instrumentation Cable | ||
| NO. OF PAIRS/TRIPLES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL WEIGHT kg/km |
| 2P | 0.75 | 170 |
| 2P | 1.5 | 230 |
| 2T | 0.75 | 200 |
| 2T | 1.5 | 320 |
| 4P | 0.75 | 280 |
| 4P | 1.5 | 370 |
| 4T | 0.75 | 340 |
| 4T | 1.5 | 480 |
| 7P | 0.75 | 390 |
| 7P | 1.5 | 560 |
| 7T | 0.75 | 500 |
| 7T | 1.5 | 740 |
| 10P | 0.75 | 530 |
| 10P | 1.5 | 750 |
| 10T | 0.75 | 620 |
| 10T | 1.5 | 1010 |
| 14P | 0.75 | 670 |
| 14P | 1.5 | 970 |
| 14T | 0.75 | 690 |
| 14T | 1.5 | 1300 |
| 19P | 0.75 | 850 |
| 19P | 1.5 | 1250 |
| 19T | 0.75 | 1120 |
| 19T | 1.5 | 1710 |
| 24P | 0.75 | 1030 |
| 24P | 1.5 | 1540 |
| 30P | 0.75 | 1240 |
| 30P | 1.5 | 1950 |
