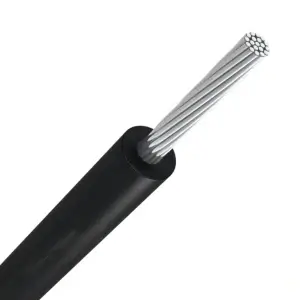

CONSTRUCTION:
Conductor: aluminum alloy, stranded class B.
Insulation: Cross-linked polyethylene (XLPE) insulation, flame retardant (FR), resistant to abrasion, heat and humidity.
Operating Temperature: 90°C
Operating Voltage: 600 V
Applications:
1) General purpose building wire for use primarily in conduit or other recognized raceways as specified in the National Electric Code (NEC)
2) Maximum operating temperature not to exceed 90°C in wet or dry locations
3) 600 V approved for use

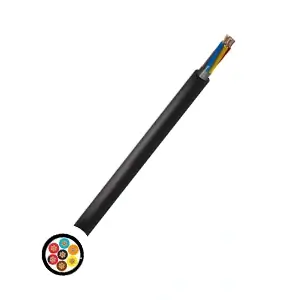

CONSTRUCTION:
Conductor: Bare Annealed Copper
Insulation: XLPE (Cross-Linked Polyethylene) Flame-retardant
Binder Tape
Ripcord: Nylon
Outer Sheath: Special PVC (Polyvinyl Chloride)
Sheath Colour: Black
Operating Temperature: 90°C
Operating Voltage: 600 V
Applications: XHHW-2 cables are designed for the Oil industry and can be installed in Class 1, Division 2 Hazardous locations. They can be installed in trays, wire ways, ducts, conduit and aerially when properly supported by a messenger. They are approved for direct burial, and for wet or dry locations including outdoors in cable trays where a sunlight resistant rating is required.
XHHW-2 Single Conductor Data Sheet
| COND. SIZE (AWG/kcmil) | NO. OF WIRES | NOMINAL CONDUCTOR DIAMETER | NET WEIGHT | ||
| IN | mm | LBS/1000 FT | kg/km | ||
| 6AWG-1000 kcmil CONDUCTORS | |||||
| 6 | 7 | 0.169 | 4.29 | 39 | 58 |
| 4 | 7 | 0.213 | 5.41 | 56 | 83 |
| 2 | 7 | 0.268 | 6.81 | 83 | 124 |
| 1 | 8 | 0.298 | 7.57 | 108 | 161 |
| 1/0 | 10 | 0.337 | 8.56 | 132 | 196 |
| 2/0 | 12 | 0.374 | 9.5 | 162 | 241 |
| 3/0 | 16 | 0.421 | 10.69 | 199 | 296 |
| 4/0 | 19 | 0.47 | 11.94 | 244 | 363 |
| 250 | 23 | 0.514 | 13.06 | 292 | 435 |
| 300 | 22 | 0.566 | 14.38 | 345 | 513 |
| 350 | 26 | 0.607 | 15.42 | 397 | 591 |
| 400 | 37 | 0.659 | 16.74 | 443 | 659 |
| 500 | 37 | 0.736 | 18.69 | 544 | 810 |
| 600 | 61 | 0.813 | 20.65 | 664 | 988 |
| 750 | 61 | 0.908 | 23.06 | 817 | 1216 |
| 1000 | 61 | 1.06 | 26.92 | 1071 | 1594 |
XHHW-2 Multi-core Data Sheet
| NUMBER OF CORES | AWG SIZE | NOMINAL WEIGHT kg/km |
| 2 | 10 | 190 |
| 3 | 10 | 259 |
| 4 | 10 | 332 |
| 5 | 10 | 432 |
| 6 | 10 | 507 |
| 7 | 10 | 568 |
| 8 | 10 | 607 |
| 9 | 10 | 713 |
| 10 | 10 | 752 |
| 11 | 10 | 865 |
| 12 | 10 | 932 |
| 13 | 10 | 997 |
| 14 | 10 | 1064 |
| 15 | 10 | 1131 |
| 20 | 10 | 1463 |
| 25 | 10 | 1799 |
| 30 | 10 | 2124 |
| 35 | 10 | 2447 |
| 40 | 10 | 2770 |
| 45 | 10 | 3098 |
| 50 | 10 | 3417 |
