YMvKas YMz1K YMz1Kas YMz1Krvaslwd YMeKrvaslqwd

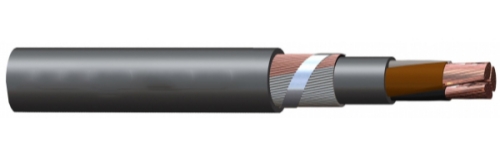

0,6/1 kV VG-YMvKas Dca

Voltage: 0,6/1 kV
Conductor material: Copper
Conductor surface: Bare
Standardization conductor material: IEC 60228
Conductor category: Class 2 = stranded
Material core insulation: Crosslinked polyethylene (XLPE)
Conductor coding in accordance with HD 308 S2: Yes
Armouring: Yes
Material outer sheath: Polyvinyl chloride (PVC)
Colour outer sheath: Grey

0,6/1 kV VO-YMvKas Dca VO-YMvKas mb

Voltage: 0,6/1 kV
Conductor material: Copper
Conductor surface: Bare
Standardization conductor material: IEC 60228
Material core insulation: Crosslinked polyethylene (XLPE)
Armouring/reinforcement: Braiding
Material outer sheath: Polyvinyl chloride (PVC)
UV resistant: Yes
UV protection: NEN EN 50289-4-17A
UV rating: Good / Test duration 3000 <= h < 6000
Max. conductor temperature: 90 °C

0,6/1 kV VG-YMvKas Dca VG-YMvKas mb

Voltage: 0,6/1 kV
Conductor material: Copper
Conductor surface: Bare
Standardization conductor material: IEC 60228
Material core insulation: Crosslinked polyethylene (XLPE)
Armouring: Yes
Material outer sheath: Polyvinyl chloride (PVC)
Colour outer sheath: Grey
UV resistant: Yes
UV protection: NEN EN 50289-4-17A
UV rating: Good / Test duration 3000 <= h < 6000
Max. conductor temperature: 90 °C

0,6/1 kV YMz1K B2ca

Voltage: 0,6/1 kV
Conductor material: Copper
Conductor surface: Bare
Standardization conductor material: IEC 60228
Material core insulation: Crosslinked polyethylene (XLPE)
Material outer sheath: Flame Retardant Halogen Free Polyolefin Compound
UV resistant: Yes
UV protection: NEN EN 50289-4-17A
UV rating: Mediocre / Test duration 2000 <= h < 3000
Max. conductor temperature: 90 °C

0,6/1 kV Z1G-YMz1Kas B2ca/ Z1G-YMz1Kas Cca

Voltage: 0,6/1 kV
Conductor material: Copper
Conductor surface: Bare
Standardization conductor materia: l IEC 60228
Conductor category: Class 2 = stranded
Material core insulation: Crosslinked polyethylene (XLPE)
Conductor coding in accordance with HD 308 S2: Yes
Armouring: Yes
Material outer sheath: Flame Retardant Halogen Free Polyolefin Compound
Colour outer sheath: Grey
Halogen free: IEC 60754-2
UV resistant: Yes
UV protection: NEN EN 50289-4-17A
UV rating: Mediocre / Test duration 2000 <= h < 3000
Max. conductor temperature: 90 °C

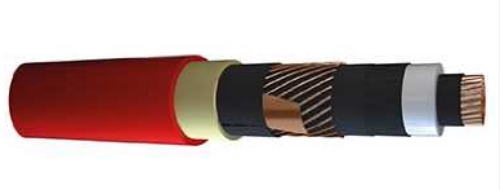

6/10kV, 12/20KV, 18/30 kV YMz1Krvaslwd Bca/ YMz1Krvaslwd Fca/ YMz1Krvaslwd Cca/ YMz1Krvaslwd B2ca

Conductor material: Copper
Shape of conductor: Round
Conductor category: Class 2c = stranded & compacted
Material core insulation: Crosslinked polyethylene (XLPE)
Material outer sheath: LSZH, Flame Retardant Halogen Free Polyolefin Compound
Colour outer sheath: Red
Halogen free :IEC 60754-2
UV protection: NEN EN 50289-4-17A
Max. conductor temperature: 90 °C

6/10kV, 8,7/15 kV, 12/20KV, 18/30 kV YMeKrvaslqwd Fca

Conductor material: Copper
Conductor surface: Bare
Shape of conductor: Round
Conductor category: Class 2c = stranded & compacted
Material core insulation: Crosslinked polyethylene (XLPE)
Material outer sheath: MDPE
Reaction-to-fire according to EN 13501-6: Class Fca
UV protection: NEN EN 50289-4-17A
Max. conductor temperature: 90 °C

The following is part of our parameter list. If you do not find the parameters you want, please send us an email directly: sales@huadongcablegroup.com and our manager will contact you as soon as possible.

0,6/1 kV VG-YMvKas Dca Parameter

Construction	Net	Outer	Conductor	Shape of conductor	Colour	smoke production according to EN 13501-6
	weight	diameter	category		insulated wires
	(kg/m)	approx.
		(mm)
3 x 50 svss + as25 Type 3a Grey	2.106	27	Class 2 = stranded	Sector-shaped	Blue – Brown – Black	s2
3 x 50 svss + as25 Grey	2.106	27	Class 2 = stranded	Sector-shaped	Brown – Black – Grey	s2
4 x 50 svss + as25 Grey	2.684	30.9	Class 2 = stranded	Sector-shaped	Blue – Brown – Black – Grey	s2
5 x 50 rs + as25 Grey	3.98	39.7	Class 2 = stranded	Round	Blue – Brown – Black – Grey – Black	s2
1 x 70 rs + as35 Grey	1.18	20.1	Class 2 = stranded	Round	Black	s2
2 x 70 rs + as35 Grey	2.885	34.2	Class 2 = stranded	Round	Blue – Brown	s2
3 x 70 svss + as35 Grey	2.805	30.1	Class 2 = stranded	Sector-shaped	Brown – Black – Grey	s2
4 x 70 svss + as35 Grey	3.639	35	Class 2 = stranded	Sector-shaped	Blue – Brown – Black – Grey	s2
5 x 70 rs + as35 Grey	5.341	44.9	Class 2 = stranded	Round	Blue – Brown – Black – Grey – Black	s2
1 x 95 rs + as50 Grey	1.551	22.4	Class 2 = stranded	Round	Black	s2
3 x 95 svss + as50 Grey	3.738	35.5	Class 2 = stranded	Sector-shaped	Brown – Black – Grey	s2
4 x 95 svss + as50 Grey	4.688	38.7	Class 2 = stranded	Sector-shaped	Blue – Brown – Black – Grey	s2
5 x 95 rs + as50 Grey	7.358	51.4	Class 2 = stranded	Round	Blue – Brown – Black – Grey – Black	s2
1 x 120 rs + as60	1.962	24.6	Class 2 =	Round	Black	s2

Get a free quote by e-mail: sales@huadongcablegroup.com

18/30 kV YMeKrvaslqwd Fca - 1x Cu Parameter

Part number	Construction	Net weight (kg/m)	Outer diameter approx. (mm)	Conductor category	Shape of conductor
181721	1 x 35 rs + as25 Red	1.998	39.5	Class 2c = stranded & compacted	Round
181722	1 x 50 rs + as25 Red	2.025	39.2	Class 2c = stranded & compacted	Round
181723	1 x 70 rs + as25 Red	2.29	40.8	Class 2c = stranded & compacted	Round
181724	1 x 95 rs + as25 Red	2.622	42.5	Class 2c = stranded & compacted	Round
181725	1 x 120 rs + as25 Red	2.907	44	Class 2c = stranded & compacted	Round
181726	1 x 150 rs + as25 Red	3.221	45.3	Class 2c = stranded & compacted	Round
181727	1 x 185 rs + as25 Red	3.66	47	Class 2c = stranded & compacted	Round
181728	1 x 240 rs + as35 Red	4.431	48.6	Class 2c = stranded & compacted	Round
181729	1 x 300 rs + as35 Red	5.159	52.9	Class 2c = stranded & compacted	Round
181730	1 x 400 rs + as35 Red	6.134	55.9	Class 2c = stranded & compacted	Round
181731	1 x 500 rs + as50 Red	7.689	59.9	Class 2c = stranded & compacted	Round
181732	1 x 630 rs + as50 Red	9.043	64.1	Class 2c = stranded &	Round

Get a free quote by e-mail: sales@huadongcablegroup.com
