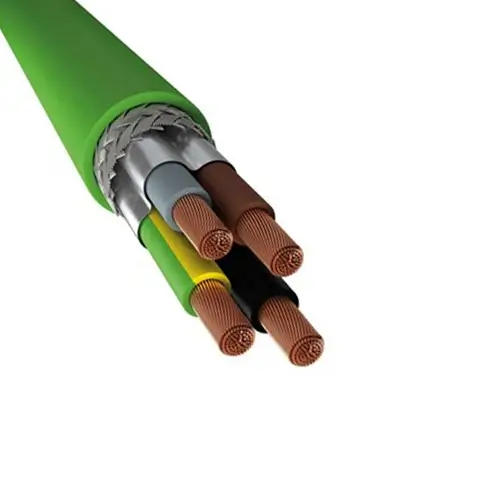

APPLICATIONS of Z1C4Z1-K
Z1C4Z1-K (AS), EMC is suitable for all use where there is a demand for screened cables regarding EMC. For use in industry and building installations, public buildings, power plants or anywhere where there is a demand for 0.6/1 kV screened, halogen free cables. The cable is suited for burial and may be placed outdoors.
Rated voltage: 0.6/1 kV
Conductor: Flexible electrolytic Cu, class 5
Insulation: Special polyolefin
Conductor color: Acc. to HD 308
Filling sheath: Flexible unleaded halogen free material
Screen: 100% covering screen consisting of: aluminum / polyester separator and tinned braided Cu screen
Outer sheath: Extra flexible halogen free compound, green, meter marked
Working temperature: -40º C to +70º C
Bend radius: 5 x cable diameter
CPR classification: Cca-s1a,d1,a1
Approvals:
EN 50575, IEC 60754, IEC 60332-1, IEC 60332-3, IEC 61034, IEC 60228, IEC 60502-1, IEC 60364-5-52, CE, RoHS
| Dimension | Diameter | Weight |
| mm² | mm | kg/km |
| 2×1 | 8,2 | 85 |
| 2×1,5 | 8,6 | 105 |
| 3G1 | 9,0 | 110 |
| 3G1,5 | 9,4 | 130 |
| 3G2,5 | 10,3 | 165 |
| 4G1 | 10,0 | 130 |
| 4G1,5 | 10,2 | 155 |
| 4G2,5 | 11,0 | 200 |
| 4G6 | 13,4 | 350 |
| 5G1,5 | 11,0 | 180 |
| 5G2,5 | 12,0 | 240 |
| 5G4 | 13,7 | 325 |
| 7G1 | 10,9 | 192 |
| 7G1,5 | 11,9 | 230 |
| 7G2,5 | 13,5 | 285 |
| 10G2,5 | 14,5 | 301 |
| 12G1 | 13,2 | 295 |
| 12G1,5 | 14,6 | 350 |
| 12G2,5 | 17,5 | 455 |
| 14G1,5 | 16,4 | 370 |
| 14G2,5 | 18,4 | 510 |
| 19G1,5 | 18,1 | 465 |
| 19G2,5 | 20,6 | 665 |
| 24G1,5 | 19,8 | 575 |
| 24G2,5 | 24,3 | 850 |
