Product Construction
Conductor:
•6 AWG thru 500 kcmil coated annealed copper, bunched wires, rope-lay-stranded per
ASTM B172
Insulation:
•Ethylene Propylene Rubber (EPR) insulation
Insulation Shield:
•A flexible coated copper/textile braid shield is applied over non-conducting overlapped tape
Ground-Check Conductor:
•Annealed copper, rope-lay-stranded per ASTM B172, insulated with high-strength yellow polypropylene
Grounding Conductors:
•Coated copper, rope-lay-stranded per ASTM B172
•Two conductors in contact with the flexible copper braid shield
Jacket:
•Reinforced, two-layer, extra-heavy-duty, lead- cured Chlorinated Polyethylene (CPE)
•6 AWG thru 500 kcmil coated annealed copper, bunched wires, rope-lay-stranded per
ASTM B172
Insulation:
•Ethylene Propylene Rubber (EPR) insulation
Insulation Shield:
•A flexible coated copper/textile braid shield is applied over non-conducting overlapped tape
Ground-Check Conductor:
•Annealed copper, rope-lay-stranded per ASTM B172, insulated with high-strength yellow polypropylene
Grounding Conductors:
•Coated copper, rope-lay-stranded per ASTM B172
•Two conductors in contact with the flexible copper braid shield
Jacket:
•Reinforced, two-layer, extra-heavy-duty, lead- cured Chlorinated Polyethylene (CPE)
Jacket Marking:
•GENERAL CABLE® ANACONDA® BRAND (SIZE) 3/C TYPE SHD-GC 2000 VOLTS P-7K-102-045 MSHA
Options:
•Colored jackets are available
•TPU (Thermoplastic Polyurethane) jacket
•Anamaxx® jacket
Applications:
•Designed for use as trailing cables on AC mining equipment:
-Where a ground-check conductor is required for fail-safe monitoring
-With Bretby-type cable handling devices on longwall shearers
-Where induced voltages in the grounding system will not produce a hazard
-On low- and medium-voltage AC circuits where shielding is desired or required
Features:
•Flexible insulation shield provides shock hazard protection
•Excellent heat, moisture, steam, oil, chemical and radiation resistance
•GENERAL CABLE® ANACONDA® BRAND (SIZE) 3/C TYPE SHD-GC 2000 VOLTS P-7K-102-045 MSHA
Options:
•Colored jackets are available
•TPU (Thermoplastic Polyurethane) jacket
•Anamaxx® jacket
Applications:
•Designed for use as trailing cables on AC mining equipment:
-Where a ground-check conductor is required for fail-safe monitoring
-With Bretby-type cable handling devices on longwall shearers
-Where induced voltages in the grounding system will not produce a hazard
-On low- and medium-voltage AC circuits where shielding is desired or required
Features:
•Flexible insulation shield provides shock hazard protection
•Excellent heat, moisture, steam, oil, chemical and radiation resistance
Features (cont’d):
•Flexible for easy handling
•Resists cutting, impact, abrasion, flame and sunlight
•Excellent thermal stability and physical properties over a broad temperature range
•Two-layer jacket is reinforced to provide maximum protection from mechanical damage— the cause of most portable cable failures
Compliances:
•ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
•Meets flame test requirements and is accepted for listing by MSHA
•Approved by the Pennsylvania Department of Environmental Protection
Packaging:
•Material cut to length and shipped on non- returnable reels
•Flexible for easy handling
•Resists cutting, impact, abrasion, flame and sunlight
•Excellent thermal stability and physical properties over a broad temperature range
•Two-layer jacket is reinforced to provide maximum protection from mechanical damage— the cause of most portable cable failures
Compliances:
•ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
•Meets flame test requirements and is accepted for listing by MSHA
•Approved by the Pennsylvania Department of Environmental Protection
Packaging:
•Material cut to length and shipped on non- returnable reels

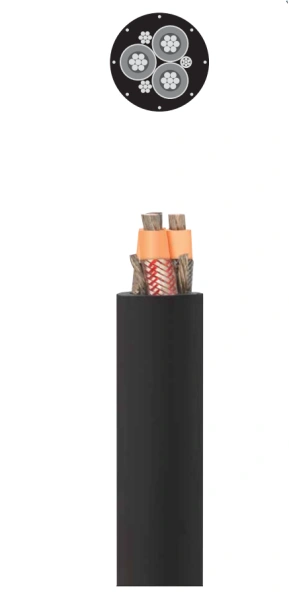

Type SHD-GC Power, Shielded Round Portable w/Ground-Check
CATALOG NUMBER | NO. OF COND. | COND. SIZE (AWG/ kcmil) | COND. STRAND | NOMINAL INSULATION THICKNESS | GRD. COND. SIZE (AWG) | GRD-CHECK COND. SIZE (AWG) | NOMINAL JACKET THICKNESS | NOMINAL CABLE 0.D. | COPPER WEIGHT | NET WEIGHT | AMPACITY | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LBS/ 1000FT | kg/ km | LBS/ 1000FT | kg/ km | |||||||||||||
INCHES | mm | INCHES | mm | INCHES | mm | |||||||||||
13306.2406 | 3 | 6 | 133 | 0.07 | 1.8 | 10 | 10 | 0.155 | 3.9 | 1.29 | 32.8 | 502 | 748 | 1130 | 1682 | 93 |
13306.2404 | 3 | 4 | 259 | 0.07 | 1.8 | 8 | 10 | 0.155 | 3.9 | 1.4 | 35.6 | 678 | 1009 | 1460 | 2173 | 122 |
13349.3403 | 3 | 3 | 259 | 0.07 | 1.8 | 7 | 10 | 0.17 | 4.3 | 1.51 | 38.3 | 831 | 1237 | 1680 | 2500 | 140 |
13302.253396 | 3 | 2 | 259 | 0.07 | 1.8 | 6 | 8 | 0.17 | 4.3 | 1.59 | 40.4 | 1007 | 1499 | 1990 | 2961 | 159 |
13301.814577 | 3 | 1 | 259 | 0.08 | 2 | 5 | 8 | 0.19 | 4.8 | 1.76 | 44.7 | 1228 | 1828 | 2385 | 3549 | 184 |
13351.179353 | 3 | 1/0 | 259 | 0.08 | 2 | 4 | 8 | 0.19 | 4.8 | 1.86 | 47.2 | 1485 | 2210 | 2765 | 4115 | 211 |
13352.658076 | 3 | 2/0 | 329 | 0.08 | 2 | 3 | 8 | 0.205 | 5.2 | 2 | 50.8 | 1832 | 2726 | 3255 | 4844 | 243 |
13349.6453 | 3 | 3/0 | 413 | 0.08 | 2 | 2 | 8 | 0.205 | 5.2 | 2.13 | 54.1 | 2249 | 3347 | 3890 | 5789 | 279 |
13354.490389 | 3 | 4/0 | 532 | 0.08 | 2 | 1 | 8 | 0.22 | 5.6 | 2.31 | 58.7 | 2854 | 4248 | 4720 | 7024 | 321 |
13349.646 | 3 | 250 | 608 | 0.095 | 2.4 | 1/0 | 6 | 0.22 | 5.6 | 2.51 | 63.8 | 3325 | 4949 | 5460 | 8125 | 355 |
13349.6461 | 3 | 300 | 741 | 0.095 | 2.4 | 1/0 | 6 | 0.235 | 6 | 2.68 | 68.1 | 3946 | 5873 | 6395 | 9517 | 398 |
13362.315522 | 3 | 350 | 851 | 0.095 | 2.4 | 2/0 | 6 | 0.235 | 6.4 | 2.81 | 71.4 | 4493 | 6686 | 7280 | 10834 | 435 |
13349.6465 | 3 | 500 | 1221 | 0.095 | 2.4 | 4/0 | 6 | 0.265 | 6.7 | 3.19 | 81 | 6641 | 9883 | 9820 | 14614 | 536 |
