Description:
Color: Black.
Applicable: Underground Secondary Distribution URD Wire are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. THey are used in various underground applications in secondary distribution circuits.
Conductor: Compressed Class B compressed stranded, 1350 series aluminum alloy.
Insulation: Black cross-linked polyethylene (XLPE)
Assembly: Phase conductors and neutral conductors are cabled together to form a twisted assembly.
Standards:
– UL 854: Service ENtrance Cables
– ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables

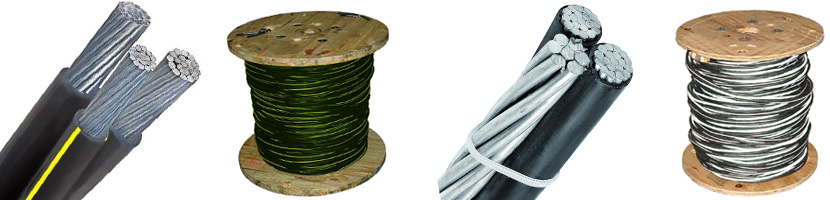

1/0,1/0 & 1/0 Bergen Triplex Underground Distribution Cable
Specifications
Phase Conductor-Size: 1/0 AWG
Conductor Strand: 19
Neutral Conductor-Size: 1/0
Conductor Strand: 19
Insulation Thickness: 0.080 inches
Outside Diameter: 1.133 inches
Allowable Ampacity-Direct Burial: 215 Amps
Allowable Ampacity-In Duct: 180 Amps
Weight: 0.465 lbs per ft
Starting custom your ideal size, the factory price will send you in 12 hours.
E-mail: sales@www.huadongcablegroup.com
1/0,1/0 & #2 Brenau Triplex Underground Distribution Cable
Specifications
Phase Conductor-Size: 1/0 AWG
Conductor Strand: 19
Neutral Conductor-Size: 2 AWG
Conductor Strand: 7
Insulation Thickness: 0.060 inches
Outside Diameter: 1.064 inches
Allowable Ampacity-Direct Burial: 215 Amps
Allowable Ampacity-In Duct: 160 Amps
Weight: 0.387 lbs per ft
Starting custom your ideal size, the factory price will send you in 12 hours.
E-mail: sales@www.huadongcablegroup.com
Triplex wire 1/0 Awg Neutral Messenger with AAC/AAC/ACSR
Specifications
Phase Conductor-Size: 1/0 AWG
Phase Conductor Strand: 7, 9
Neutral Conductor-Size:1/0, 2 AWG
Neutral Strand: 7
AAC Code name: Murex,Purpura
Alloy Code name: Gammarus,Leda,Sandcrab,Echinus
ACSR Code name: Janthina,Ranella,Cenia,Neritina
Insul. Thick. (mils): 60
Weight: 0.387 lbs per ft
Starting custom your ideal size, the factory price will send you in 12 hours.
E-mail: sales@www.huadongcablegroup.com
Paramter-Triplex wire 1/0 Awg Neutral Messenger with AAC/AAC/ACSR
| Triplex aluminum Wire | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code* Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000 | Allowable Ampacities+ | |||||||
| Size (AWG | Strand- ing | Insul. Thick. (mils) | Equiv. Dia. (AWG)++ | Size（ AWG kcmil) | Strand- ing | Rated Strength (lbs). | XLP | POLY | XLP | POLY | |
| 6201 Alloy Neutal-Messenger | |||||||||||
| Gammarus | 1/0 | 7 | 60 | 1/0 | 123.3 | 7 | 4460 | 390 | 390 | 205 | 160 |
| Leda | 1/0 | 9 | 60 | 1/0 | 123.3 | 7 | 4460 | 384 | 384 | 205 | 160 |
| 6201 Alloy Reduced Neutral-Messenger | |||||||||||
| Sandcrab | 1/0 | 7 | 60 | 2 | 77.47 | 7 | 2800 | 347 | 347 | 205 | 160 |
| Echinus | 1/0 | 9 | 60 | 2 | 77.47 | 7 | 2800 | 341 | 341 | 205 | 160 |
Starting custom your ideal size, the factory price will send you in 12 hours.
E-mail: sales@www.huadongcablegroup.com
| Triplex Service drop Cable-Neutral Messenger with AAC/ACSR | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Code* Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000 | Allowable Ampacities+ | ||||||
| Size (awg/kcmil） | Strand- ing | Insul. Thick. (mils) | Size (AWG/kcmil) | Strand- ing | Rated Strength (lbs). | XLP | POLY | XLP | POLY | |
| AAC Neutral-Messenger | ||||||||||
| Murex | 1/0 | 7 | 60 | 1/0 | 7 | 1990 | 374 | 374 | 205 | 160 |
| Purpura | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 368 | 368 | 205 | 160 |
| 6201 Alloy Neutal-Messenger | ||||||||||
| Gammarus | 1/0 | 7 | 60 | 1/0 | 123.3 | 7 | 4460 | 390 | 390 | 205 |
| Leda | 1/0 | 9 | 60 | 1/0 | 123.3 | 7 | 4460 | 384 | 384 | 205 |
| ACSR Neutral-Message | ||||||||||
| Neritina | 1/0 | 7 | 60 | 1/0 | 6/1 | 4380 | 420 | 420 | 205 | 160 |
| Cenia | 1/0 | 9 | 60 | 1/0 | 6/1 | 4380 | 414 | 414 | 205 | 160 |
| ACSR Reduced Neutral-Message | ||||||||||
| Janthina | 1/0 | 7 | 60 | 2 | 6/1 | 2853 | 366 | 366 | 205 | 160 |
| Ranella | 1/0 | 9 | 60 | 2 | 6/1 | 2853 | 360 | 360 | 205 | 160 |
Starting custom your ideal size, the factory price will send you in 12 hours.
E-mail: sales@www.huadongcablegroup.com
Why Choose Us?
Product Process: We produce the service drop abc cable use the high quality aluminum material,Every production process has been strictly checked by our professional technical engineers.
Packaging&Delivery: Before shipment every types of cables have been rigorously tested.
Starting custom your ideal size, the factory price will send you in 12 hours.
E-mail: sales@www.huadongcablegroup.com
Customer Case: We have exported wires and cables to more than 30 countries,such as: Russian, America, Yemen, South America, North America, Middle East, Africa, Asia,Oceania countries and etc.
Our advantage: Huadong cable group is a one of professional cable & wire factory in China,mainly production and sales cable, it located in the industrial zone in Zhengzhou, it has rich aluminum resources in the word, high quality and competitive price.
Starting custom your ideal size, the factory price will send you in 12 hours.
E-mail: sales@www.huadongcablegroup.com
FAQ
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 – 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
