11kv mv abc cable

11kv overhead Aerial Bunched (ABC) Cable

Professional cable & wire manufacturer from China, Meet your kinds of requirement abc cables, With over 30 years production experience and 15 years export experience, factory price without any third party.
The power cable size can be customized according to your requirement,on-time delivery.

11kv abc aerial bunched cable

Starting custom your ideal  cable size by E-mail: sales@huadongcablegroup.com

Application

Three XLPE insulated cores are bundled around the AAAC/1120 support conductor in a right hand lay.

Standard

AS/NZS 3599.1

Construction

Phase Conductor Circular compacted stranded H68 aluminium to BS2627.
Conductor Screen Extruded semi-conductive layer.
Insulation XLPE.
Insulation Screen Extruded semi-conductive layer.
Outer Sheath HDPE.
Support Conductor Aluminium alloy conductor (AAAC/1120).
Assembly Three XLPE insulated cores are bundled around the AAAC/1120 support conductor in a right hand lay.

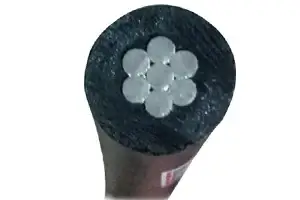

Single core 11 kv  aerial bunched cable

E-mail: sales@huadongcablegroup.com

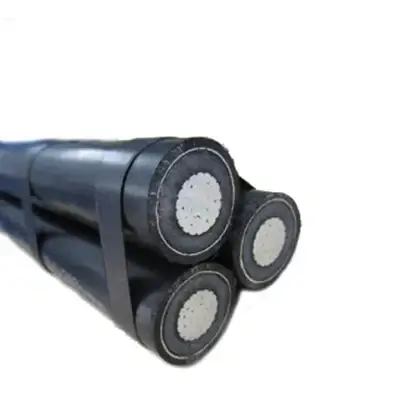

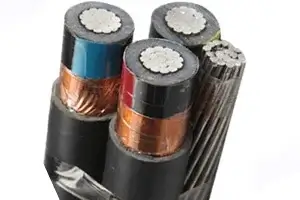

3+1 core 11kv aerial bunched cable

3+1 core 11 kv abc cable E-mail: sales@huadongcablegroup.com

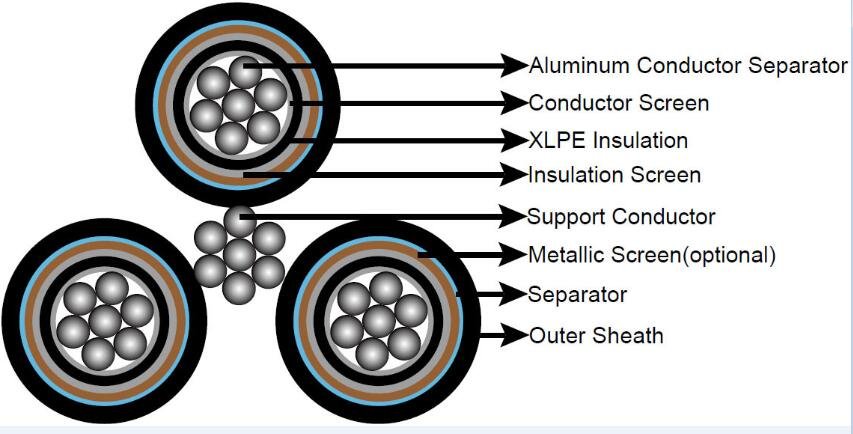

Product Drawing

11kv aerial bundled cable

6.35/11kV & 12.7/22kV ABC Cable-AS/NZS 3599.1 Standard
number of cores x nominal cross sectionNominal conductor diameterNominal insulation thicknessNominal insulation screen thicknessNominal sheath thicknessAAAC/1120 support conductor sizeNominal overall diameterWeightContinuous current rating, A
Still air1m/s wind2m/s wind
mm^2mmmmmmmmNo/mmmmkg/kmAAA
6.35/11kV
3x356.93.40.81.27/4.7552.41370110155185
3x508.13.40.81.27/4.7554.61530130185225
3x709.73.40.81.27/4.7557.81790160235280
3x9511.43.40.81.27/4.7561.32100195285345
3x12012.83.40.81.219/3.5067.32540230335405
3x15014.23.40.81.219/3.5070.12840255380460
3x18515.73.40.81.219/3.5073.13190295440530
12.7/22kV
3x356.95.50.81.27/4.75611780110155180
3x508.15.50.81.27/4.7563.31970130185220
3x709.75.50.81.27/4.7566.52260160230275
3x9511.45.50.81.27/4.7569.92600195285335
3x12012.85.50.81.219/3.5075.93070225330395
3x15014.25.50.81.219/3.5078.73390255375450
3x18515.75.50.81.219/3.5081.73760290435520
Please check the specification, our competitive price will send you in 12 hours.
