Application
These cables are used for the interconnection of Airfield Lighting systems. Suitable for installation in conduit, duct, aerial and direct burial.
2kV 6mm2 XLPE BT HDPE Airfield Cable
Voltage Rating: 2kV
Temperature Rating: -25°C to +90°C
Conductor: Class 2 stranded copper conductor
Insulation: XLPE
Screen: Brass tape
Sheath: HDPE (High-Density Polyethylene)
Sheath Colour: Black
STANDARDS:
FAA L-824C, IEC/EN 60228
2kV 6mm2 XLPE BT PVC Airfield Cable
Voltage Rating: 2kV
Temperature Rating: -25°C to +90°C
Conductor: Class 2 stranded copper conductor
Insulation: XLPE
Screen: Brass tape
Sheath: PVC
Sheath Colour: Black
STANDARDS:
FAA L-824C, IEC/EN 60228

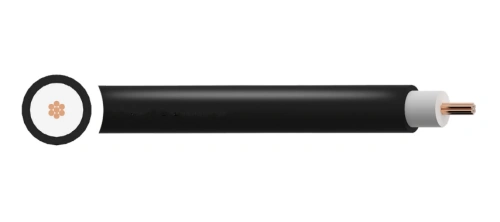

2kV 6mm2 XLPE HDPE Cable
Voltage Rating: 2kV
Temperature Rating: -25°C to +90°C
Conductor: Class 2 stranded copper conductor
Insulation: XLPE
Sheath: HDPE
Sheath Colour: Black
STANDARDS:
FAA L-824C, IEC/EN 60228
2kV 6mm2 XLPE PCWB HDPE Airfield Cable
Voltage Rating: 2kV
Temperature Rating: -25°C to +90°C
Conductor: Class 2 stranded copper conductor
Insulation: XLPE
Screen: PCWB (Plain Copper Wire Braid)
Sheath: HDPE (High-Density Polyethylene)
Sheath Colour: Black
STANDARDS:
FAA L-824C, IEC/EN 60228
2kV 6mm2 XLPE CTS PVC Airfield Cable
Voltage Rating: 2kV
Temperature Rating: -25°C to +90°C
Conductor: Class 2 stranded copper conductor
Insulation: XLPE
Screen: Copper tape
Sheath: PVC
Sheath Colour: Black
STANDARDS:
FAA L-824C, IEC/EN 60228
2kV 6mm2 XLPE PCWB PVC Airfield Cable
Voltage Rating: 2kV
Temperature Rating: -25°C to +90°C
Conductor: Class 2 stranded copper conductor
Insulation: XLPE
Screen: PCWB (Plain Copper Wire Braid)
Sheath: PVC
Sheath Colour: Black
STANDARDS:
FAA L-824C, IEC/EN 60228
2kV 6mm2 XLPE PVC Airfield Cable
Voltage Rating: 2kV
Temperature Rating: -25°C to +90°C
Conductor: Class 2 stranded copper conductor
Insulation: XLPE
Sheath: PVC
Sheath Colour: Black
STANDARDS:
FAA L-824C, IEC/EN 60228
5kV 6mm2 XLPE BT HDPE Airfield Cable
Voltage Rating: 5kV
Temperature Rating: -25°C to +90°C
Conductor: Class 2 stranded copper conductor
Insulation: XLPE
Screen: Brass tape
Sheath: HDPE (High-Density Polyethylene)
Sheath Colour: Black
STANDARDS:
FAA L-824C, IEC/EN 60228

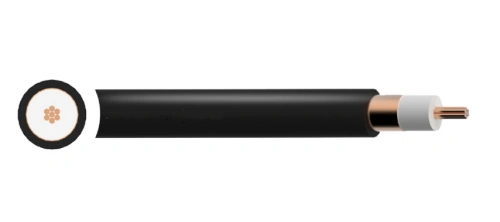

5kV 6mm2 XLPE BT PVC Airfield Cable
Voltage Rating: 5kV
Temperature Rating: -25°C to +90°C
Conductor: Class 2 stranded copper conductor
Insulation: XLPE
Screen: Brass tape
Sheath: PVC
Sheath Colour: Black
STANDARDS:
FAA L-824C, IEC/EN 60228

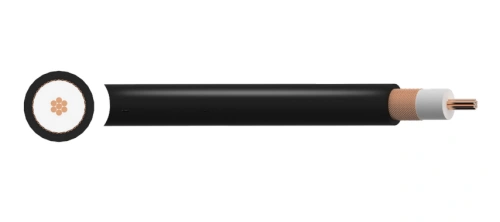

5kV 6mm2 XLPE PCWB HDPE Airfield Cable
Voltage Rating: 5kV
Temperature Rating: -25°C to +90°C
Conductor: Class 2 stranded copper conductor
Insulation: XLPE
Screen: PCWB (Plain Copper Wire Braid)
Sheath: HDPE (High-Density Polyethylene)
Sheath Colour: Black
STANDARDS:
FAA L-824C, IEC/EN 60228
5kV 6mm2 XLPE PCWB PVC Airfield Cable
Voltage Rating: 5kV
Temperature Rating: -25°C to +90°C
Conductor: Class 2 stranded copper conductor
Insulation: XLPE
Screen: PCWB (Plain Copper Wire Braid)
Sheath: PVC (Polyvinyl Chloride)
Sheath Colour: Black
STANDARDS:
FAA L-824C, IEC/EN 60228
5kV 6mm2 XLPE PVC Airfield Cable
Voltage Rating: 5kV
Temperature Rating: -25°C to +90°C
Conductor: Class 2 stranded copper conductor
Insulation: XLPE
Sheath: PVC
Sheath Colour: Black
STANDARDS:
FAA L-824C, IEC/EN 60228
5kV 6mm2 XLPE CTS PVC Airfield Cable
Voltage Rating: 5kV
Temperature Rating: -25°C to +90°C
Conductor: Class 2 stranded copper conductor
Insulation: XLPE
Screen: Copper tape
Sheath: PVC
Sheath Colour: Black
STANDARDS:
FAA L-824C, IEC/EN 60228

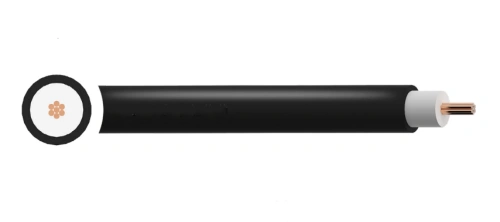

5kV 6mm2 XLPE HDPE Airfield Cable
Voltage Rating: 5kV
Temperature Rating: -25°C to +90°C
Conductor: Class 2 stranded copper conductor
Insulation: XLPE
Sheath: HDPE
Sheath Colour: Black
STANDARDS:
FAA L-824C, IEC/EN 60228
| 2kV 6mm2 XLPE BT HDPE Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 1 | 6 | 3.08 |
| 2kV 6mm2 XLPE BT PVC Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 1 | 6 | 7.3 |
| 2kV 6mm2 XLPE HDPE Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 1 | 6 | 7.05 |
| 2kV 6mm2 XLPE PCWB HDPE Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 1 | 6 | 8.05 |
| 2kV 6mm2 XLPE CTS PVC Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 1 | 6 | 7.3 |
| 2kV 6mm2 XLPE PCWB PVC Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 1 | 6 | 8.05 |
| 2kV 6mm2 XLPE PVC Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 1 | 6 | 8.05 |
| 5kV 6mm2 XLPE BT HDPE Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 1 | 6 | 12.1 |
| 5kV 6mm2 XLPE BT PVC Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 1 | 6 | 12.1 |
| 5kV 6mm2 XLPE CTS PVC Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 1 | 6 | 12.1 |
| 5kV 6mm2 XLPE HDPE Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 1 | 6 | 11.9 |
| 5kV 6mm2 XLPE PCWB HDPE Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 1 | 6 | 12.9 |
| 5kV 6mm2 XLPE PCWB PVC Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 1 | 6 | 12.9 |
| 5kV 6mm2 XLPE PVC Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 1 | 6 | 11.9 |
