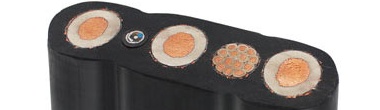

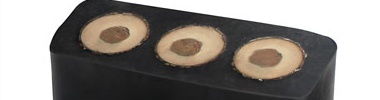

H-3PNCT 3,3KV and 6,6KV for Reel system (Traveling)
Voltage: AC 3300V, AC 6600VConductor: Class 5 flexible tinned copper wiresScreen : Semi-conductive screenInsulation: EPR compoundShield braid: Tinned copper braiding screen with aramid fiber reinforcementOuter sheath: Chloroprene rubberTemperature Rating : -20°C to +90°CFeature: High resistance to lateral pressure and bendingApplication: Reel system (Traveling)

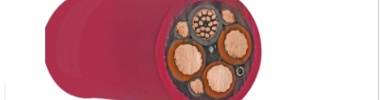

FG-RE-3PNCT 6,6KV for Reel system (Traveling)
Voltage: AC 6600VTest Voltage: 17000V / 10 minutesConductor: Copper /Tinned annealed copperInsulation: EPR compoundOuter sheath: Chloroprene rubberRated Temperature: 80 degrees CFeature: High resistance to lateral pressure and bendingApplication: Reel system (Traveling)
FG-H-3PNCT 3,3KV and 6,6KV for Reel system (Traveling)
Voltage: AC 3300V, AC 6600VConductor: Copper /Tinned annealed copperInner Screen : Semi-conductive screenInsulation: EPR compoundOuter Screen : Semi-conductive screenShield braid: Tinned copper braiding screen with aramid fiber reinforcementOptical fiber cord Outer sheath: Sheath PCP (Polychloroprene) Type EM2Rated Temperature: 80 degrees CFeature: High resistance to lateral pressure and bendingApplication: Reel system (Traveling)
No. of Cores
Conductor
Insulation Thickness(mm)
Approx. Mass(kg/km)
Size(mm2)
Construction(No./mm)
Outer Diameter (mm)
3
22
7/20/0.45
7.0
3.0
2,340
38
7/34/0.45
9.1
3.0
3,190
60
19/20/0.45
11.6
3.5
4,500
100
19/34/0.45
15.2
3.5
6,320
4
22
7/20/0.45
7.0
3.0
3,150
38
7/34/0.45
9.1
3.0
4,300
60
19/20/0.45
11.6
3.5
6,080
100
19/34/0.45
15.2
3.5
8,600
No. of Cores
Conductor
Insulation Thickness(mm)
Approx. Mass(kg/km)
Size(mm2)
Construction(No./mm)
Outer Diameter (mm)
3×38 + 1×22 + 6 optical fiber cores
38
7/34/0.45
9.1
3.0
4,530
22
7/20/0.45
7.0
1.6
3×50 + 1×30 + 6 optical fiber cores
50
19/16/0.45
10.4
3.5
5,510
30
7/27/0.45
8.1
1.6
3×60 + 1×30 + 6 optical fiber cores
60
19/20/0.45
11.6
3.5
6,140
No. of Cores
Conductor
Insulation Thickness(mm)
Approx. Mass(kg/km)
Size(mm2)
Construction(No./mm)
Outer Diameter (mm)
3×38 + 1×22 + 6 optical fiber cores
38
7/34/0.45
9.1
3.0
4,390
22
7/20/0.45
7.0
1.6
3×50 + 1×30 + 6 optical fiber cores
50
19/16/0.45
10.4
3.5
5,070
30
7/27/0.45
8.1
1.6
3×60 + 1×30 + 6 optical fiber cores
60
19/20/0.45
11.6
3.5
5,640
30
7/27/0.45
8.1
1.6

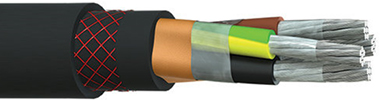

CUR-2PNCT/CUR-2PNCT-SB (Festoon)
Voltage: 600VTest Voltage: 3000V /1 minuteConductor: Copper /Tinned annealed copperInsulation: EPR compoundShield braid: Copper wire/Tinned Copper wireOuter sheath: Chloroprene rubberRated Temperature: 80 degrees CFeature: High flexibilityApplication: Festoon System and Lift System

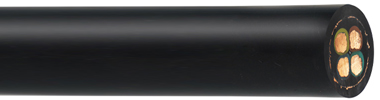

CUR-3PNCT/CUR-3PNCT-SB (Festoon)
Voltage: 600VTest Voltage: 3000V /1 minuteConductor: Copper /Tinned annealed copperInsulation: EPR compoundShield braid: Copper wire/Tinned Copper wireOuter sheath: Chloroprene rubberReinforcement: Embedded yarn braidRated Temperature: 80 degrees CFeature: High flexibility and impact resistanceApplication: Festoon System and Lift System

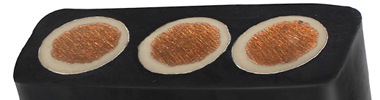

Flat Type SK-2PNCT for Festoon System
Voltage: 600VTest Voltage: 3000V /1 minuteConductor: Copper /Tinned annealed copperInsulation: EPR compoundShield braid: Copper wire/Tinned Copper wireOuter sheath: Chloroprene rubberReinforcement: Embedded yarn braidRated Temperature: 80 degrees CFeature: High flexibilityApplication: Festoon System and Lift System
No. of Cores Conductor Insulation Thickness (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km)
Size (mm2) Construction (No./mm) Outer Diameter (mm)
12
0.75
30/0.18
1.1
0.8
2.1
17
335
1.25
50/0.18
1.5
0.8
2.2
18.5
440
2
37/0.26
1.8
0.8
2.3
20
560
3.5
45/0.32
2.5
0.8
2.5
24
845
16
0.75
30/0.18
1.1
0.8
2.2
18.5
415
1.25
50/0.18
1.5
0.8
2.3
21
550
2
37/0.26
1.8
0.8
2.4
22
705
3.5
45/0.32
2.5
0.8
2.7
26
1080
20
1.25
50/0.18
1.5
0.8
2.5
23
680
2
37/0.26
1.8
0.8
2.6
25
870
24
1.25
50/0.18
1.5
0.8
2.6
25
810
2
37/0.26
1.8
0.8
2.7
27
1050
3.5
45/0.32
2.5
0.8
3
32
1610
No. of Cores Conductor Insulation Thickness (mm) Thickness of Reinforcement (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km)
Size (mm2) Construction (No./mm) Outer Diameter (mm)
5
2
37/0.26
1.8
1.2
0.5
3
18.5
420
3.5
45/0.32
2.5
1.2
0.5
3.1
21
565
5.5
70/0.32
3.1
1.2
0.5
3.2
23
720
10
2
37/0.26
1.8
1.2
1
3.4
27
790
3.5
45/0.32
2.5
1.2
1
3.6
30
1080
12
2
37/0.26
1.8
1.2
1
3.4
28
870
3.5
45/0.32
2.5
1.2
1
3.7
32
1230
16
2
37/0.26
1.8
1.2
1
3.6
30
1080
3.5
45/0.32
2.5
1.2
1
3.8
34
1520
20
2
37/0.26
1.8
1.2
1
3.8
34
1330
3.5
45/0.32
2.5
1.2
1
4
38
1850
24
2
37/0.26
1.8
1.2
1
3.9
36
1560
3.5
45/0.32
2.5
1.2
1
4.2
41
2200
30
2
37/0.26
1.8
1.2
1
4.1
39
1850
3.5
45/0.32
2.5
1.2
1
4.4
44
2620
No. of Cores Conductor Insulation Thickness (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km)
Size (mm2) Construction (No./mm) Outer Diameter (mm)
3
22
7/20/0.45
7
1.2
2.6
15.5X35
1160
38
7/34/0.45
9.1
1.2
2.9
18.0X42
1750
60
19/20/0.45
11.6
1.5
3.3
22X52
2700
100
19/34/0.45
15.2
2
3.9
28X66
4460
24
1.25
50/0.18
1.5
0.8
2.9
18.0X42
1230
32
1.25
50/0.18
1.5
0.8
3.3
19.0X55
1540
40
1.25
50/0.18
1.5
0.8
3.7
19.5X68
1980
48
1.25
50/0.18
1.5
0.8
2.9
18.0X84
2260
56
1.25
50/0.18
1.5
0.8
2.9
18.0X102
2730
64
1.25
50/0.18
1.5
0.8
3.3
19.0X109
3080
72
1.25
50/0.18
1.5
0.8
2.9
18.0X126
3390
80
1.25
50/0.18
1.5
0.8
3.7
19.5X135
3950

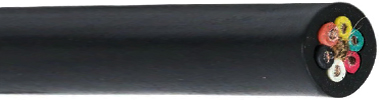

RE-2PNCT/RE-3PNCT for Reeling System
Voltage: 600VTest Voltage: 3000V / 1 minuteConductor: Copper / Tinned annealed copperInsulation: EPR compoundShield braid: Copper wire/Tinned Copper wireReinforcement: Embedded yarn braidOuter sheath: Chloroprene rubberCore identification: Color coding / tracer methodFeature: High resistance to lateral pressure and bendingApplication: Suitable for the reel systems (manually wound) for crane travel

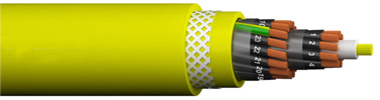

RE(V)-2PNCT-FR for Vertical Reeling
Voltage: 600VTest Voltage: 3000V /1 minuteConductor: Copper /Tinned annealed copperInsulation: EPR compoundShield braid: Copper wire/Tinned Copper wireReinforcement: Embedded yarn braidOuter sheath: Chloroprene rubberCore identification: Color coding/tracer methodFeature: High resistance to lateral pressure and bendingApplication: Vertical reel system used in landfills, etc.

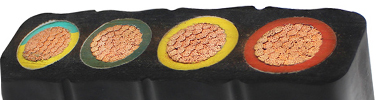

Flat 2PNCT/3PNCT (Reeling System)
Voltage: 600VConductor: Copper /Tinned annealed copperInsulation: EPR compoundShield braid: Copper wire/Tinned Copper wireOuter sheath: Chloroprene rubberCore identification: For power or control core unit3-core (black, white, and red)
4-core (black, white, red, and green)
Control cores
Feature: High resistance to lateral pressure and bendingApplication: Reel system (Traveling).
No. of Cores Conductor Insulation Thickness (mm) Thickness of Reinforcement (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km)
Size (mm2) Construction (No./mm) Outer Diameter (mm)
3
14
88/0.45TA
4.9
1.2
1
3.3
26
940
22
7/20/0.45TA
7
1.6
1
3.7
32
1490
30
7/27/0.45TA
8.1
1.6
1
3.9
35
1830
4
38
7/34/0.45TA
9.1
1.6
1
4.2
40
2720
6
3.5
3/0.32TST+45/0.32TA
2.6
1.2
0.5
3.2
24
730
8
3/0.32TST+50/0.45TA
3.8
1.2
0.5
3.5
28
1180
10
3.5
3/0.32TST+45/0.32TA
2.6
1.2
1
3.7
32
1190
12
3.5
3/0.32TST+45/0.32TA
2.6
1.2
1
3.7
33
1320
16
3.5
3/0.32TST+45/0.32TA
2.6
1.2
1
3.9
36
1650
20
3.5
3/0.32TST+45/0.32TA
2.6
1.2
1
4.1
40
2000
24
3.5
3/0.32TST+45/0.32TA
2.6
1.2
1
4.4
44
2400
30
3.5
3/0.32TST+45/0.32TA
2.6
1.2
1
4.5
46
2830
No. of Cores Conductor Insulation Thickness (mm) Thickness of Reinforcement (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km )
Size (mm2) Construction (No./mm) Outer Diameter (mm)
7
3.5
3/0.32TST+45/0.32TA
2.6
0.8
0.5
3.1
22
670
5.5
3/0.32TST+70/0.32TA
3.2
1
0.5
3.4
26
990
10
3.5
3/0.32TST+45/0.32TA
2.6
0.8
1
3.4
27
1010
5.5
3/0.32TST+70/0.32TA
3.2
1
1
3.7
32
1480
13
3.5
3/0.32TST+45/0.32TA
2.6
0.8
1
3.7
32
1370
5.5
3/0.32TST+70/0.32TA
3.2
1
1
4
38
2020
No. of Cores Conductor Insulation Thickness (mm) Thickness of Reinforecement (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km) Max. Conductor Resistance
Size (mm2) Construction (No./mm) Outer Diameter (mm)
3
22
7/20/0.45
7
1.6
1
3.6
20X49
1640
0.892
30
7/27/0.45
8.1
1.6
1
3.7
21X52
1960
0.661
38
7/34/0.45
9.1
1.6
1
3.8
22X55
2290
0.525
50
19/16/0.45
10.4
2.1
1
4.2
26X63
2970
0.411
60
19/20/0.45
11.6
2.1
1
4.3
27X66
3440
0.329
80
19/27/0.45
13.5
2.1
1
4.5
29X72
4290
0.243
100
19/34/0.45
15.2
2.1
1
4.7
31X77
5100
0.193
125
19/42/0.45
16.9
2.7
1
5.1
35X86
6360
0.156
150
27/34/0.45
18.7
2.7
1
5.3
36X90
7110
0.136
200
37/34/0.45
21.2
3.3
1
5.8
41X104
9590
0.0993
250
37/42/0.45
23.6
3.3
1
6.2
45X113
11500
0.0803

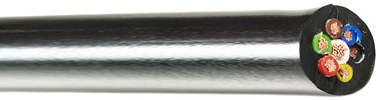

CAR-2PNCT/CAR-3PNCT (Carrier Drum)
Voltage: 600VTest Voltage: 3000V /1 minuteConductor: Copper /Tinned annealed copperInsulation: EPR compoundShield braid: Copper wire/Tinned Copper wireReinforcement: Embedded yarn braidOuter sheath: Chloroprene rubberCore identification: Color coding/tracer methodFeature: Lateral pressure resistanceApplication: Traversing carrier roller system of overhead cranes and cable chain system.

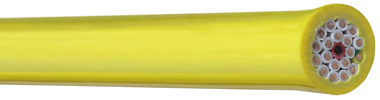

TOR-2PNCT Cable (Torsion System)
Voltage: 600VTest Voltage: 3000V /1 minuteConductor: Copper /Tinned annealed copperInsulation: EPR compoundShield braid: Copper wire/Tinned Copper wireOuter sheath: Chloroprene rubberCore identification: Color coding/tracer methodFeature: High torsion resistanceApplication: Suitable to the revolving parts of rotary cranes.Standards: JIS C 3327 or other international standards

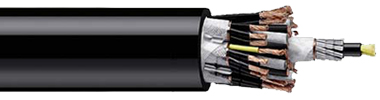

SPD-FHNCT for Spreader Basket
Voltage: 600VTest Voltage: 3000V /1 minuteConductor: Copper /Tinned annealed copperInsulation: ETFE insulationOuter sheath: Chloroprene rubberCore identification: Color coding/tracer methodFeature: Stable collecting performance into the basket, and high lateral pressure resistanceApplication: Suitable for gravity collector basket system of the container crane at harbors (for Quayside cranes).Standards: JIS or other international standards
No. of Cores Conductor Insulation Thickness (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km)
Size (mm2) Construction (No./mm) Outer Diameter (mm)
3
8
50/0.45
3.7
1
2.1
17
475
14
88/0.45
4.9
1
2.3
20
730
22
7/20/0.45
7
1.2
2.7
26
1180
4
38
7/34/0.45
9.1
1.2
3.2
34
2280
6
3.5
45/0.32
2.5
0.8
2.1
17
465
8
50/0.45
3.7
1
2.4
22
890
10
3.5
45/0.32
2.5
0.8
2.5
23
790
12
3.5
45/0.32
2.5
0.8
2.5
24
815
16
3.5
45/0.32
2.5
0.8
2.7
26
1080
20
3.5
45/0.32
2.5
0.8
2.8
29
1330
24
3.5
45/0.32
2.5
0.8
3
32
1630
30
3.5
45/0.32
2.5
0.8
3.2
36
2080
No. of Cores Conductor Insulation Thickness (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km)
Size (mm2) Construction (No./mm) Outer Diameter (mm)
14
88/0.45
4.9
1
2.3
20
725
22
7/20/0.45
7
1.2
2.7
26
1170
30
7/27/0.45
8.1
1.2
2.8
28
1460
4
38
7/34/0.45
9.1
1.2
3.2
34
2280
6
3.5
45/0.32
2.5
0.8
2.1
17
460
8
50/0.45
3.7
1
2.4
22
875
10
3.5
45/0.32
2.5
0.8
2.5
24
770
12
3.5
45/0.32
2.5
0.8
2.6
24
875
16
3.5
45/0.32
2.5
0.8
2.7
27
1110
20
3.5
45/0.32
2.5
0.8
2.9
30
1380
24
3.5
45/0.32
2.5
0.8
3.1
33
1660
30
3.5
45/0.32
2.5
0.8
3.2
35
1990
600V SPD-FHNCT
No. of Cores Conductor Insulation Thickness (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km) Max. Conductor Resistance (20 degrees C) (Ω/km)
30
3.5
45/0.32
2.5
0.4
6
42
2710
5.54
36
3.5
45/0.32
2.5
0.4
7
46
3090
5.54
42
3.5
45/0.32
2.5
0.4
7
50
3820
5.54
600V SPD (Y)-2PNCT
No. of Cores Conductor Insulation Thickness (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km) Max. Conductor Resistance (20 degrees C) (Ω/km)
Size (mm2) Construction (No./mm) Outer Diameter (mm)
30
3.5
3/0.32TST + 45/0.32TA
2.6
0.8
3.3
37
2130
5.54
36
3.5
3/0.32TST + 45/0.32TA
2.6
0.8
3.5
40
2520
5.54
42
3.5
3/0.32TST + 45/0.32TA
2.6
0.8
3.7
43
2930
5.54
