Conductor: Stranded electrolytic copper wire Class5, (BS EN 60228:2005);
Insulation: Core insulation made of Cross-Link Polyethylene (XLPE) (DIN VDE 0276-308);
Colour Code: OZ – Black coloured, cores numbered JZ – One green/yellow coloured core and black coloured cores numbered OB / JB – coloured cores acc. to HD 308.1;
Stranding: In layers of optimum pitch;
Wrapping: PES tape;
Screen: AL-PES tape + Tinned copper braiding;
Sheath: PVC (Polyvinyl Chloride) Compound (EN 50363-4-1).
Sheath Colour: Transparent or Black (2XSLCYK)

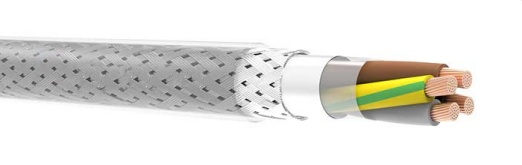

Conductor: flexible, multiwire conductors, stranded of bare annealed copper wires (tin-plated on request);
Insulation: cross-linked polyethylene (XLPE) insulation – black, blue, brown and green-yellow;
Stranding: insulated conductors laid-up in a cable core;
Screen: double screen of aluminium laminated tape and braid of tinned copper wire, braid shield of coverage bigger than 80%;
Sheath: PVC cable sheath of 2XSLCY-J cable, transparent or grey RAL 7001, other colours also available;
PVC cable sheath of 2XSLCYK-J cable, black RAL 9005, other colours also available
Conductor: Stranded Annealed Copper (IEC/EN 60228, Class 5);
Insulation: XLPE (Cross-Linked Polyethylene);
Core Colors: HD 308 S2;
Lay-up：4 cores twisted together;
Separator: Al-PET Foil;
Screen: Tinned Copper Wire Braid;
Outer Sheath: PVC (Polyvinyl Chloride), RAL 9005 – Black (Transparent outer sheath is available upon request);
Reference Standards: Based on IEC 60502-1.

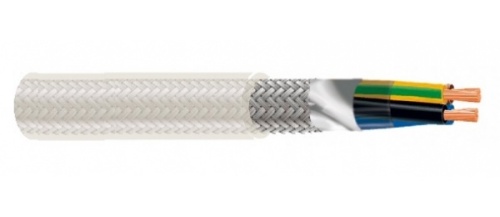

Conductor: Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5;
Core insulation: PE;
Core identification: brown, black, grey, green-yellow;
G = with protective conductor GN-YE
Cores stranded with optimal lay lengths
1. Screen: plastic-coated aluminium foil (St)
2. Screen: braided screen of tinned copper wires, approx. coverage 85%
Outer sheath: Special-PVC
Sheath colour: transparent

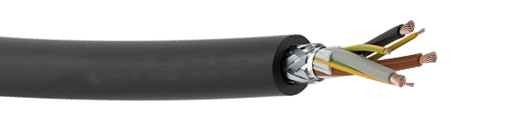

Fine bare copper strands
Strands to VDE-0295 class.5, IEC 60228 Cl-5
Special polyethylene (PE) core
insulation
Color code VDE-0293-308 (HD 308S2)
Ground wire in outer layer
Aluminum foil wrapping over cores
85% tinned copper braid shield
Special black PVC outer jacket
(RAL 9005)
UV-resistant and direct burial
approved
Extremely oil & chemical resistant
