Huadong Cable provide high-voltage power cables with a maximum cross-sectional area of 2, 500mm2 and rated system voltages of up to 220kV. The cables are manufactured from high-quality materials in state-of-the-art facilities and they conform to both national and international quality and safety standards.

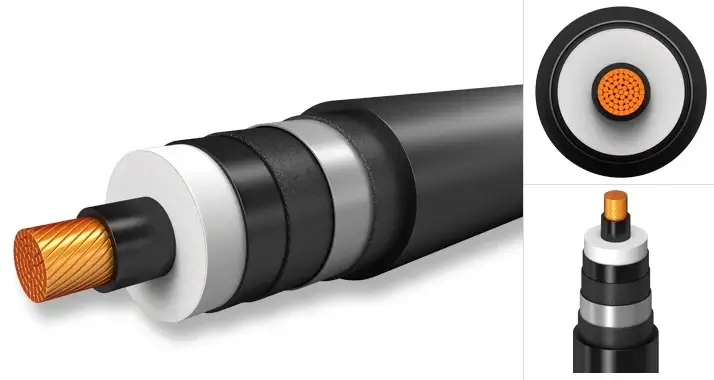

38/220kV Lead Sheath Extra High Voltage Cable

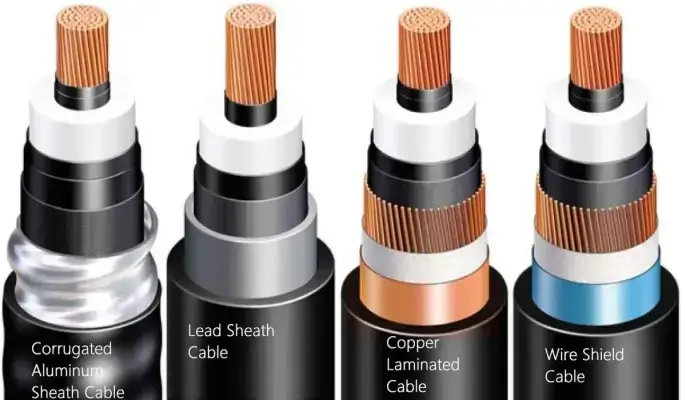

Product Structure
Voltage: 38/66kV, 64/110kV, 76/132kV, 127/220kV
Conductor： Copper/Aluminum
Core: single core
Cross-sectional area: 240mm2~2500mm2
Insulation: XLPE
Inner Sheath: Lead
Outer Sheath: PE or PVC

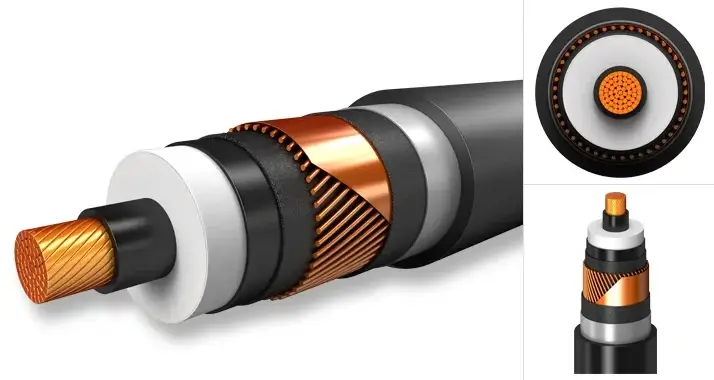

38/220kV Copper Wire Screen PE/PVC Sheath High Voltage Cable
Product Structure
Voltage: 38/66kV, 64/110kV, 76/132kV, 127/220kV
Conductor： Copper/Aluminum
Core: single core
Cross-sectional area: 240mm2~2500mm2
Insulation: XLPE
Screen: copper wire screen
Armored: Aluminum/Copper Laminated Tape
Outer Sheath: PE or PVC

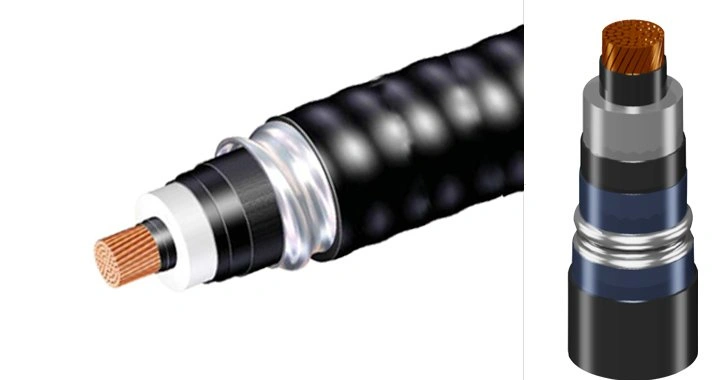

38/220kV Copper Aluminum Corrugated Sheath High Voltage Cable
Product Structure
Voltage: 38/66kV, 64/110kV, 76/132kV, 127/220kV
Conductor： Copper/Aluminum
Core: single core
Cross-sectional area: 240mm2~2500mm2
Insulation: XLPE
Inner Sheath: Corrugated Aluminum
Outer Sheath: PE or PVC
Parameter of 38/66kV Copper Wire Screen AL-Tape PE/PVC Sheath HV Cable
| Nominal Area | Outer sheath thickness (Nominal) | Overall Diameter (Approx.) | App. Weight (Aluminium) | App. Weight (Copper) | Approx. Capacitance |
| mm2 | mm | mm | kg/m | kg/m | μF/km |
| 95 | 2.3 | 48 | 2.2 | 3 | 0.15 |
| 120 | 2.4 | 50 | 2.5 | 3.5 | 0.16 |
| 150 | 2.4 | 51 | 2.8 | 4.1 | 0.16 |
| 185 | 2.5 | 53 | 3.1 | 4.8 | 0.18 |
| 240 | 2.6 | 56 | 3.7 | 5.7 | 0.19 |
| 300 | 2.7 | 59 | 4.3 | 6.3 | 0.2 |
| 400 | 2.8 | 62 | 4.9 | 7.1 | 0.22 |
| 500 | 2.9 | 65 | 5.3 | 8.2 | 0.24 |
| 630 | 3 | 69 | 5.9 | 9.6 | 0.26 |
| 800 | 3.2 | 73 | 6.6 | 11.3 | 0.29 |
| 1000 | 3.3 | 77 | 7.3 | 13.2 | 0.31 |
| 1200 | 3.4 | 84 | 8.4 | 15.6 | 0.36 |
Get quote email: sales@huadongcablegroup.com
Parameter of 127/220kV XLPE Insulated Corrugated Aluminum Sheath EHV High Voltage Cable
| Nominal Area | Alu. sheath thickness (Minimum) | Outer sheath thickness (Nominal) | Overall Diameter (Approx.) | App. Weight (Aluminium) | App. Weight (Copper) | Approx. Capacitance |
| mm2 | mm | mm | mm | kg/m | kg/m | μF/km |
| 400 | 2 | 3.8 | 108 | 8.5 | 10.8 | 0.13 |
| 500 | 2.1 | 3.9 | 112 | 9.3 | 12.2 | 0.14 |
| 630 | 2.1 | 4 | 116 | 10.1 | 13.8 | 0.15 |
| 800 | 2.2 | 4.1 | 121 | 11.2 | 16 | 0.16 |
| 1000 | 2.3 | 4.3 | 126 | 12.3 | 18.3 | 0.17 |
| 1200 | 2.3 | 4.4 | 132 | 13.7 | 20.9 | 0.19 |
| 1400 | 2.4 | 4.5 | 137 | 14.9 | 23.2 | 0.2 |
| 1600 | 2.5 | 4.6 | 141 | 16.1 | 25.5 | 0.21 |
Get quote email: sales@huadongcablegroup.com
Parameter of 76/132kV XLPE Insulated Lead Alloy Sheath HV Cable
| Lead sheath thickness (Minimum) | Outer sheath thickness (Nominal) | Overall Diameter (Approx.) | App. Weight (Aluminium) | App. Weight (Copper) | Approx. Capacitance |
| mm | mm | mm | kg/m | kg/m | μF/km |
| 2.3 | 3.2 | 76 | 9.4 | 11.4 | 0.14 |
| 2.4 | 3.3 | 79 | 10.4 | 12.4 | 0.15 |
| 2.4 | 3.4 | 82 | 11.3 | 13.5 | 0.16 |
| 2.5 | 3.5 | 85 | 12.2 | 15.2 | 0.17 |
| 2.6 | 3.6 | 89 | 13.3 | 17.1 | 0.18 |
| 2.7 | 3.8 | 93 | 14.7 | 19.6 | 0.2 |
| 2.8 | 3.9 | 97 | 16.1 | 22 | 0.22 |
| 2.9 | 4 | 104 | 18.1 | 25.3 | 0.24 |
| 3 | 4.1 | 108 | 19.6 | 27.8 | 0.26 |
| 3.1 | 4.2 | 112 | 20.9 | 30.4 | 0.27 |
| 3.3 | 4.4 | 119 | 23.8 | 35.7 | 0.29 |
