Application
Thesecables are designed for 400Hz systems for power supply of aircraft, computer systems and radar stations. They are suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

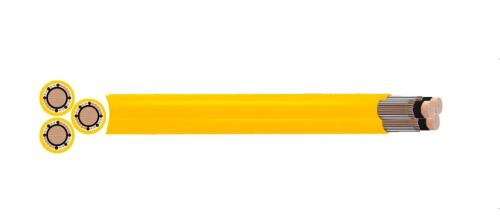

400Hz Airport 3-core With Control Wires Cable
Rated Voltage Uo/U (Um):0.6/1kV
Temperature Rating: Fixed: -40°C to +90°C
Conductor: Class 6 Stranded copper conductor
Insulation: XLEPR (Cross-linked Ethylene Propylene Rubber)
Control Core: 1mm² stranded copper conductor with XLPE insulation
Metallic Screen (Neutral Conductor): Concentric Copper Wires
Cable Assembling: Control cores, neutral conductor and dummy elements around phase conductors
Sheath: PUR (Polyurethane) with abrasion indicators
Sheath Colour: Yellow
STANDARDS:
VDE 0295, IEC 60228

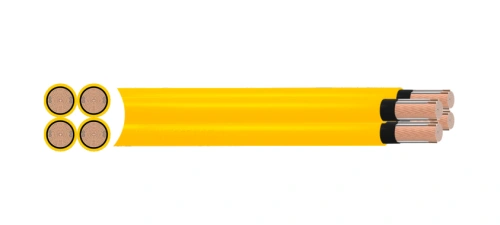

400Hz Airport 4-core With Control Wires Cable
Rated Voltage Uo/U (Um): 0.6/1kV
Temperature Rating: Fixed: -40°C to +90°C
Conductor: Class 5/Class 6 Stranded copper conductor
Insulation: XLEPR (Cross-linked Ethylene Propylene Rubber)
Control Core: 1mm² stranded copper conductor with Polyolefin insulation
Sheath: PUR (Polyurethane)
Sheath Colour: Yellow
STANDARDS: VDE 0295, IEC 60228

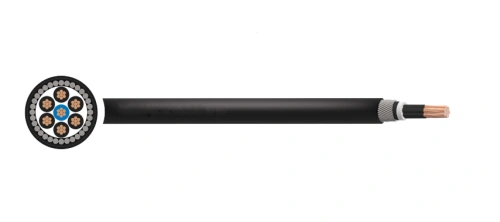

400Hz LSZH Armoured Airport 7-core Cables
Rated Voltage Uo/U: 0.6/1kV
Temperature Rating: Fixed: -40°C to +90°C
Conductor: Class 2 Stranded bare copper conductor
Insulation: XLPE
Inner Sheath: LSZH
Armour: AWA (Aluminium wire armour)
Sheath: LSZH
Sheath Colour: Black
STANDARDS:
BS 6724, BS 5467

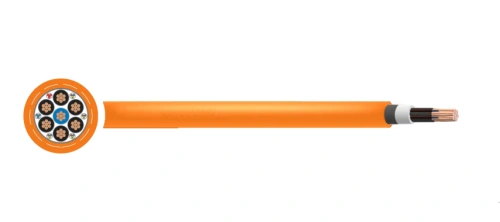

400Hz Airport Cables 7-core With Control Wires & Reinforcement
Rated Voltage Uo/U: 0.6/1kV
Temperature Rating: Fixed: -20°C to +70°C
Conductor: Class 5/Class 6 Stranded bare copper
Insulation: EPR (Ethylene propylene rubber)
Control Core: 1mm² stranded copper conductor with EFTE (Ethylene Tetrafluorethylene) insulation.
Cable Assembly: 6 power cores laid-up over a centre core, control cores laid-up in triads/quads in outer interstices. Each core with overall reinforcement.
Wrapping: Common core covering of wrapping and/or extruded filling compound.
Outer Sheath: PUR (Polyurethane) with integrated open meshed braid
Sheath Colour: Orange
STANDARDS:
VDE 0295, IEC 60228

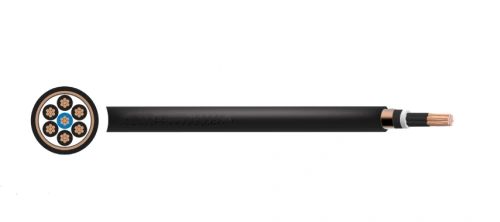

400Hz Airport Cables 7-core With Copper Tape Shield
Rated Voltage Uo/U: 0.6/1kV
Temperature Rating: Fixed: -40°C to +90°C
Conductor: Class 5 Stranded bare copper
Insulation: XLPE
Inner Sheath: PO (Polyolefin)
Shield: Copper tape shield
Sheath: PO (Polyolefin)
Sheath Colour: Black
STANDARDS:
VDE 0295, IEC 60228

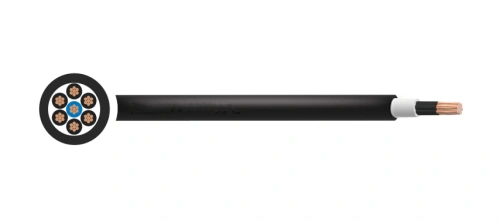

400Hz Airport 7-core with Copper Wire Braid Shield Cable
Rated Voltage Uo/U: 0.6/1kV
Temperature Rating: Fixed: -20°C to +70°C
Conductor: Class 2/Class 5 Stranded bare copper
Insulation: XLPE
Metallic Screen: Bare copper wire braid
Sheath: PVC (Polyvinyl chloride)
Sheath Colour: Black
STANDARDS:
VDE 0271, VDE 0295, IEC 60228
400Hz Airport 7-core Cable
Rated Voltage Uo/U: 0.6/1kV
Temperature Rating: Fixed: -20°C to +70°C
Conductor: Class 5/Class 6 Stranded bare copper
Insulation: EPR (Ethylene propylene rubber)
Control Core: 1mm² stranded copper conductor with EFTE (Ethylene Tetrafluorethylene) insulation.
Cable Assembly: 6 power cores laid-up over a centre core, control cores laid-up in triads/quads in outer interstices. Each core with overall reinforcement.
Wrapping: Common core covering of wrapping and/or extruded filling compound.
Outer Sheath: PUR (Polyurethane) with integrated open meshed braid
Sheath Colour: Orange
STANDARDS:
VDE 0295, IEC 60228
400Hz Airport Single Core With Control Wires Cable
Rated Voltage Uo/U (Um): 0.6/1kV
Temperature Rating: Fixed: -40°C to +90°C
Conductor: Class 6 Stranded copper conductor
Insulation: TPE (Thermoplastic Elastomer)
Control Core: 1mm² stranded copper conductor with TPE (thermoplastic elastomer) insulation.
Sheath: PUR (Polyurethane)
Sheath Colour: Yellow
STANDARDS:
VDE 0295, IEC 60228

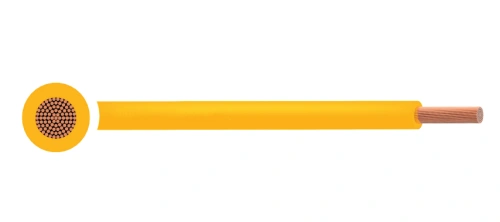

400Hz Airport Single Core Cable
Rated Voltage Uo/U: 0.6/1kV
Temperature Rating: Fixed: -40°C to +90°C
Conductor: Class 5 Stranded copper conductor
Insulation: TPE (thermoplastic elastomer)
Sheath Colour: Yellow
STANDARDS:
VDE 0295, IEC 60228

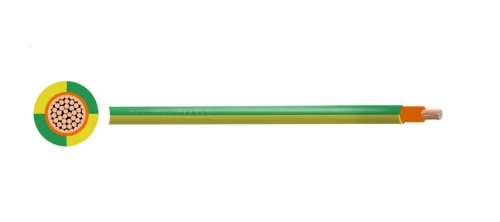

Rated Voltage Uo/U: 0.6/1kV
Temperature Rating: Fixed: -40°C to +90°C
Conductor: Class 5 stranded copper conductor
Insulation: XLEPR (Cross-linked Ethylene Propylene Rubber)
Outer Sheath: PUR (Polyurethane)
Sheath Colour: Green/Yellow
STANDARDS:
VDE 0295, IEC 60228
APPLICATION: These cables are designed to be used for grounding the aircraft in hangars or on passenger bridges, connecting aircraft and mobile refueling systems and provide an equipotential bonding.
| 400Hz Airport 3-core With Control Wires Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | |
| 3 | 35 | 2790 |
| 3 | 70 | 3560 |
| 400Hz Airport 4-core With Control Wires Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | |
| 4 | 35 | 2600 |
| 4 | 50 | 3900 |
| 4 | 70 | 4300 |
| 4 | 120 | 7400 |
| 400Hz LSZH Armoured Airport 7-core Cables | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | |
| 7 | 35 | 3355 |
| 400Hz Airport Cables 7-core With Control Wires & Reinforcement | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | |
| 7+6 | 25+ (3×1) | 2600 |
| 7+6 | 35 + (3×1) | 3100 |
| 7+6 | 25 + (4×1) | 2850 |
| 7+6 | 35 + (4×1) | 3050 |
| 7+6 | 50 + (4×1) | 4030 |
| 400Hz Airport 4-core With Control Wires Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | |
| 7 | 35 | 3450 |
| 7 | 50 | 4660 |
| 7 | 70 | 5930 |
| 400Hz Airport 7-core with Copper Wire Braid Shield Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | |
| 7 | 70 | 6430 |
| 400Hz Airport 7-core Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | |
| 7 | 25 | 2800 |
| 7 | 35 | 3500 |
| 7 | 50 | 4000 |
| 7 | 70 | 5440 |
| 400Hz Airport Single Core Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | |
| 1 | 35 | 430 |
| 1 | 50 | 665 |
| 1 | 70 | 910 |
| 1 | 120 | 1545 |
| 400Hz Single Core Grounding Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | |
| 1 | 16 | 216 |
