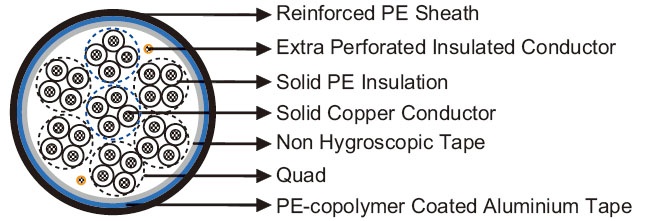

Conductors: Solid annealed copper, 0.9 or 1.4mm nominal diameter
Insulation: Solid polyethylene.
Cabling Element: Four insulated conductors are twisted together to form a quad.
Stranding: Quads are helically stranded in concentric layers. Cables from 7 quads on, have two extra conductors of 0.5mm with perforated insulation (surveillance conductors).
Core Wrapping: Plastic tape(s) with overlapping.
Moisture Barrier: One laminated sheath made of aluminium tape (0.15mm) coated with PE-Copolymer on at least one side is applied with longitudinally overlap.
Outer Sheath: Polyethylene, with reinforced radial thickness.
Minimum Bending Radius: 7.5×OD
Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)
Applications: The cables are designed for transmission of low frequent signals up to 90 KHz through symmetric circuits in railway networks, and are suitable for laying directly into the ground or in ducts.

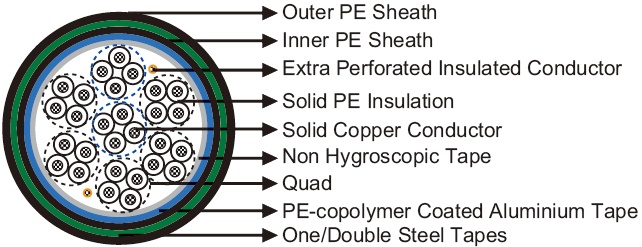

Conductors: Solid annealed copper, 0.9 or 1.4mm nominal diameter
Insulation: Solid polyethylene.
Cabling Element: Four insulated conductors are twisted together to form a quad.
Stranding: Quads are helically stranded in concentric layers. Cables from 7 quads on, have two extra conductors of 0.5mm with perforated insulation (surveillance conductors).
Core Wrapping: Plastic tape(s) with overlapping.
Moisture Barrier: One laminated sheath made of aluminium tape (0.15mm) coated with PE-Copolymer on at least one side is applied with longitudinally overlap.
Inner Sheath: Low density polyethylene.
Electromagnetic Shield: One helically applied steel tape (0.2-0.3mm) or two helically applied steel tapes (0.1mm).
Outer Sheath: Low density polyethylene.
Minimum Bending Radius: 7.5×OD
Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)
Applications: The cables are designed for transmission of low frequent signals up to 90 KHz through symmetric circuits in railway networks, and are suitable for laying directly into the ground or in ducts.
Type Codes
| A– | outdoor cable |
| 2Y | solid PE conductor insulation |
| (L)2Yv | laminated sheath with increased wall thickness |
| B | steel tape armor |
| S | signal cable |
| LG | layer stranding |
| H(n) | operating capacity |
Dimensions and Weight of A-2Y(L)2Yv S(H45)
| Number of Quads | Nominal Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
| 0.9mm Conductor, 1.8mm Insulated Wire | |||
| 1 | 2 | 10 | 95 |
| 3 | 2 | 15 | 200 |
| 5 | 2 | 17 | 280 |
| 7 | 2 | 19 | 360 |
| 10 | 2 | 22 | 480 |
| 14 | 2 | 25 | 620 |
| 20 | 2 | 28 | 830 |
| 30 | 2.2 | 34 | 1200 |
| 40 | 2.2 | 38 | 1550 |
| 1.4mm Conductor, 2.8mm Insulated Wire | |||
| 1 | 2 | 12 | 150 |
| 3 | 2 | 19 | 350 |
| 5 | 2 | 22 | 530 |
| 7 | 2 | 24 | 690 |
| 10 | 2 | 29 | 950 |
| 14 | 2.2 | 33 | 1280 |
| 20 | 2.2 | 39 | 1750 |
| 30 | 2.2 | 46 | 2550 |
| 40 | 2.2 | 53 | 3320 |
Dimensions and Weight of A-2Y(L)2YB2Y S(H45)
| Number of Quads | Nominal Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km | |
| Inner | Outer | |||
| 0.9mm Conductor, 1.8mm Insulated Wire | ||||
| 1 | 1.3 | 1.2 | 12 | 170 |
| 3 | 1.3 | 1.2 | 17 | 310 |
| 5 | 1.3 | 1.2 | 19 | 410 |
| 7 | 1.3 | 1.2 | 21 | 500 |
| 10 | 1.3 | 1.2 | 24 | 640 |
| 14 | 1.3 | 1.2 | 27 | 800 |
| 1.4mm Conductor, 2.8mm Insulated Wire | ||||
| 1 | 1.3 | 1.2 | 14 | 240 |
| 3 | 1.3 | 1.2 | 21 | 490 |
| 5 | 1.3 | 1.2 | 24 | 710 |
| 7 | 1.3 | 1.2 | 26 | 880 |
| 10 | 1.3 | 1.2 | 33 | 1190 |
| 14 | 1.3 | 1.2 | 36.5 | 1550 |
