Applications

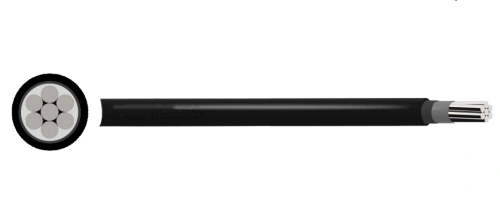

Lightweight LSZH aluminium single core cables for the permanent routing of power inside wind turbine towers. Oil, ozone and UV Resistant.
Rated Voltage Uo/U: 600V
Temperature Rating: -40°C +90°C
Conductor: Class 2 stranded Aluminium
Insulation: HEPR (Hard Ethylene Propylene Rubber)
Inner Covering: Rubber compound
Outer Sheath: PO (Polyolefin) type HXM1
Sheath Colour: Black
STANDARDS:
IEC 60502-1, IEC 60228,
Flame retardant according to IEC 60332-1
Low Smoke Zero Halogen according to IEC 60754, IEC 61034
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA SIZE | NOMINAL WEIGHT |
| mm² | kg/km | |
| 1 | 50 | 266 |
| 1 | 70 | 352 |
| 1 | 95 | 450 |
| 1 | 120 | 556 |
| 1 | 150 | 686 |
| 1 | 185 | 842 |
| 1 | 240 | 1076 |
| 1 | 300 | 1299 |
| 1 | 400 | 1680 |
| 3 | 150 | 2756 |
| 4 | 150 | 3367 |
