Applications

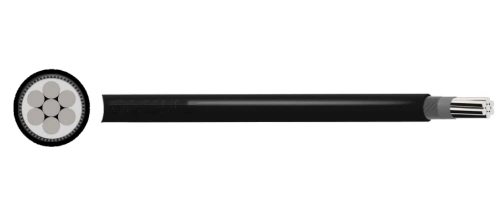

Single core lightweight aluminium conductor turbine power cable with durable halogen-free sheathing for installation inside turbine towers. UV, ozone, water & oil resistant.
Rated Voltage Uo/U: 600V
Temperature Rating: -40°C +90°C
Conductor: Class 2 stranded Aluminium
Insulation: EPR (Ethylene Propylene Rubber)
Screen: TWCB (Tinned wire copper braid)
Sheath: XL-EVA (cross-linked Ethylene-Vinyl Acetate)
Sheath Colour: Black
STANDARDS:
IEC 60502-1, IEC 60228
Flame retardant according to IEC 60332-1, IEC 60332-3
Low Smoke Zero Halogen according to IEC 60754, IEC 61034
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA SIZE | NOMINAL WEIGHT |
| mm² | kg/km | |
| 1 | 150 | 640 |
| 1 | 185 | 770 |
| 1 | 240 | 980 |
| 1 | 300 | 1210 |
| 1 | 400 | 1550 |
