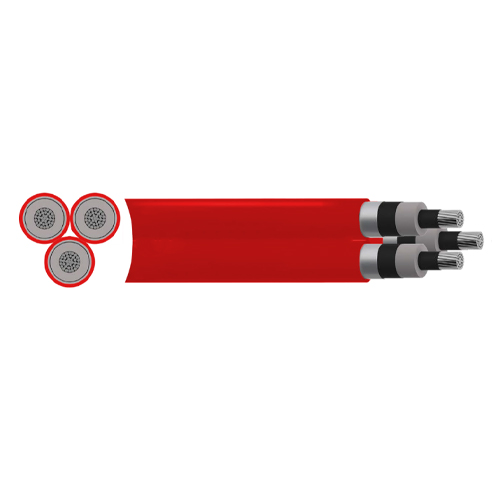

DESCRIPTION: Single core cables with aluminium conductor, reduced thickness XLPE insulation, aluminium tape screen, shock resistant PE outer sheath.
Rated voltages U0/U: 18/30 kV
Conductor: stranded, compacted, round aluminium – Cl. 2 (IEC 60228).
Conductor screen: extruded semiconducting compound.
Insulation: extruded polyethylene (XLPE) compound.
Insulation screen: extruded semiconducting compound – fully bonded.
Longitudinal watertightness: semiconducting water blocking tape.
Screen and radial watertightness: aluminium tape longitudinally applied (nominalthickness: 0,2 mm).
Outer sheath: extruded polyethylene (PE) compound.
Colour: red.
Application: Suitable for fixed installation indoor or outdoor, laying in air or directly or indirectly buried.
Rated voltages U0/U: 12/20 kV, 18/30 kV
Conductor: Class 2 compacted stranded aluminium
Conductor Screen: Semi-conductive XLPE compound
Insulation: XLPE
Insulation Screen: Semi-conductive XLPE compound
Protective Layer: Semiconductive watertight tape
Metallic Screen: Aluminium tape longitudinally applied
Outer Sheath: PE
Outer Sheath Colour: Red
Application: Medium Voltage power cable suitable for laying in underground channels; in underground pipe; in open air; Underground installation with protection is also allowed. Suitable in wind power plants.
Rated voltages U0/U: 12/20 kV
Conductor: Class 2 compacted stranded aluminium
Conductor Screen: Semi-conductive XLPE compound
Insulation: XLPE (Cross-Linked Polyethylene) compound (DIX 8)
Insulation Screen: Semi-conductive XLPE compound
Metallic Screen: Aluminium tape longitudinally applied to each core
Outer Sheath: MDPE (Medium Density Polyethylene) (DMP5)
Outer Sheath Colour: Light Grey
Lay Up: Triplex formation around an Aluminium Messenger Wire
Application: Medium Voltage power cable suitable for use indoors and outdoors. Suitable for fixed installation in free air, on masonry and metal structures, on walkways, pipes, channels and other similar systems. The central aluminium messenger wire aids support.

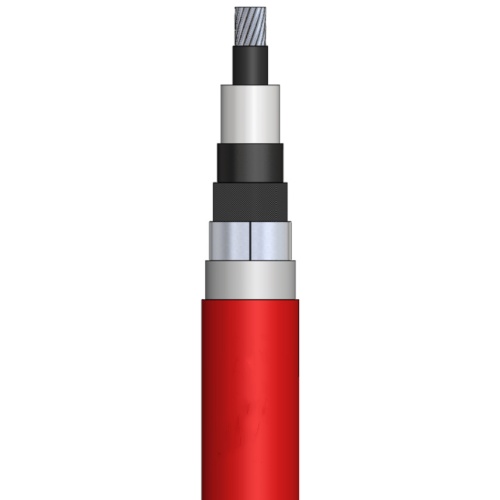

DESCRIPTION: Single core cables with aluminium conductor, reduced thickness XLPE insulation, aluminium tape screen, double shock resistant PE sheath.
Rated voltages U0/U: 18/30 kV
Conductor: stranded, compacted, round aluminium – Cl. 2 (IEC 60228).
Conductor screen: extruded semiconducting compound.
Insulation: extruded polyethylene (XLPE) compound.
Insulation screen: extruded semiconducting compound – fully bonded.
Longitudinal watertightness: semiconducting water blocking tape.
Screen and radial watertightness: aluminium tape longitudinally applied (nominalthickness: 0,2 mm).
First sheath: extruded polyethylene (PE) compound.
Second sheath: extruded polyethylene (PE) compound.
Colour: red.
Application: Suitable for fixed installation indoor or outdoor, laying in air or directly or indirectly buried. The two special sheaths provide an excellent protection against impacts and mechanical stress.
